Multimeter AC/DC CATII 600V

Specification:

Power supply: 9V battery

Display: LCD, range up to 1999

Sampling rate: 2 times per second

Measurement method: A/D double integral converter

Out of range indication: only the number "1" on the screen

Polarity indication: for negative, "-" is displayed

Operating temperature: 0 degrees C ~ 30 degrees C

Storage temperature: -10 degrees C ~ 50 degrees C

Low battery indication: battery icon on screen

Dimensions: 135x67x33mm

Weight with battery: 145g

Dedicated connections: CAT II 600V

DC voltage measurement: 200mV – 1000V

AC voltage measurement: 200V – 750V

DC current measurement: 200uA - 10A

Resistance measurement: 200 – 2MΩ

hFE transistor measurement + diode testing: YES

Acoustic Continuity Tester: YES

Basic accuracy: +/- (0.5% + 2 digits)

The set includes:

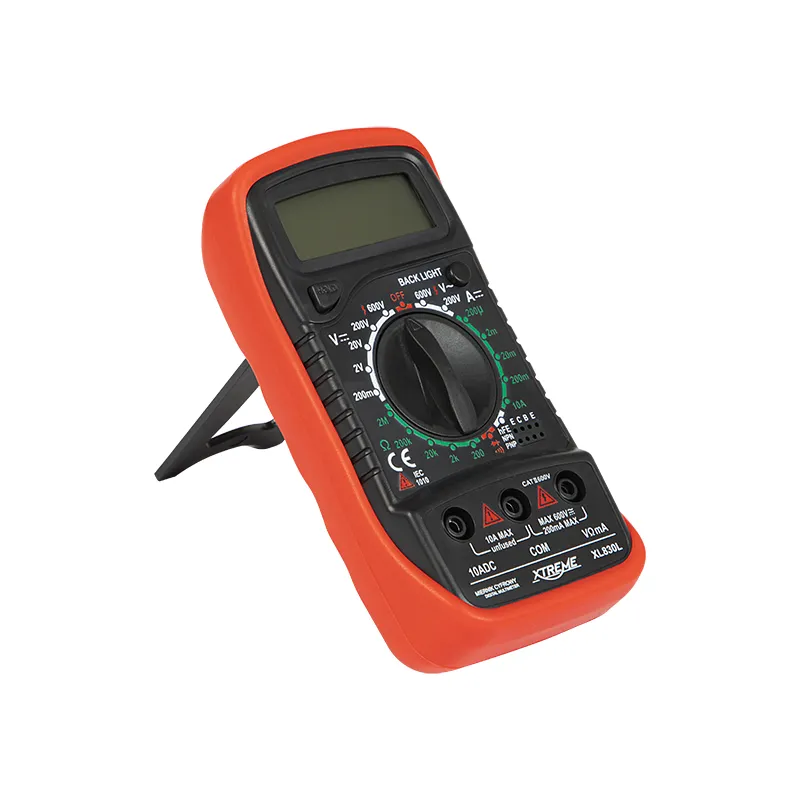

XTREME XL830L Digital Meter + Rubber Case

9V battery

Measuring cables
