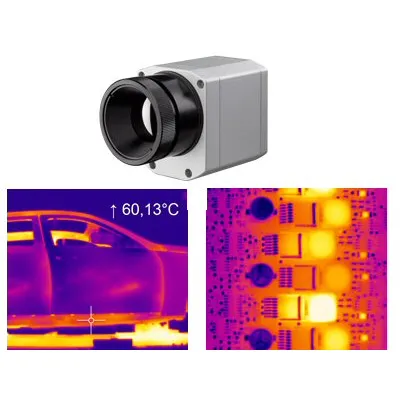

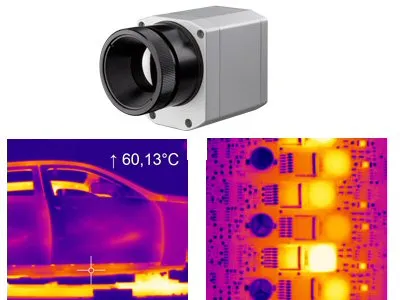

PI640 : industrial thermal imager : 640 x 480 pxl ( Optris )
SKU:OPTPI640
Image is for illustrative purposes only
PI640:
• temperature range: -20...900°C ( -20..+100°C / 0..+250°C / 150.. 900°C )
• accuracy: +-2°C or+-2%
• thermal sensitivity: 75 mK
• radiometric video recording: 32Hz
• resolution: 640 x 480 pxl ; VGA
• real-time video recording
• optics: 33 x 25° FOV
• detector: FPA, ( 17 x 17 µm)
• spectral range: 7,5 ...13 µm
• process interface: PIF - 0...10V input, digital input; 0...10V output
PIF Industrial: 2 x 0-10V input; digital input( 24V); 2x0-10V output; 3x relay (0-30V/400mA)
• computer interface: USB 2.0 ( cable lenght: 1m ( standard )
• ambient temperature: 0...+50°C
• size/weight: 46 x 56 x 90 mm / 320g ; IP67
• power: USB
• tripod mount: 1/4-20 UNC
• software: PI Connect
• includes: camera+ 1 lense; USB cable(1m); tripod; PIF cable+ thermonal block; software PI Connect; aluminium case
• * ask for price & details !
• datasheet : PI640
