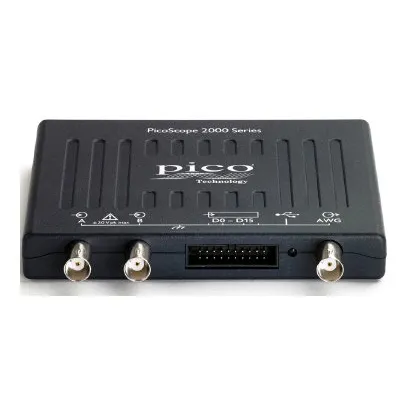

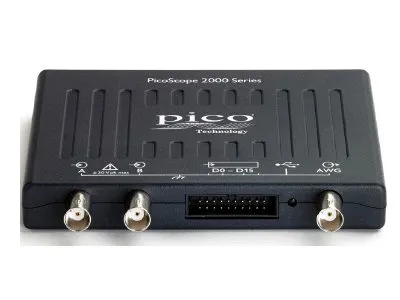

PicoScope 2206B Mixed–Signal Oscilloscope : 2 x 50MHz+ 16 digital ch. ( 50MHz )+ probes ( Pico Technology )

• PQ009 : PicoScope 2206B - 2 channel MSO + 16 channels with FG/AWG, 70 MHz, with probes & accessories
• analog channels: 2
• frequency : 50MHz
• rise time: 7ns
• vertical resolution : 8 bit ( extended : 12 bit )
• input range: +-20mV...20V ( 10 div )
• input sensitivity: 4mV/div ... 4V/div  ( 10 ranges.)
• DC accuracy: +-3%
• digital vertical channels : 16 ( 16 (Port 0: D7–D0 and Port 1: D15–D8) )
  input connector : 2,54mm ( 2 line, 10 pin )
  max. input frequency : 100MHz
  dynamic input range: +-20V
  TTL, ECL, CMOS, PECL, user-defined
• S/R: 1GS/s(analog); 500MS/s(digital); 500MS/s(2 analog/2digital); 250MS/s(other)
• timescale: 1ns.. 5000s/div ( accuracy: +-50ppm )
• buffer memory : 32MS
• triggers: Ch A, Ch B, Digital 0-15
            auto, repeat, single, Rising, falling, dual, hysteresis, window, pulse width,
            window pulse width, window dropout, interval,  logic, delayed, edge
• function generator: sine, square, triangle, ramp, DC voltage, sin(x)/x, Gauss, half-sine , white noise, sweep
  signal frequency: DC ...1MHz ( accuracy: +-50ppm )
  output voltage: 2V DC ( adjustable: 2mV...2V )
• AWG : 20MHz ( buffer : 32kS; 12 bit )
• spectrum analyzer: DC...50MHz
  screen modes: magnitude, peak hold, average
  FFT dots: 120... half of the buffer size
• includes: PicoScope 2206B;  probes( 2 pcs.); software CD ; PicoScope ; USB 2.0 cable

•  More information :PicoScope 2206B
