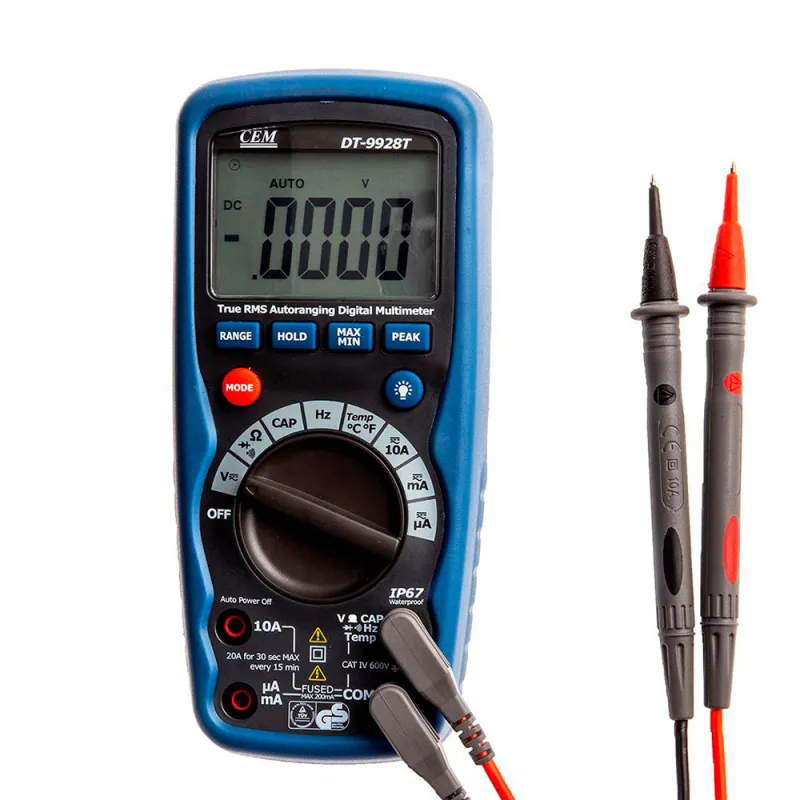

Digital Multimeter

11,000 counts, True RMS measurement, IP67 safe design, Zero setting, Hold maximum / minimum / current values, Auto power off, Peak detector
• Rubberized shock-resistant housing protects the device from various mechanical damage
• Impact-resistant protected design allows the device to work in harsh operating conditions
• Ergonomic and modern design has a support-support for a convenient vertical position
• designed for use both indoors and outdoors
• LCD display backlight
• Auto power off

Measurement limits	600 mV; 6, 60, 600, 1000 V
Accuracy	± (0.09% + 2 digits)
Max. resolution	0.1 mV
In. resistance	7.8 MOhm
Login protection	1000 V
AC voltage
Measurement limits	600 mV; 6, 60, 600, 1000 V
Error	± (0.8% ± 3 digits)
Max. resolution	0.1 mV
Frequency band	50 - 400 Hz
In. resistance	7.8 MOhm
Login protection	1000 V
D.C
Measurement limits	600 μA; 6, 60, 600 mA; 10 A
Error	± (1% ± 3 digits)
Max. resolution	0.01 μA
Login protection	Fuse 0.5 A / 1000 V (input "mA"); 10 A / 1000 V (input "A")
Alternating current
Measurement limits	600 μA; 6, 60, 600 mA; 10 A
Accuracy	± (1.5% ± 5 digits)
Max. resolution	0.01 μA
Frequency band	50 - 400 Hz
Login protection	Fuse 0.5 A / 1000 V (input "mA"); 10 A / 1000 V (input "A")
Resistance
Measurement limits	600 Ohm; 6, 60, 600 kΩ; 6, 60 MOhm
Accuracy	± (0.3% ± 4 digits)
Max. resolution	1 pF
Login protection	1000 V
Capacity
Measurement limits	11, 110, 1100 nF; eleven; 110, 1100 uF
Accuracy	± (3% ± 5 digits)
Max. resolution	1 pF
Login protection	600 V
Frequency
Measurement limits	10, 100, 1000 Hz; 10, 100, 1000 kHz; 10 MHz
Accuracy	± (0.1% + 1 digits)
Max. resolution	0.001 Hz
Login protection	600 V
Pulse duty cycle
Measuring range	0.1 - 99.9%
Accuracy	± (1.2% ± 2 digits)
Max. resolution	0.1%
Login protection	600 V
Temperature
Measuring range	-20 ° C ~ 760 ° C
Accuracy	± (3% ± 3 digits)
Max. resolution	1 ° C
Login protection	600 V
PN test
Max. test current	0.3 mA
Test voltage	1 mV
Login protection	600 V
Ringing the chain
Response threshold	<150 Ohm
Test current	<0.3 mA
Login protection	600 V
general information
Measurement of rms in values	arbitrary waveform
Peak detector	signal duration> 1 ms
Max. displayed number	11000
Display	Liquid crystal 21 mm with backlight
Measurement speed	2 per second
Auto power off	in 30 minutes
Power supply	9 V type "Krona"
terms of Use	0 ° C ~ 50 ° C; rel. humidity: no more than 70%
Storage conditions	-20 ° C ~ 60 ° C; rel. humidity: no more than 80%
dimensions	182 x 82 x 55 mm
Weight	360 g
