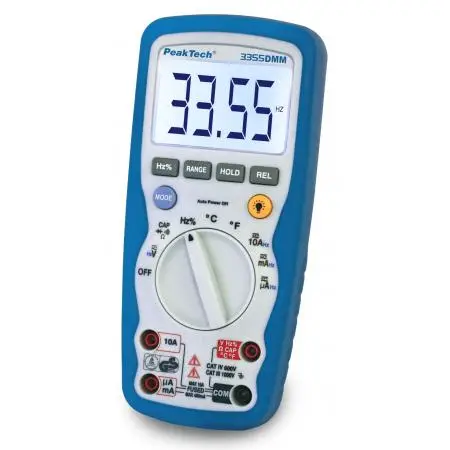

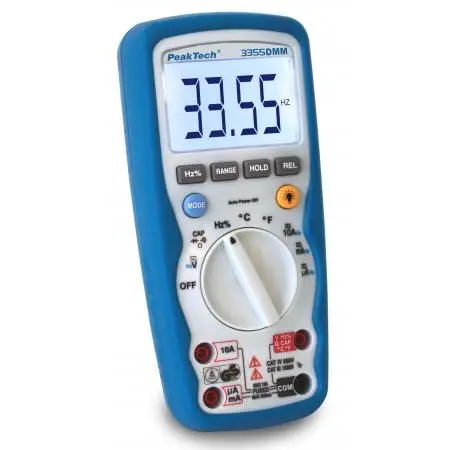

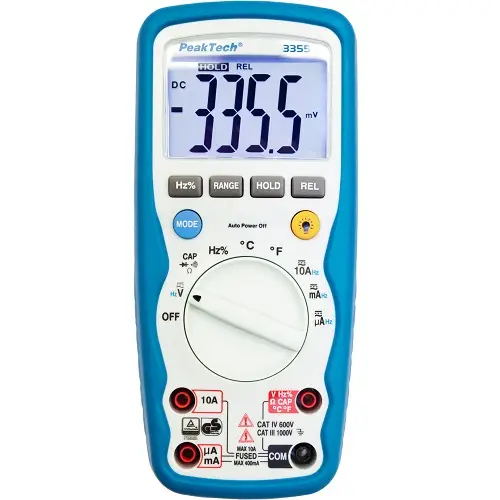

Multimeter Peaktech 3355-ET ACA/DCA/ACV/DCV/R/C/f/t IP67 CAT IV 600V
SKU:PT3355-ET
Manufacturer:PeakTech
Image is for illustrative purposes only
3 3/4 digit, 27 mm LCD display with backlight, max. display 4000
IP67 dust- and waterproof
Relative zero
Continuity- and diode test
Data Hold
Auto- or manual range selection
Auto power off
Safety: TÜV/GS, EN 61010-1; CAT III 1000 V / CAT IV 600 V
IP67 dust- and waterproof
Relative zero
Continuity- and diode test
Data Hold
Auto- or manual range selection
Auto power off
Safety: TÜV/GS, EN 61010-1; CAT III 1000 V / CAT IV 600 V
DCV: 400 mV/4/40/400/1000 V ± 0,5 % + 2 dgt.
ACV: 400 mV/4/40/400/1000 V ± 1,2 % + 3 dgt.;
Frequency range: 50 ... 400 Hz
DCA: 400/4000 µA/40/400 mA/10 A ± 1,0 % + 3 dgt.
ACA: 400/4000 µA/40/400 mA/10 A ± 1,5 % + 5 dgt.
Frequency range: 50 ... 400 Hz
Ohm: 400 Ω/4/40/400 kΩ/4/40 MΩ ± 1,0 % + 2 dgt.
Capacitance: 4/40/400 nF/4/40/200 µF ± 3,0 % + 5 dgt.
Frequency: 10/100/1000 Hz/10/100 kHz/1/10 MHz ± 1,2 % + 3 dgt.
Temperature: -20 ... +760°C (-4 ... +1400°F) ± 3,0 % + 3°C/°F
Operation voltage: 9 V-battery
Dimensions (WxHxD): 85 x 185 x 55 mm
Weight: 400 g
ACV: 400 mV/4/40/400/1000 V ± 1,2 % + 3 dgt.;
Frequency range: 50 ... 400 Hz
DCA: 400/4000 µA/40/400 mA/10 A ± 1,0 % + 3 dgt.
ACA: 400/4000 µA/40/400 mA/10 A ± 1,5 % + 5 dgt.
Frequency range: 50 ... 400 Hz
Ohm: 400 Ω/4/40/400 kΩ/4/40 MΩ ± 1,0 % + 2 dgt.
Capacitance: 4/40/400 nF/4/40/200 µF ± 3,0 % + 5 dgt.
Frequency: 10/100/1000 Hz/10/100 kHz/1/10 MHz ± 1,2 % + 3 dgt.
Temperature: -20 ... +760°C (-4 ... +1400°F) ± 3,0 % + 3°C/°F
Operation voltage: 9 V-battery
Dimensions (WxHxD): 85 x 185 x 55 mm
Weight: 400 g
-
