Image is for illustrative purposes only
TTL Ethernet moodul TCP232-T
SKU: TCP232-T
Product is not available

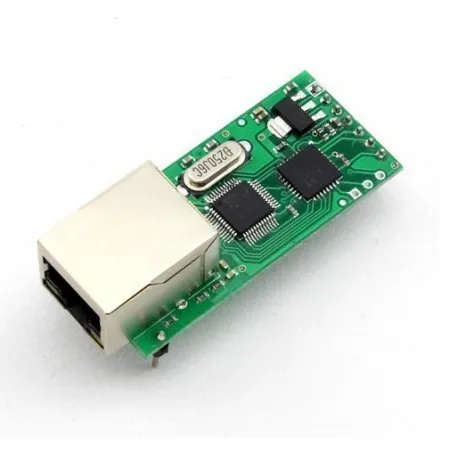

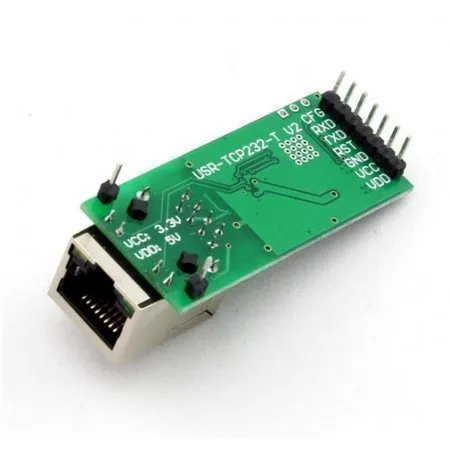

USR-TCP232-T Model pin package, TTL serial port level, of 2KV electromagnetic isolation RJ45 interface, small size TCPIP serial protocol module.
| Power Supply: | VCC 3.3V VDD 5V |
| Working current: | 150 mA (max 200 mA) |
| Serial port level: | TTL level |
| Network interface: | PHY signal |
| Operating temperature: | -25 to 75 ° C |
| Storage temperature: | -40 to 80 ° C |
| Storage humidity: | 5% to 95% RH |
| Module size: | 55*23*23mm（L*W*H） |
