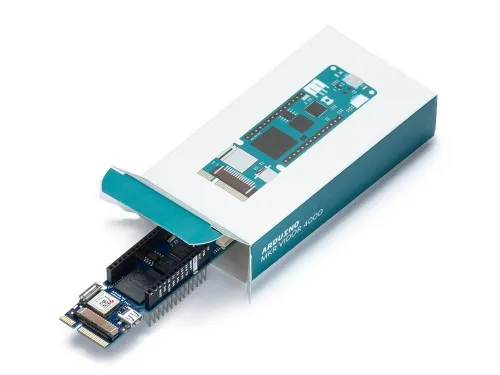

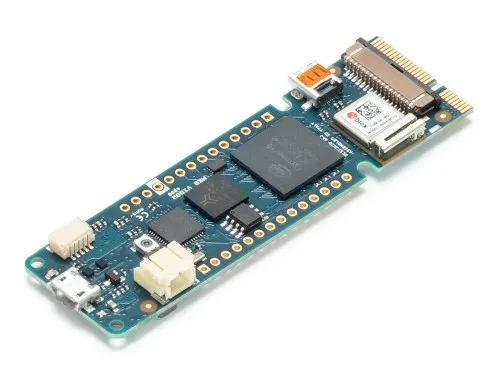

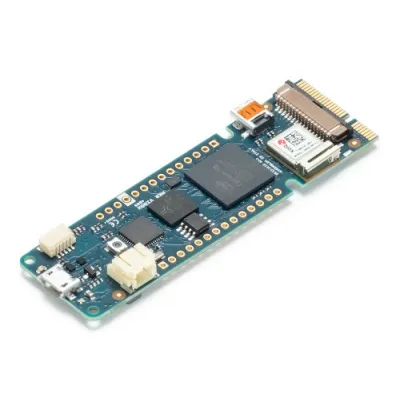

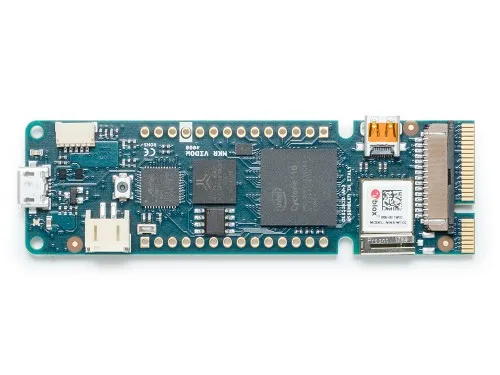

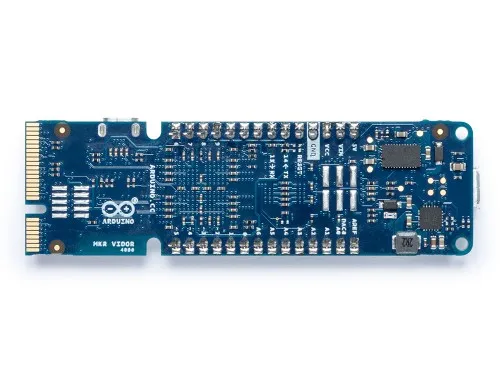

Arduino MKR Vidor 4000 arendusplaat

  • Tootekood: ABX00022-R
  • Arduino
Pealadu
Tallinn, Peterburi tee 90F
0 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
1 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 tk
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 tk

Looking for a board for a very specific use that Arduino doesn’t make? Or maybe you want a more complex central board, optimized for your particular needs that will interface with all other Arduino boards and devices. The MKR VIDOR 4000 is highly configurable and powerful, and it can perform high-speed digital audio and video processing.


With the MKR VIDOR 4000 you can configure it the way you want; you can essentially create your own controller board. It comes loaded with hardware and potential: an 8 MB SRAM; a 2 MB QSPI Flash chip — 1 MB allocated for user applications; a Micro HDMI connector; an MIPI camera connector; and Wifi & BLE powered by U-BLOX NINA W10 Series. It also includes the classic MKR interface on which all pins are driven both by SAMD21 and FPGA. Plus, it has a Mini PCI Express connector with up to 25 user programmable pins.

The FPGA contains 16K Logic Elements, 504 KB of embedded RAM, and 56 18x18 bit HW multipliers for high-speed DSP. Each pin can toggle at over 150 MHz and can be configured for functions such as UARTs, (Q)SPI, high resolution/high frequency PWM, quadrature encoder, I2C, I2S, Sigma Delta DAC, etc.

The on-board FPGA can be also used for high-speed DSP operations for audio and video processing. This board also features a Microchip SAMD21. Communication between FPGA and the SAMD21 is seamless.

FPGA: Intel Cyclone 10CL016
Mini PCI Express port with programmable pins
Camera connector: MIPI camera connector
Circuit Operating Voltage: 3.3V
Digital I/O Pins: 22 headers + 25 Mini PCI Express
PWM Pins: All Pins
UART: Up to 7 (depends on FPGA configuration)
SPI: Up to 7 (depends on FPGA configuration)
I2C: Up to 7 (depends on FPGA configuration)
Analog Input Pins: n/a
Analog Output Pins: n/a
External Interrupts: n/a
DC Current per I/O Pin: 4 or 8 mA
Flash Memory: 2 MB
SDRAM: 8 MB
EEPROM: n/a
Clock Speed: 48 MHz - up to 200 MHz
Video Output: Micro HDMI

Microcontroller:Microchip ATSAMD21 (Arm Cortex-M0+ processor)
Wi-Fi:U-blox Nina-W102
(VIN): 5V
Supported Battery(*): Li-Po Single Cell, 3.7V, 700mAh Minimum
Circuit Operating Voltage: 3.3V
Digital I/O Pins: 22
PWM Pins: 12 (0, 1, 2, 3, 4, 5, 6, 7, 8, 10, A3 - or 18 -, A4 -or 19)
UART: 1
SPI: 1
I2C: 1
Analog Input Pins: 7 (ADC 8/10/12 bit)
Analog Output Pins: 1 (DAC 10 bit)
External Interrupts: 8 (0, 1, 4, 5, 6, 7, 8, A1 -or 16-, A2 - or 17)
Flash Memory: 256 KB
SRAM: 32 KB
EEPROM: No
Clock Speed: 32.768 kHz (RTC), 48 MHz
LED_BUILTIN: 6
Full-Speed USB Device and Embedded Host: Included
LED_BUILTIN: 6
Length: 83 mm
Width: 25 mm
Weight: 32 g
