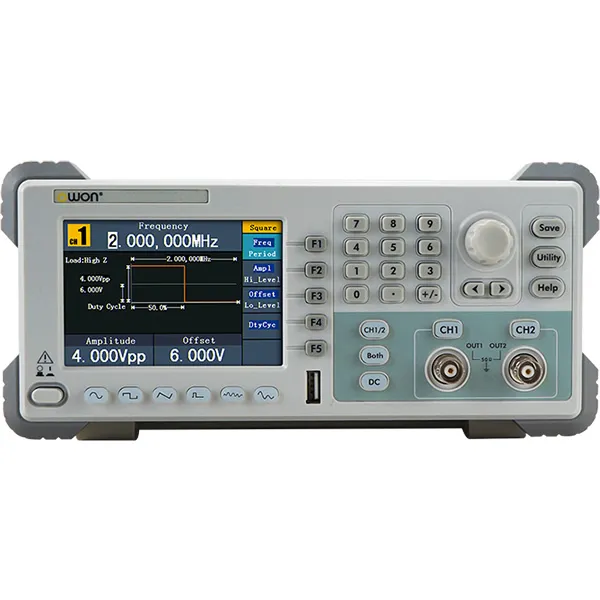

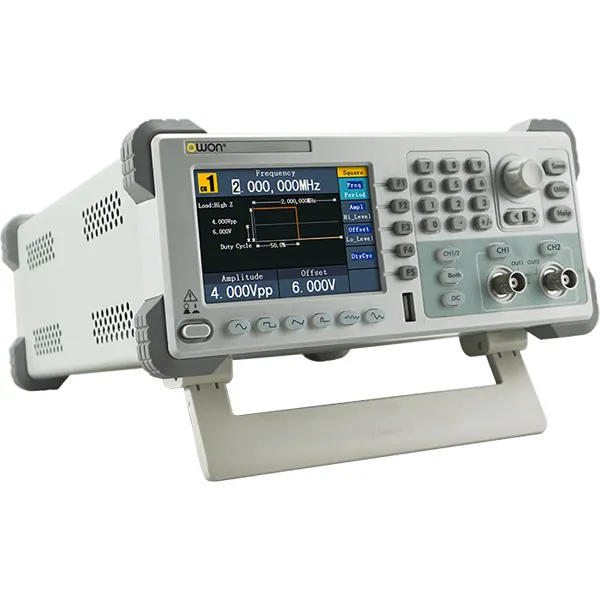

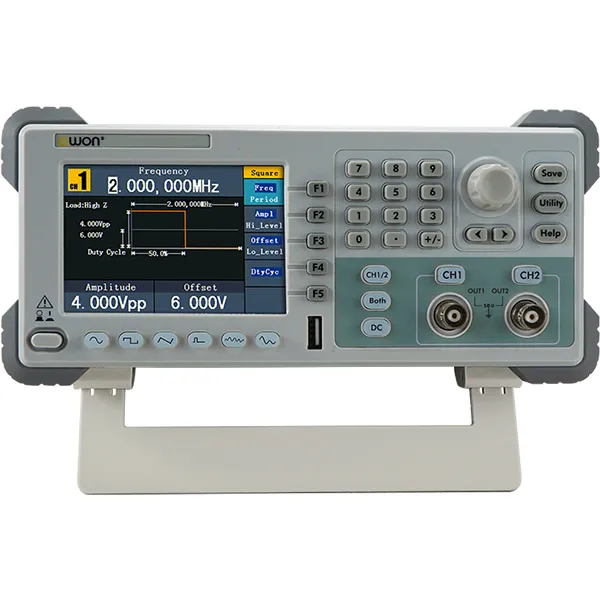

Signaaligeneraator 2ch 1uHz-25MHz LCD AM FM PM FSK SWE

  • Tootekood: AG1022F
  • Owon
Pealadu
Tallinn, Peterburi tee 90F
0 tk
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
0 tk
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
0 tk
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
0 tk
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 tk
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 tk
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
1 tk
OWON's AG1022F 25MHz Dual Channel function generator with advanced DDS technology, 125Ms/s and. The vertical resolution is a high 14 bits. The device can generate the following signals: Sinus, Block, Saw-tooth, Pulse, Noise, Sync, or exponential (rise/decay) or a 32 channel digital wave. It can give a DC output, or modulate with AM, FM, PM, FSK and PWM.

OWON AG1022F Specifications:
- Advanced DDS technology, up to 25MHz frequency output
- 125MS/s sample rate, and 1μHz frequency resolution
- Vertical Resolution: 14 bits, and 8K arb waveform length
- Comprehensive waveform output : 5 basic waveforms, and 45 built-in arbitrary waveforms
- Comprehensive modulation functions:
AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
- SCPI, and LabVIEW supported
- 4" high resolution (480 x 320 pixels) LCD
- Could work with OWON SDS Series DSO smoothly
Model: AG1022F
Channel: dual + trigger
Frequency Output: 25MHz
Sample Rate: 125MS/s
Vertical Resolution: 14 bits
Standard Waveform: Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrar y waveform
Modulation Waveform: AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst
Modulation Frequency: 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Function: Frequency, Period, +Width, -Width, +Duty, and -Duty
Frequency Range: 100mHz ~ 200MHz
Frequency Resolution: 6 digits/s
Modulation Waveform: AM, FM, PM, FSK, ASK, PSK, Sweep, and Burst
Modulation Frequency: 2mHz to 20.00KHz (FSK 2mHz - 100KHz)
Input Impedance: 50 kΩ
Max Input Voltage: 2.2Vpp
Max Output Voltage: 22 Vpp
Output Slew Rate: 10V/us
Max Output Power: 10 W
Input Impedance: 50 kΩ
Display: 4 inch (480 × 320 pixels) LCD

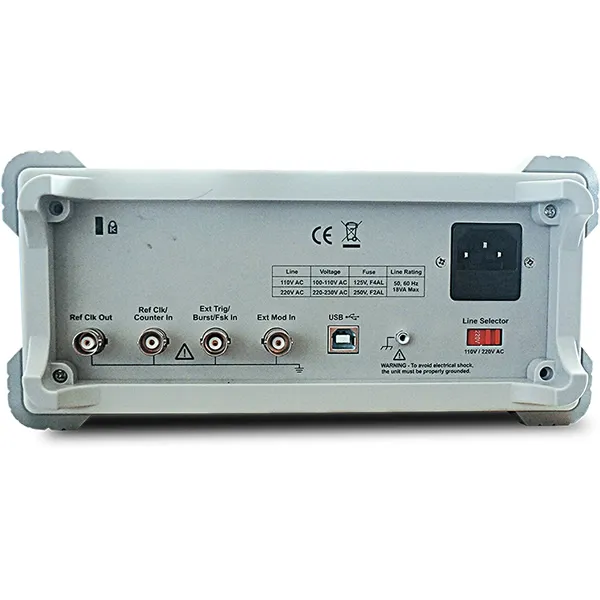

Type: counter external modulation input,external trigger input ,external reference clock input / output
Communication Interface: USB host, and USB device, RS232 (option)
Dimension (W×H×D): 235 × 110 × 295 (mm)
Device Weight: 3.00 kg
OWON AG(F) seeria kasutusjuhend EN892.16KBLae alla
