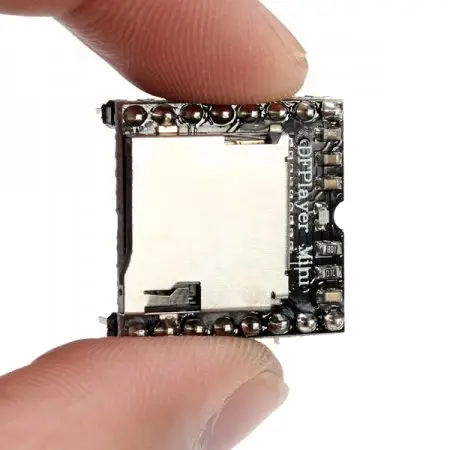

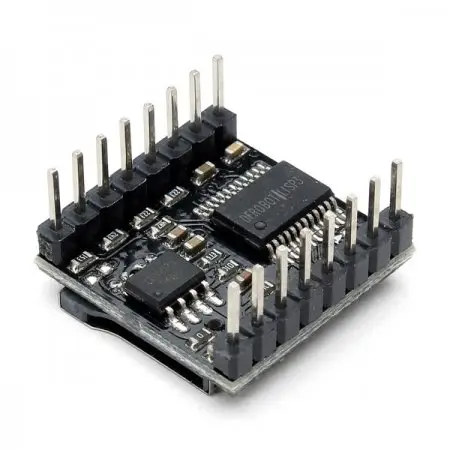

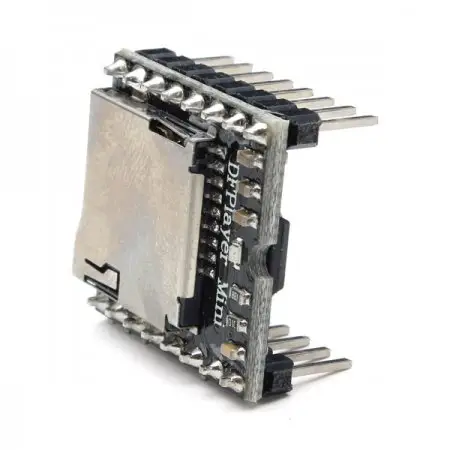

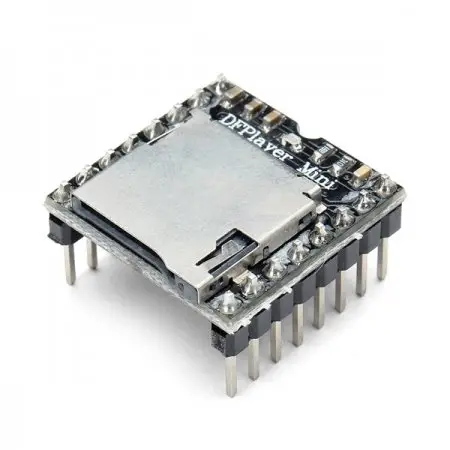

Helimoodul Micro SD 32GB Arduinole MP3 WAV WMA

  • Tootekood: DFPLAY
Peterburi tee Oomipood2
Lõunakeskuse Oomipood1
Tasku keskuse Oomipood1
Helimoodul Micro SD 32GB Arduinole MP3 WAV WMA

- supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
- 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB
- fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH
- a variety of control modes, I/O control mode, serial mode, AD button control mode
- advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play
- audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs
- 30 level adjustable volume, 6 -level EQ adjustable

DFPlayer Mini andmeleht0BLink
DFPlayer Mini Arduino library0BLink
