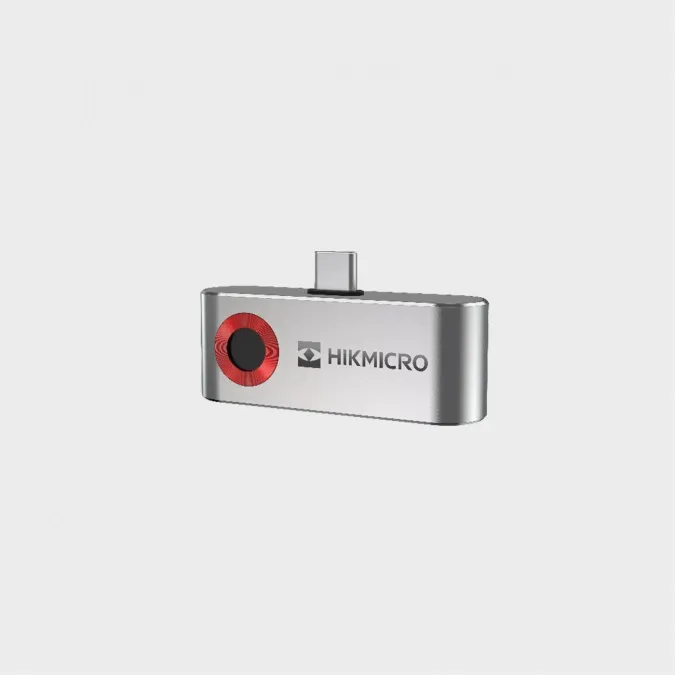

Pilt on illustratiivne
Termokaamera Hikmicro Mini telefonidele 0..+100°С 25Hz USB-C
Toode ei ole saadaval
Hikmicro Mini on nutitelefoni termokaamera moodul, mis võimaldab mõõta naha pinna temperatuuri, inspekteerida elektriseadmeid, otsida probleemi soojustuses ja ka näha objekte pimeduses. Töövahemik 5 °C kuni 100 °C katab ära enamiku igapäeva vajadustest. Varustatuna funktsionaalse nutitelefoni Thermal äppiga, saate maailma vaadata hoopis teisel moel.
HM-TB3317-3/M1-MINI
● 160 × 120 resolutsioon
● NETD < 40 mK (@25°C), F#=1.0
● Täpsus ±0.5 ℃ (30 °C to 45 °C) ; ±2 °C (5 °C to 30 °C, 45 °C to 100 °C)
● USB Type-C liides (Android)
● kompaktne ja kerge - 26 g
Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
IR Resolution 160 × 120 (19 200 pixels)
Pixel Pitch 17 μm
Spectrum Range 8 - 14 μm
NETD < 40 mK (@25°C), F#=1.0
Focal Length 3.2 mm
FOV (Field of View) 50° × 38° (H × V)
Minimum Focus Distance 20 cm
Focus Fixed
Image Frequency 25 Hz
Aperture F1.1
Thermography Function
Accuracy ±0.5 °C (30 °C to 45 °C) ; ±2 °C (5 °C to 30 °C, 45 °C to 100 °C)
Range 5 °C to 100 °C
Shutter Automatic/Manual
General
Power Powered by Smartphone
Phone Android (USB Type-C Interface)
Working Temperature 15 °C to 35 °C
Non-Operating Temperature -20 °C to 60 °C
Protection Level IP40
Mechanical shock Drop from 1 m
Weight 26 g
Dimension 54.1 mm × 15 mm × 27.5 mm
Power Consumption 300mW
APP
Measurement Presets Hot Spot, 1 User Preset Point, 1 User Preset Box, Off
Color Palettes Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain
Video Format MP4
Image Format JPEG
