Pilt on illustratiivne

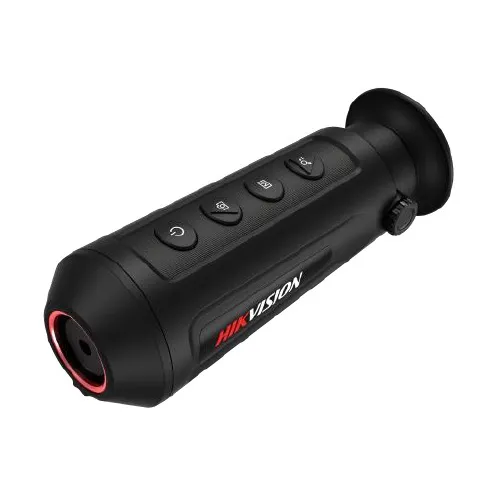

Termo-öövaatluskaamera monokkel, 6.2mm, Hikvision
Toode ei ole saadaval
- Tundlik 160×120, 17 μm sensor pakub head pilti.
- Termokaamera tööulatus kuni 219 meetrit.
- T-Vision rakenduse kaudu saab nutiseadet kasutada välise ekraanina.
Sensor: VOx Uncooled Focal Plane Arrays
Resolutsioon: 160 × 120
Hz: 50Hz
Piksli suurus: 17µm
lainepikkus: 8µm – 14µm
NETD: alla 35 mK (@ 25 ° C, F # = 1.1)
Focal length: 6.2mm
IFOV: 2.74 mrad Angle of
Vaateväli: 24.7 ° × 18.7 ° (H × V)
Aperture: F1.1
Magnification: 0.6 to 2.4
Laadimispinge: 5 VDC / 2 A, 1.5 W, Type-C USB
Töötemperatuur: -20 ° C to 55 ° C
Kaitseklass: IP67
Mõõdud: 158.3×61×57 mm
Kaal: 250 g
Laetav li-ioonaku
Tööaeg: 10 tundi (@ 25 ° C) 7.5h koos Wi-FI hotspotiga.
SD card: integreeritud (8 GB)
Salvestamine: pildid ja videod
Wi-Fi: jah
Ooterežiim: jah
Ekraan: 0,2″ LCOS, 720 × 540 värviline
Seaded: white hot, black hot, red hot, fusion
Päästik: auto, manual, väline
Digitaalne suurendus: 1 ×, 2 ×, 4 ×
Hot Track: jah
Image Sensor
VOx Uncooled Focal Plane Arrays
Resolution
160×120
Frame Rate
50Hz
Pixel Interval
17μm
Response Waveband
8μm to 14μm
NETD
Less than 35 mK (@25°C),F#=1.1
Focal Length
6.2mm
IFOV
2.74 mrad
Field Of View
24.7° × 18.7° (H × V)
Aperture
F1.1
Image Display
Monitor
0.2 inch, LCOS, 720 × 540
Palettes
Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode
Auto, Manual, External Correction
Digital Zoom
1 ×, 2 ×, 4 ×
Smart Function
Hot Track
Yes
System
Storage
Built-in memory module (8 GB)
Record Video
Yes
Capture Snapshot
No
Wi-Fi
Yes
Standby Mode
Yes
Power Supply
Battery Type
Rechargeable Lithium Battery
Battery Operating Time
10 hours continuous running with CVBS and Wi-Fi hot spot off (@25°C)
7.5 hours continuous running with CVBS and Wi-Fi hot spot on (@25°C)
Battery Capacity Display
Yes
General
Power
5 VDC/2 A, 1.5 W, Type-C Interface
Work Temperature/Humidity
From -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
Protection Level
IP67
Dimension
158.3 mm × 61 mm × 57 mm (6.23" × 2.40" × 2.24")
250 g (0.55 lb)
