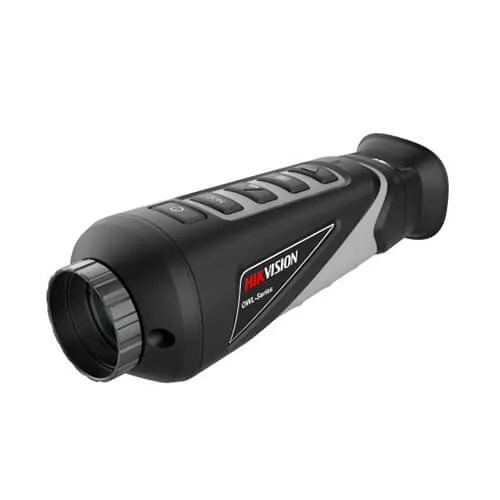

Termo-öövaatluskaamera monokkel, 25mm, Hikvision

Image Sensor

VOx Uncooled Focal Plane Arrays

Resolution

384×288

Frame Rate

50Hz

Pixel Interval

17μm

Response Waveband

8μm to 14μm

NETD

Less than 35 mK (@25°C),F#=1.0

Focal Length

25mm

Field Of View

14.88° × 11.19° (H × V)

Aperture

F1.0

Magnification

1.7 - 13.6

Image Display

Monitor

0.39 inch, OLED, 1024 × 768

Palettes

Black Hot, White Hot, Red Hot, Fusion

FFC (Flat Field Correction) Mode

Auto, Manual, External Correction

Digital Zoom

1x,2x,4x,8x

Smart Function

Hot Track

Yes

System

Storage

Built-in memory module (16 GB)

Record Video

Yes

Capture Snapshot

No

Wi-Fi

Yes

Standby Mode

Yes

Power Supply

Battery Type

Rechargeable Lithium Battery

Battery Operating Time

7 hours continuous running with Wi-Fi hot spot function off (@25°C)

5.5 hours continuous running with Wi-Fi hot spot function on (@25°C)

Battery Capacity Display

Yes

General

Mounting

UNC 1/4' - 20

Hardware Interface

Type-C USB

Power

5 VDC/2 A

Power Consumption

1.5 W

Work Temperature/Humidity

From -30°C to 55°C (-22°F to 131°F); Humidity: 90% or Less

Protection Level

IP67

Vibration & Shock

MIL-STD-810F

Drop Test Height

2 m (6.56 feet)

Dimension

189 mm × 73.7 mm × 66 mm (7.44" × 2.90" × 2.60")

460 g (1.01 lb)
