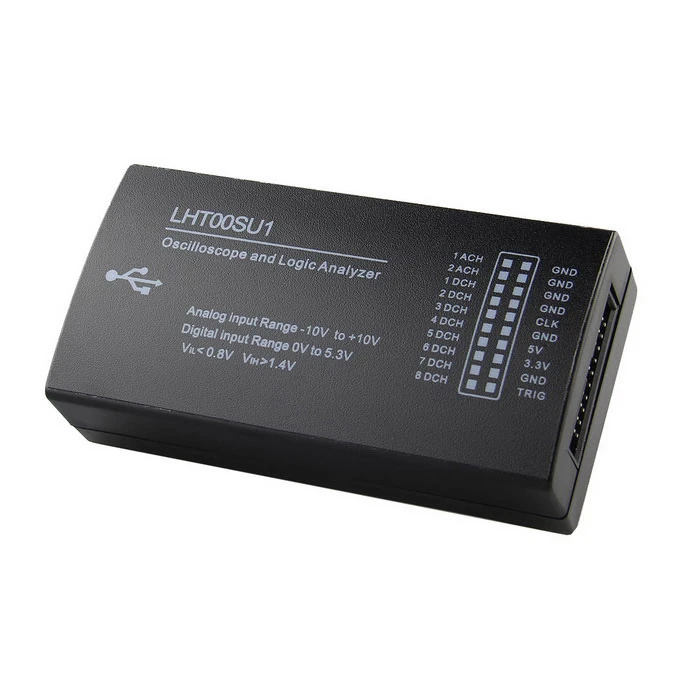

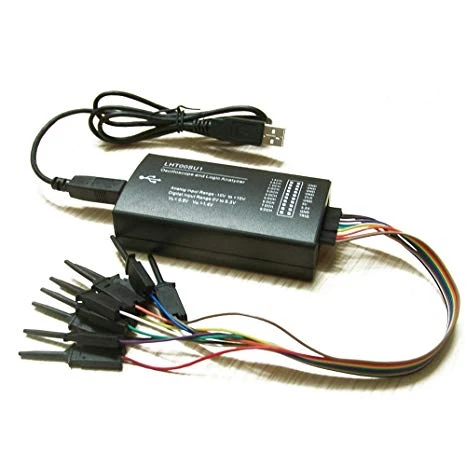

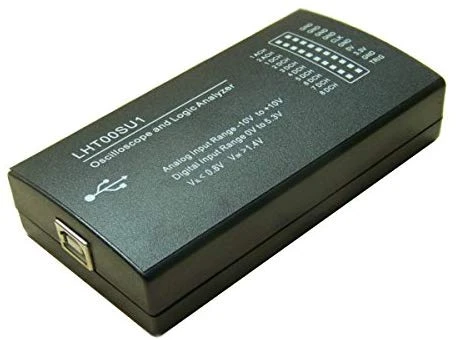

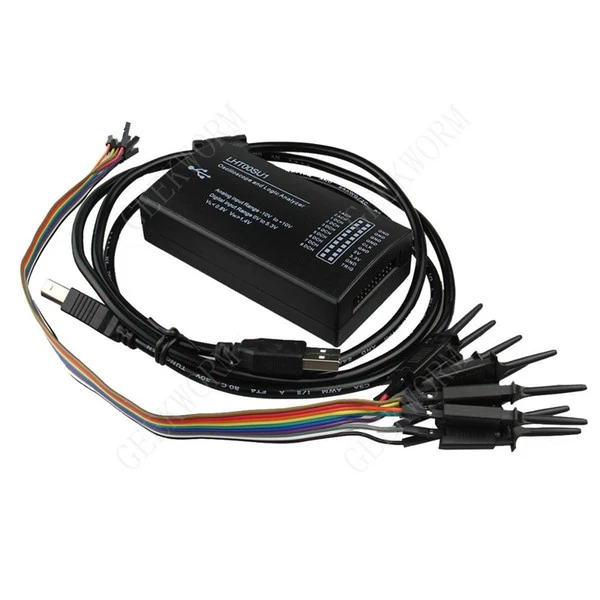

Virtuaal ostsilloskoop-analüsaator 16Msps, 3MHz, 8ch,10V

  • Tootekood: LHT00SU1
Pealadu, Peterburi tee 90F, Tallinn 1
Järve keskuse Oomipood, Pärnu mnt. 238, Tallinn 1

Dual input oscilloscope (single, 16Msps, 3MHz bandwidth). It also has dual channel voltmeter, frequency meter, remote controller PWM controller, frequency generator, I2C controller, pulse/edge counter and other functions.

Standard parameters: The maximum sampling frequency is 16MHz, the maximum analog bandwidth is 3MHz, and the input voltage range is -10V~+10V. The sensitivity is 78mV and the maximum vertical resolution is 256 levels.

8 digital channels + 1 analog channel logic analyzer, support for multiple protocol I2C controllers, pulse/edge counters, mixed signal oscilloscopes and logic analyzers.

The virtual oscilloscope analyzer supports the operating system Win2000/XP/Vista/WIN7, Celeron 4 2.0G or Pentium 4 1.8G or higher processor. Requires USB2.0 high-speed interface, does not support USB2.0 full speed or USB1.1, you need to install Framework 3.5 SP1.

USBee Suite Pro and Standard Software (32-bit And 64-Bit)0BLink
