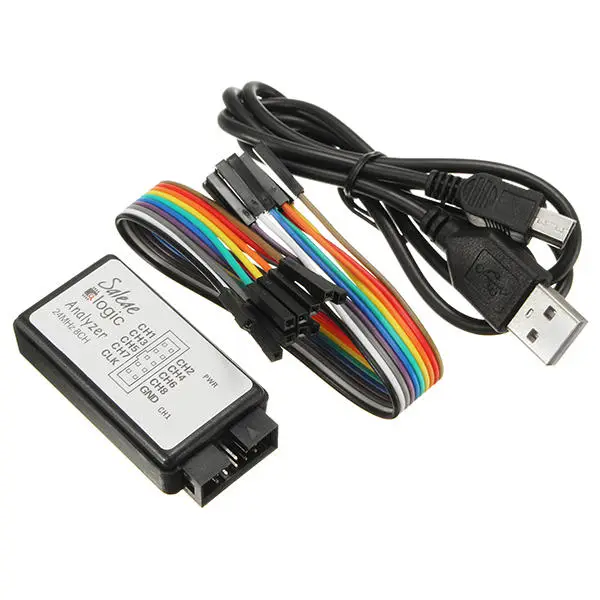

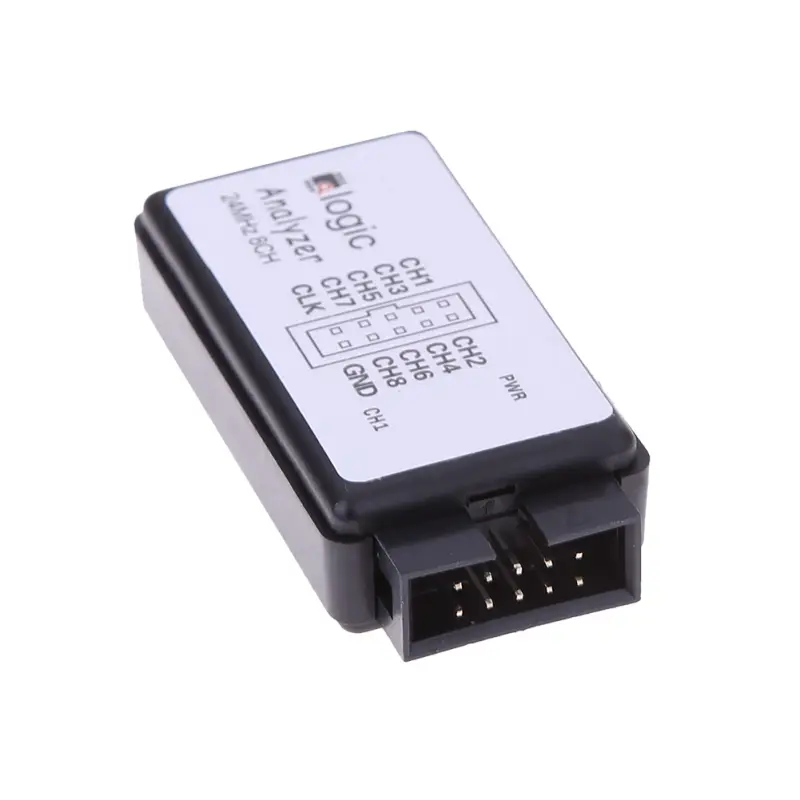

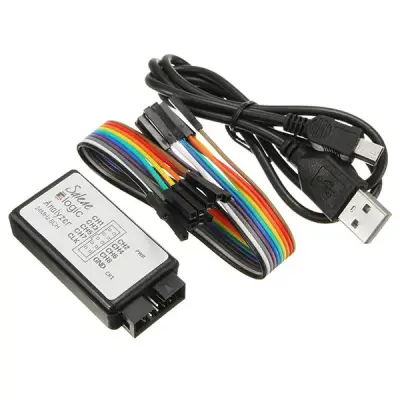

Loogika analüsaator 24MHZ 24M/s 8 kanalit 5.5V
- Tootekood: LOG-AN20
Logical channel sampling rates up to time of 24M/seconds. Application about 10M in General, sufficient to meet a variety of uses. Logic 8 input-can be collected. signal analysis, sampling such as I2C,UART.
Logic can sample up to 10 billion, let you capture even the most elusive of the event. Protection logic input resistors, overvoltage protection and buffer chips. Better protection of safety equipment.
- Logic: 5V voltage, received 5.25 V
- Standard CMOS logic threshold 0.8V low level. 2.0Vlogic high.
- Input impedance of approximately 1m ohm or more
- Size: approx. 55*23*13mm/2.16*0.9*0.51''

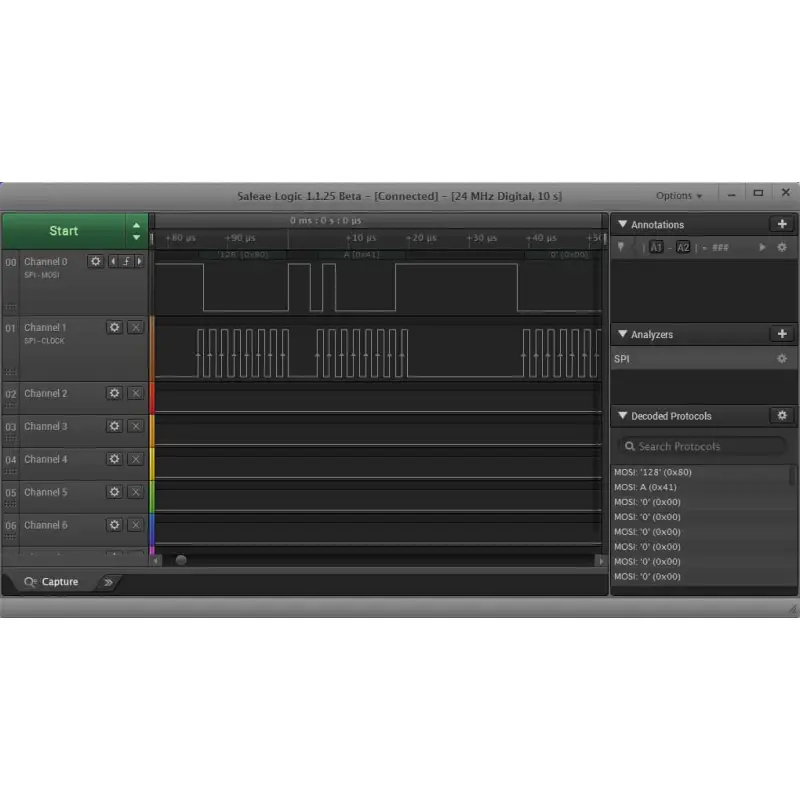

|Logic analyzer software||0B||Link|
