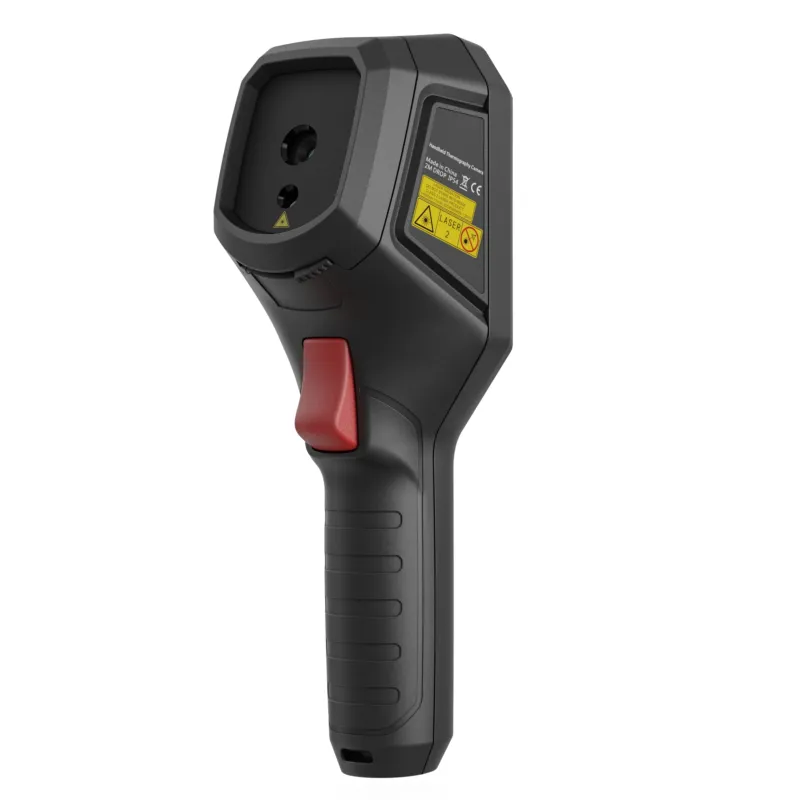

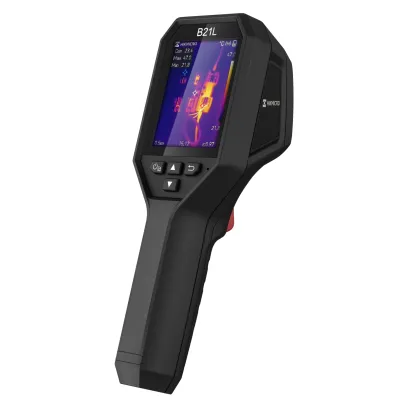

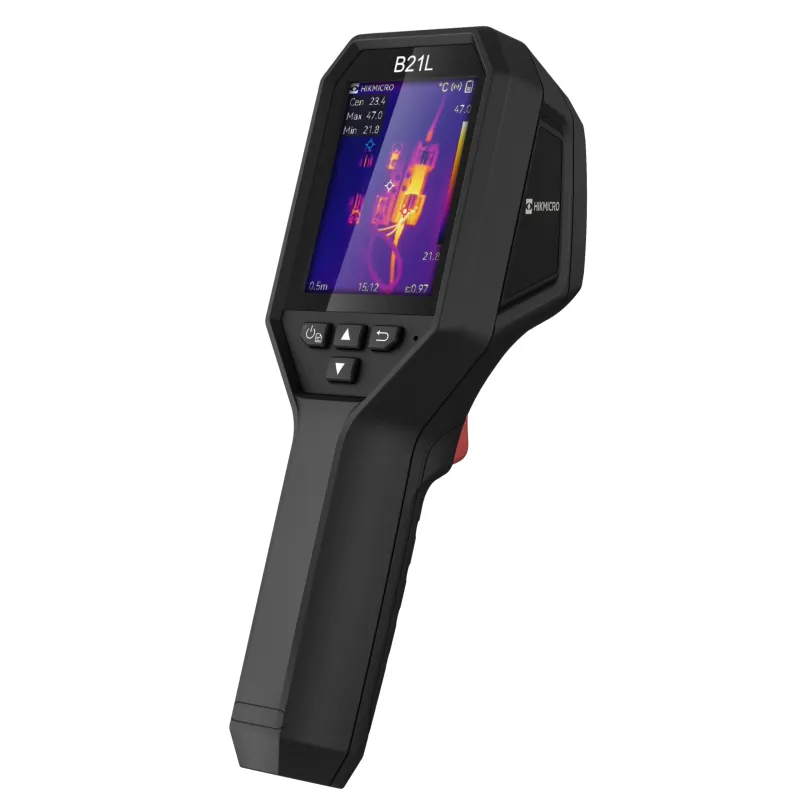

Termokaamera B21L
Tootekood:HM-TP52-3AQF/W-B21L
Pilt on illustratiivne
B SERIES: Compact easy to use thermal imaging camera for daily operation
Enhanced Thermal Clarity with SuperIR: HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
High Image Quality: Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.
4 Images Modes: Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)
Full-screen Precise and Wide Temperature Measurement: Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity: Connect to mobile devices via built-in Wi-Fi and the HIKMICRO
Viewer App to quickly share your images.
Innovative Macro Mode: Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm: Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency: 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
3.2" Color LCD: 3.2" LCD provides a 75% larger screen than other products in the category.
HIKMICRO Analyzer Software: Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Enhanced Thermal Clarity with SuperIR: HIKIMICRO B series features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images.
High Image Quality: Features a highly sensitive (NETD < 40 mK) VOx detector, along with optimized image enhancement algorithms to provide clear thermal images.
4 Images Modes: Thermal, Fusion, PIP, and Optical modes to suit your preferred view. (B11 and B20 only)
Full-screen Precise and Wide Temperature Measurement: Supports capture of full-screen radiometric images and automatically tracks max/min/center spots to pinpoint temperature anomalies at a glance. Accurately measures temperatures from -20°C to 550°C ( -4°F to 1022°F) with a temperature accuracy up to +/-2°C (+/-3.6°F) or +/-2% of reading.
Wi-Fi Connectivity: Connect to mobile devices via built-in Wi-Fi and the HIKMICRO
Viewer App to quickly share your images.
Innovative Macro Mode: Using a clip-on macro lens, the B series cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.
High Temperature Alarm: Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.
Fast Image Frequency: 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.
3.2" Color LCD: 3.2" LCD provides a 75% larger screen than other products in the category.
HIKMICRO Analyzer Software: Included software offers flexble ways (points, lines, rectangles, circles, polygons) to analyze thermographic info of captured pictures, and generate reports.
Product Model: B21L
IR Resolution: 256 × 192 (49,152 pixels)
NETD: < 40 mK (@ 25 °C, F#=1.0)
Image Frequency: 25 Hz
Detector Pitch: 12 μm
Spectral Range: 7.5 to 14 μm
Focal Length: 3.6 mm
F-number: F1.0
Field of View (FOV): 37.2° × 50.0°
Spatial Resolution (IFOV): 3.3 mrad
Focus Mode: Focus Free
SuperIR: Yes, on captured thermal images
Min. Focus Distance: 0.3 m (0.98 ft)
Display: 240 × 320 Resolution, 3.2”LCD Screen
Image Modes: Thermal
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion
Color Alarm: Above alarm
Object Temperature Range: -20°C to 550°C (-4°F to 1022°F)
Accuracy: Max. (± 2°C/3.6°F, ± 2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
Measurement Tools: Center Spot, Hot Spot, Cold Spot
User-definable: 3 spots
Level and Span Mode: Auto/Manual
Storage Media: Built-in 16 GB flash memory
Image Storage Capacity: Approx. 90,000 Images
Wi-Fi: 802.11 b/g/n (2.4GHz)
USB Interface: USB Type-C
Battery Type: Rechargeable Li-ion battery
Battery Operating Time: Approx. 6 hours
Battery Charging Time: Approx. 3 hours fully charged
Protection Level: IP54
Drop Test Height: 2 m (6.56 ft)
Working Temperature Range: -10°C to 50°C (14°F to 122°F)
Storage Temperature Range: -20°C to 60°C (-4°F to 140°F)
Relative Humidity: < 95% non-condensing
Weight: Approx. 380 g (0.84 lb)
Dimension: 221.7 × 73.5 × 123.8mm (8.73 × 2.89 × 4.87 in)
Tripod Mounting: UNC ¼”-20
Laser: Yes, Class II
