Pilt on illustratiivne

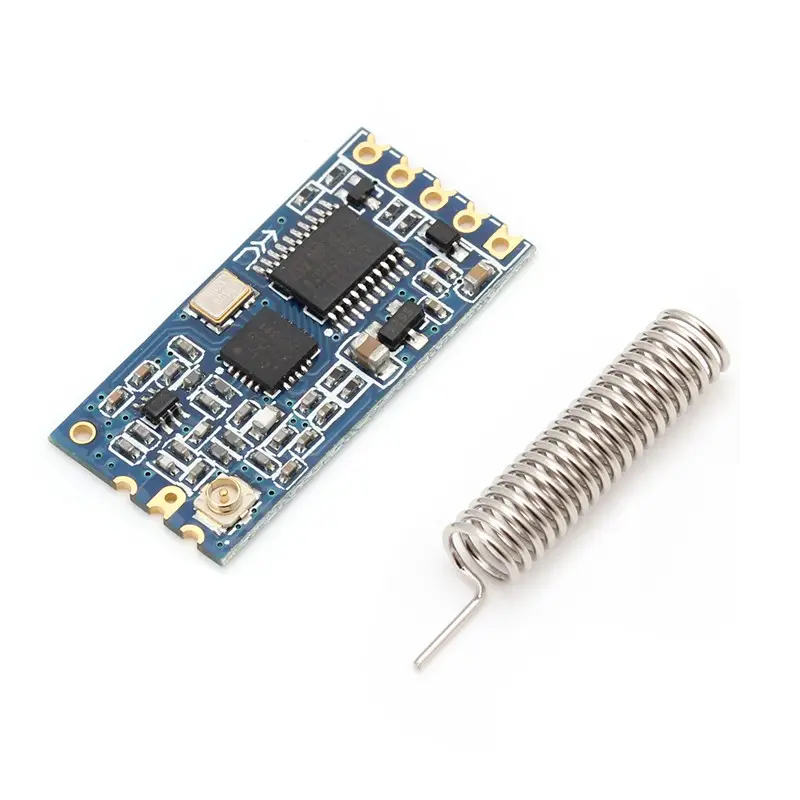

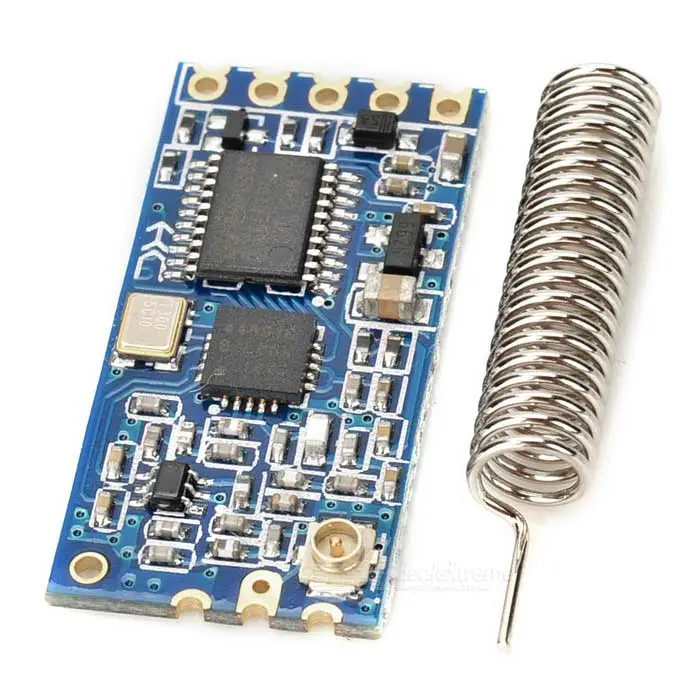

433MHz moodul HC-12 SI4463 1km

  • Tootekood: SI4463-HC12
Pealadu, Peterburi tee 90F, Tallinn 3
Lõunakeskuse Oomipood, Ringtee 75, Tartu 1
Pargi keskuse Oomipood, Puru tee 1, Jõhvi 1
433MHz moodul HC-12 SI4463 1km

 - Supply voltage 3.2V ~ 5.5V. (If you want to work in the module launch state for a long time, it is recommended when the supply voltage exceeds 4.5V series with a 1N4007 diode, to avoid heating module built LDO)
- Default communication distance (open test): about 600m (adjustable to achieve the maximum communication distance of 1000m, the air baud rate 5000bps).
- The default idle current: 16MA (modules in different operating current of the different operating modes).
- Module Size: 27.8mm × 14.4mm × 4mm.
- Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power (can be set)
- The module supports software upgrades. (We provide customers with software upgrades)
- The default factory settings: operating mode FU3, baud rate 9600bps, communication channel CH001 (433.4M).

PS: HC-11 can not be connected to communicate with the HC-12, they work independently, in pairs.

HC-12 SI4463 andmeleht ENG281.76KBLink
