SKU:OKY3028
Manufacturer:
Okystar
Image is for illustrative purposes only

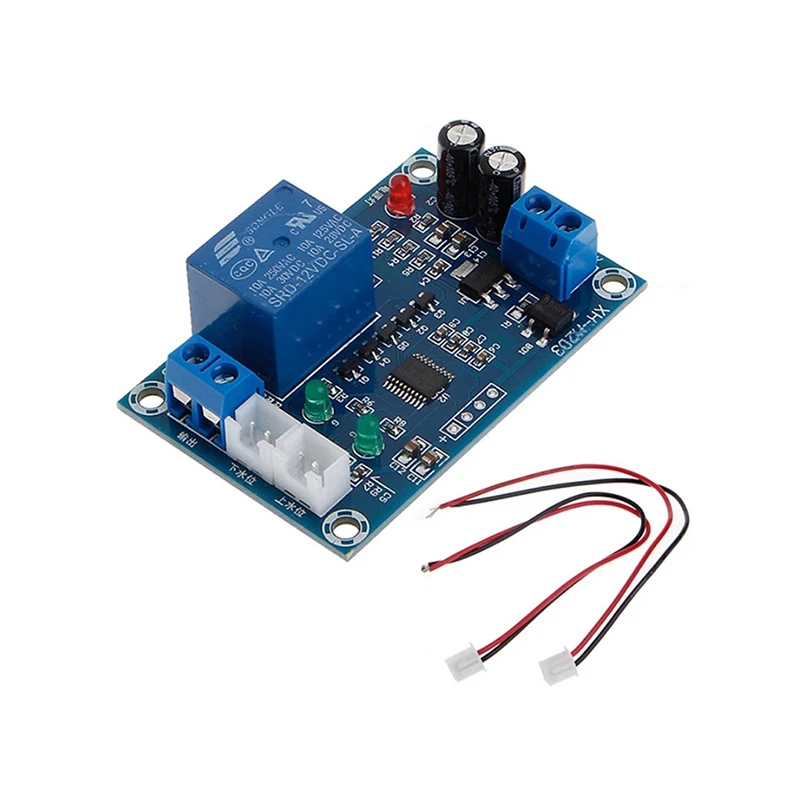

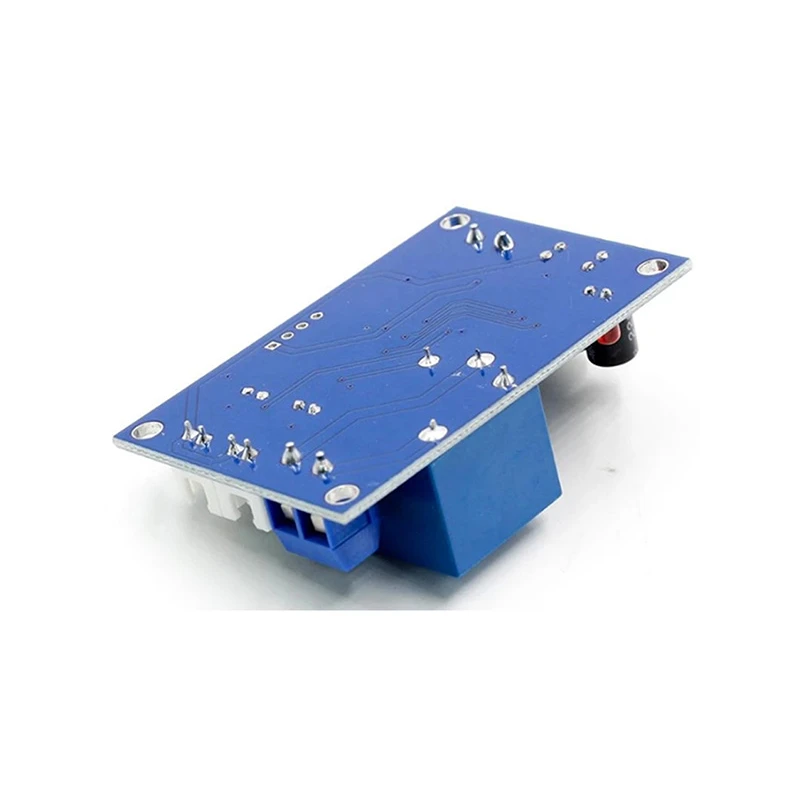

The OKY3028 (XH-M203) is a fully automatic water level controller module. It is designed to reliably manage a connected pump or valve to maintain a consistent liquid level within a container.
Key Features
Automated Pumping Control: When the liquid level falls below the lower sensor, the onboard relay closes to activate a pump or open a valve.
Automatic Shut-off: Once the liquid reaches the upper sensor, the relay opens, deactivating the pump to prevent overflow.
Sensor-Based Operation: The module functions using external water level sensors (probe-electrodes) for accurate detection. Please note: sensors are not included with this module.
Applications
This controller is well-suited for a range of automated water management projects. Common uses include maintaining levels in water towers, storage tanks, and ponds, as well as integration into water conservation systems.
Key Features
Automated Pumping Control: When the liquid level falls below the lower sensor, the onboard relay closes to activate a pump or open a valve.
Automatic Shut-off: Once the liquid reaches the upper sensor, the relay opens, deactivating the pump to prevent overflow.
Sensor-Based Operation: The module functions using external water level sensors (probe-electrodes) for accurate detection. Please note: sensors are not included with this module.
Applications
This controller is well-suited for a range of automated water management projects. Common uses include maintaining levels in water towers, storage tanks, and ponds, as well as integration into water conservation systems.
Model: XH-M203
Operating Voltage: AC/DC 12V
Output Capacity: 10A
Output Type: relay output
Control Type: fully automatic
Switched Load: 10A at 250V AC or 30V DC

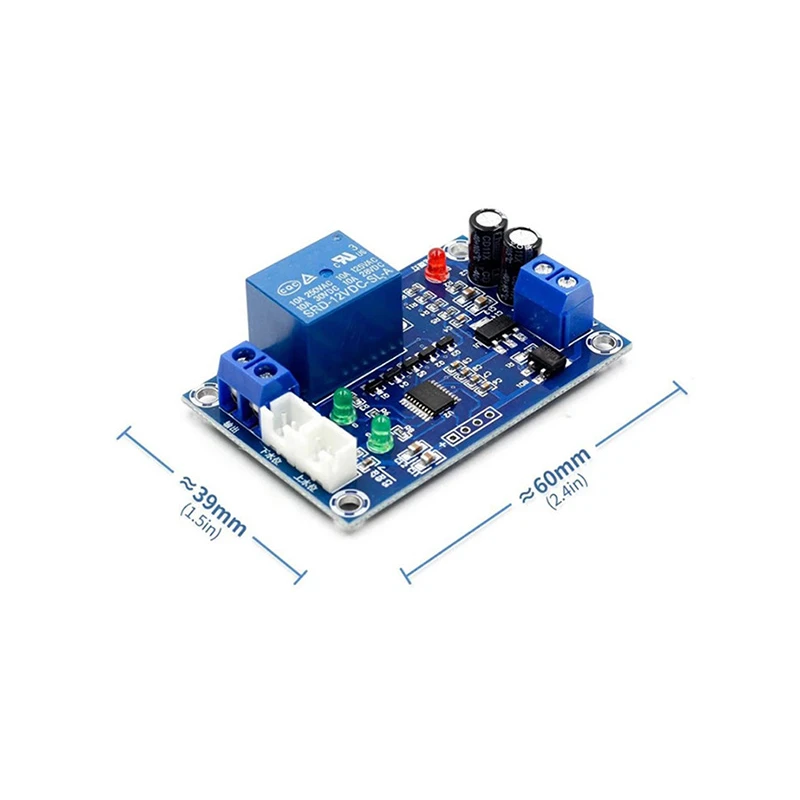

Dimensions: 6 x 3.8 cm
Mounting: M3 screw holes
Operating Voltage: AC/DC 12V
Output Capacity: 10A
Output Type: relay output
Control Type: fully automatic
Switched Load: 10A at 250V AC or 30V DC
Dimensions: 6 x 3.8 cm
Mounting: M3 screw holes
-
