PC connected oscilloscope PICOSCOPE 2204A-D2 10MHz Channels: 2 8kpts 20V 0÷50°C
Product is not available

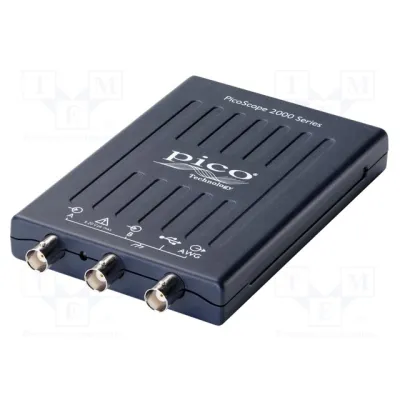

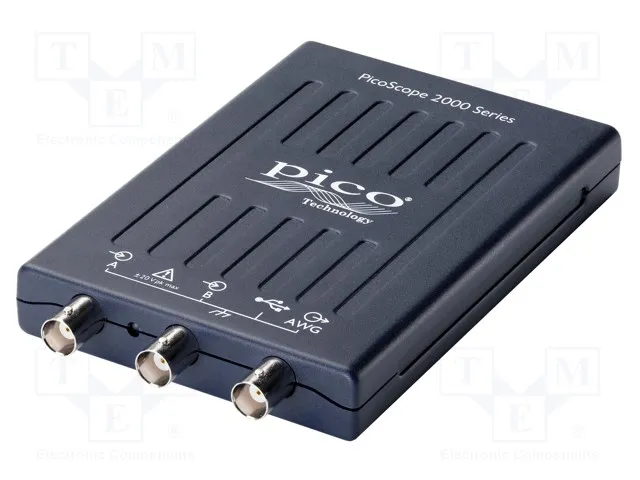

PicoScope 2204A-D2 PC Oscilloscope 2 channels with FG/AWG, 10MHz, NO PROBES
Like a benchtop oscilloscope, only smaller and better.
Up to 200 MHz bandwidth
1 GS/s sampling
Advanced digital triggers
Arbitrary waveform generator
Serial decoding
USB powered
Ultra compact design
Powerful, portable, and versatile
The PicoScope 2200A Series oscilloscopes offer a small, light, modern alternative to bulky benchtop devices. You can now fit a 200 MHz, 1 GS/s instrument easily in your laptop bag! They are perfect for engineers on the move; ideal for a wide range of applications including design, test, education, service, monitoring, fault finding, and repair.
A small form factor is not the only benefit of these PC-based scopes. With our PicoScope 6 software, high-end features such as serial decoding and mask limit testing are included as standard. New functionality is regularly delivered through free upgrades, optimized with the help of feedback.
Manufacturer
Pico Technology
Type of oscilloscope
PC connected oscilloscope
Band
10MHz
Number of channels
2
Memory record length
8kpts
Sampling
2Gsps (in equivalent time),
100Msps (in real time)
Converter resolution
8bit
Max. input voltage
20V
Input coupling
AC, DC
Time base
10n...5ks/div
Dimensions
142x92x18.8mm
Weight
200g
Power supply
from USB port
Producer guarantee (months)
60
Operating system
Linux,
Mac OS,
Windows 7,
Windows 8,
Windows 10
Operating temperature
0...50°C
Rise time
35ns
Series
PicoScope 2000
Information
set does not contain test probes
Standard equipment
software
USB cable
Additional functions
arbitrary waveform generator
function generator
Measuring instrument features
12bit high resolution mode
15 serial protocols analyse, including CAN, I2C, I2S, LIN, SENT, SPI and UART/RS-232
automatic measurements function
defined part of displayed signal zoom
FFT analysis
free Software Development Kit available
generation of Microsoft Excel file with recorded data
handheld design
LabVIEW driver
mask testing
math channels
powerful tripping system
programmable alarm thresholds
segmented memory function
working with software with mouse and keyboard or touch screen
X-Y operation mode
Brutomass: 376.8 g
