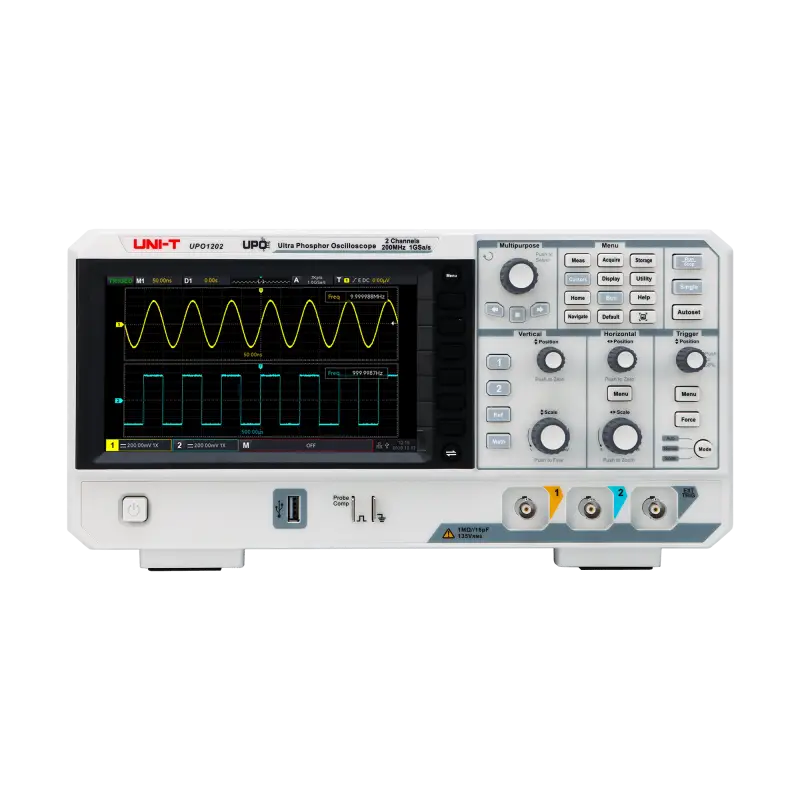

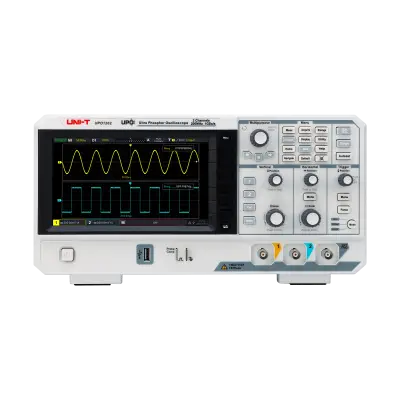

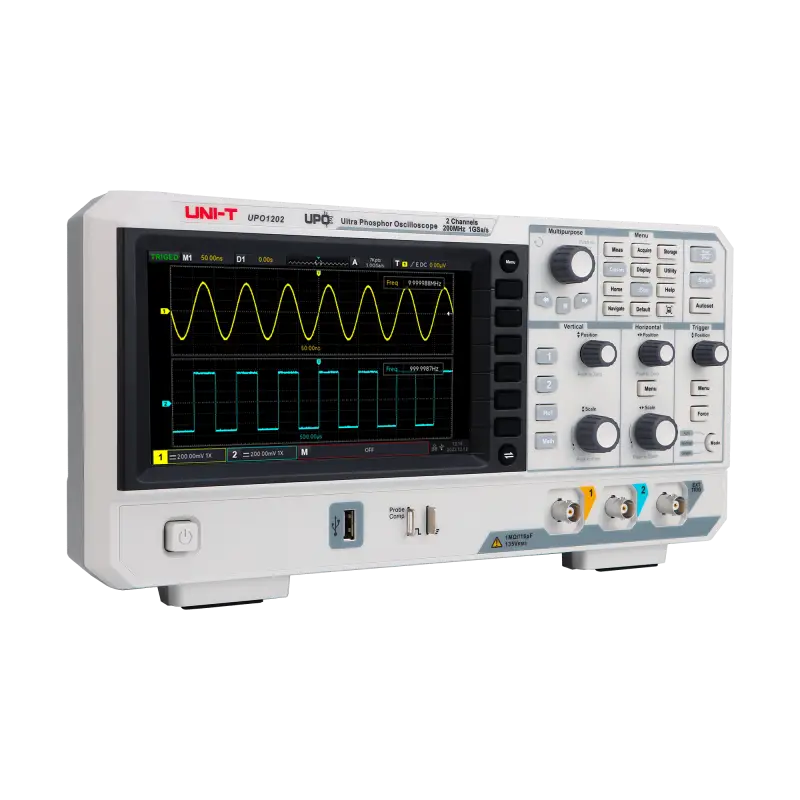

Uni-T UPO1202 Oscilloscope

MAIN PARAMETERS
Analog Bandwidth: 200 MHz
Rise Time: <=1.8 ns
Number of Channels: 2
Sampling Rate: 1 GS/s
Memory Depth: 56 Mpts (1 channel)
Waveform Capture Rate: 500,000 wfms/s
Time Base: 5 ns/div~50 s/div
Input Impedance: (1MOhm ±2%) II (20 pF ±3 pF)
Vertical Sensitivity: 1 mV/div~20 V/div (1M?)
DC Gain Accuracy: <=±3%
Waveform Recording: 120,000 frames
Trigger Modes: Edge, pulse width, runt, window, N-edge, delay, timeout, duration, setup/hold, slope, video, code
Serial Bus Decoding Options: RS232/UART, I2C
Waveform Operations: A+B, A-B, AxB, A/B, FFT, logic operations, advanced
Automatic Measurement of 27 Parameters: Peak-Peak, Amplitude, Maximum, Minimum, Top, Bottom, Mean, Middle, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, Overshoot, Preshoot, Frequency, Cycle, Rise Time, Fall Time, Positive Pulse, Negative Pulse, Positive Duty Ratio, Negative Duty Ratio, Delay A->B (Rising edge), Delay A->B (Falling edge), Delay B->A (Rising edge), Delay B->A (Falling edge).
Result Display Types: 5 results simultaneously
Measurement Statistics: Average, Max, Min, standard deviation, measurement number
Frequency Window: 6 bits

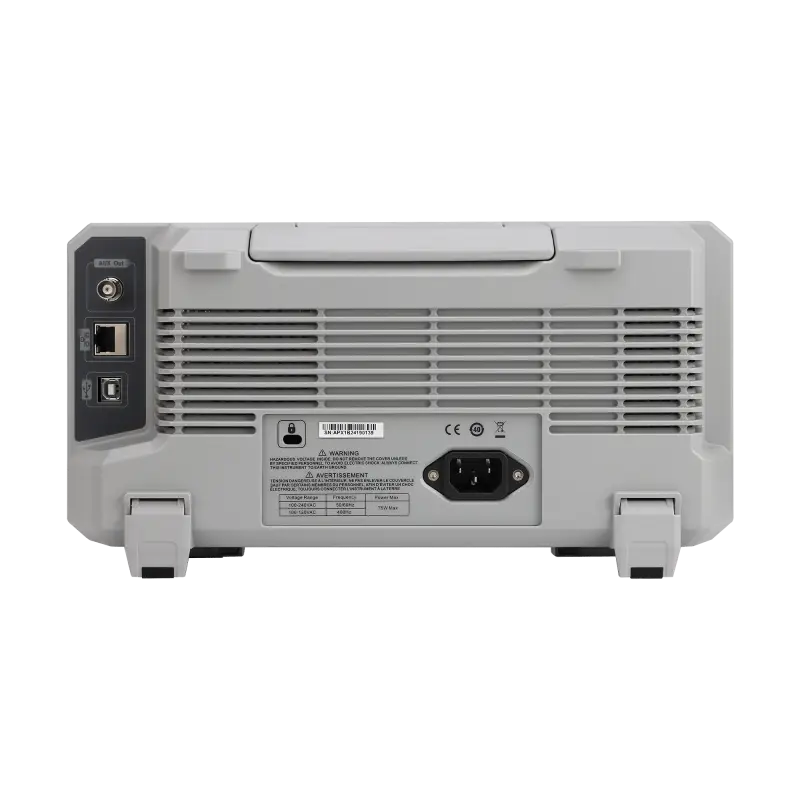

Interfaces: USB-Host, USB-Device, LAN, EXT Trig, AUX (Trig Out, Pass/Fail, DVM)
GENERAL FEATURES
Power Supply: 100V~240VAC, 50Hz/60Hz
Display: 7” TFT LCD, WVGA (800×480 px)
Weight: 2.5 kg
Dimensions: 336 x 164 x 105 mm
