Image is for illustrative purposes only

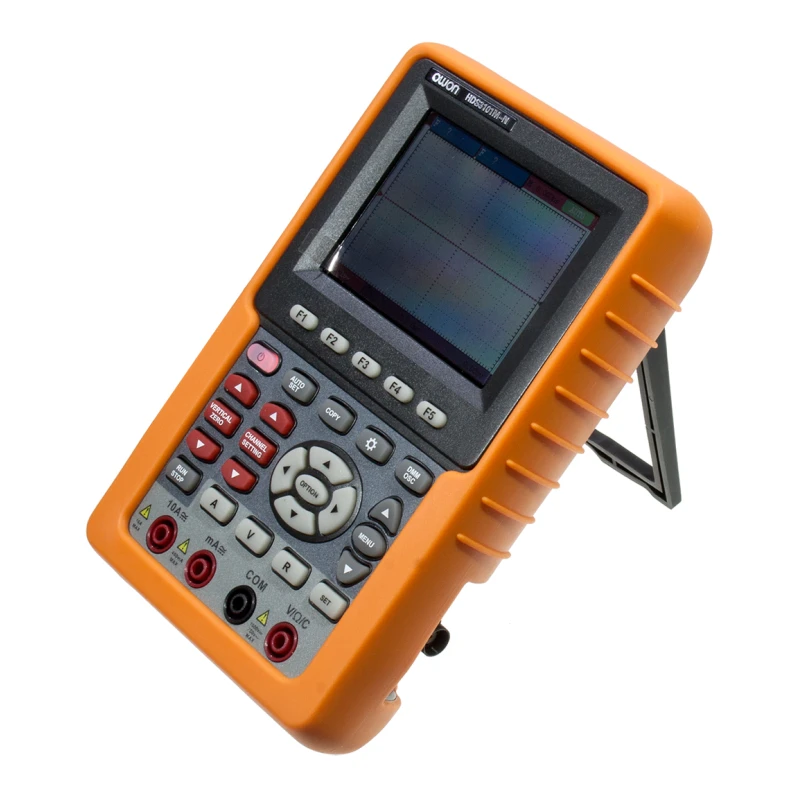

Oscilloscope 3.7" TFT 640*480pix 100MHz 1GS/s

  • SKU: HDS3101M-N
  • Owon
Pealadu
Tallinn, Peterburi tee 90F
4 pcs
Peterburi tee Oomipood
Tallinn, Peterburi tee 90F
2 pcs
Järve keskuse Oomipood
Tallinn, Pärnu mnt. 238
1 pcs
Lõunakeskuse Oomipood
Tartu, Lääneringtee 39
1 pcs
Põhjakeskuse Oomipood
Rakvere, Haljala tee 4
0 pcs
Kaubamajaka Oomipood
Pärnu, Papiniidu 8
0 pcs
Pargi keskuse Oomipood
Jõhvi, Puru tee 1
0 pcs

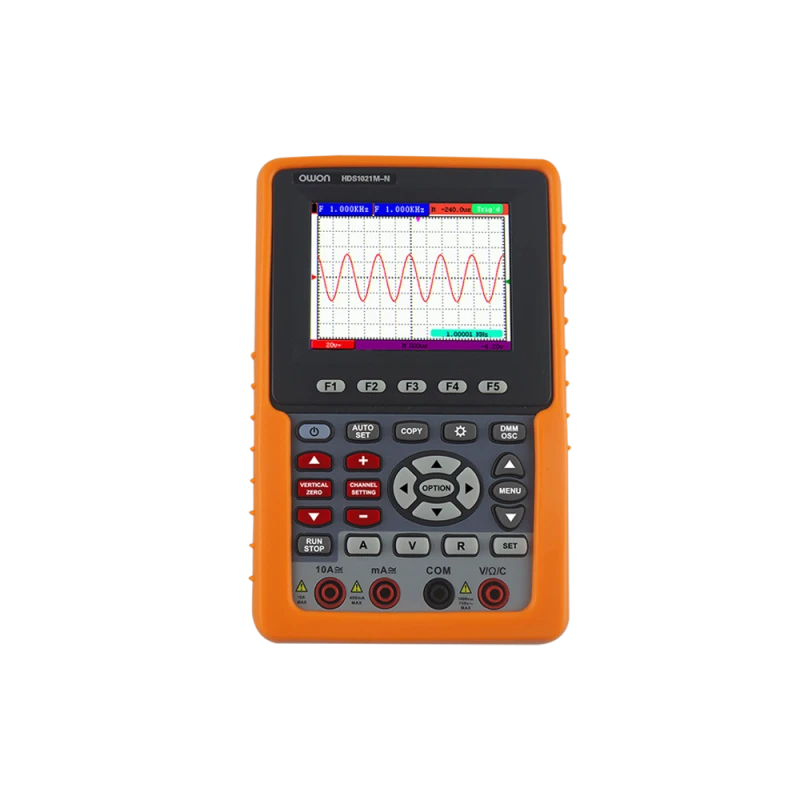

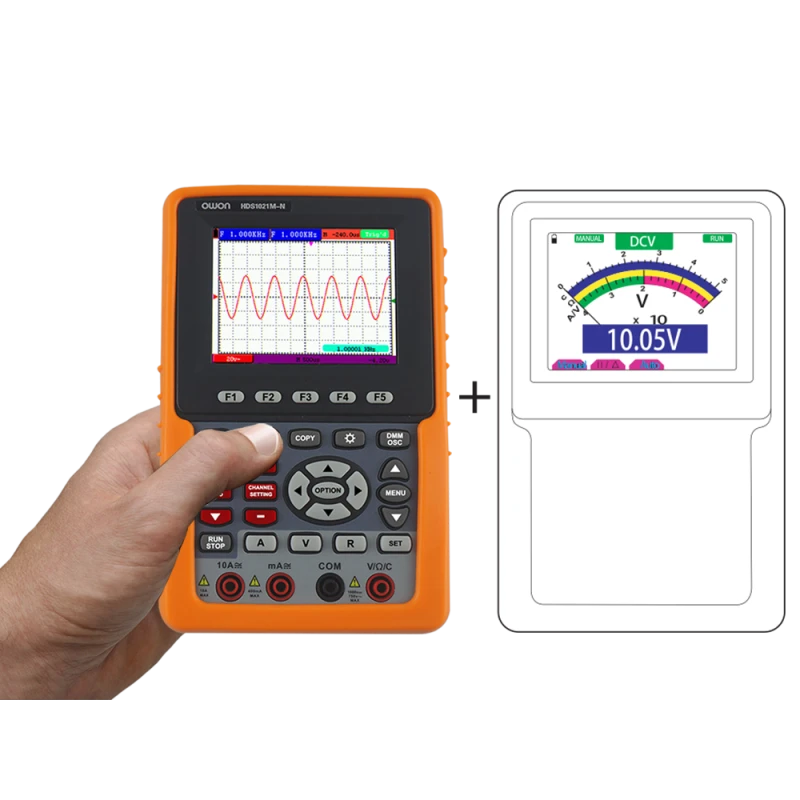

Single channel lightweight handheld oscilloscope with 100 MHz bandwidth and 1 GS/s sample rate. OWON HDS3101M-N handheld digital oscilloscope also performs multimeter measuring functions. It may be used to measure AC/DC voltage and current, resistance and capacitance.

Channels 1

Bandwidth 100 MHz

Rise time ≤ 3,5 ns

Real-time sampling rate 1 GS/s

Vertical Sensitivity 5 mV/div ~ 5 V/div

Vertical Resolution 8 bits

Record Length 6K points

Trigger Type Edge, Video, and Alternate

Trigger Mode Auto, Normal, and Single

Trigger Level ±6 divisions from screen center

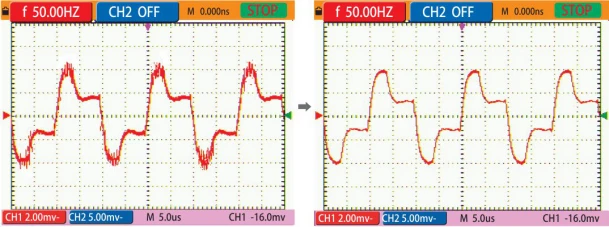

Acquisition Mode Sample, Peak Detect, Average

Waveform Storage 4 waveforms

Multimeter

DC Voltage 400 mV / 4 V / 40 V / 400 V / 1000 V: ±(1±1%)

AC Voltage 4 V / 40 V / 400 V: ±(1± 3%)

750 V: ±(2% ± 3%); Frequency : 40 Hz - 400 Hz

DC Current 40 mA / 400 mA: ±(1.5±1%)

10 A: ±(3±3%)

AC Current 40 mA: ±(1.5±3%), 400 mA: ±(2± 1%), 10 A: ±(5±3%)

Impedance 400 Ω: ±(1±3%), 40 ΚΩ- 4 ΜΩ: ±(1±1%), 40 ΜΩ: ±(1.5± 3%)

Capacitance 51.2 nF-100 uF: ±(3± 3%)

General Specifications

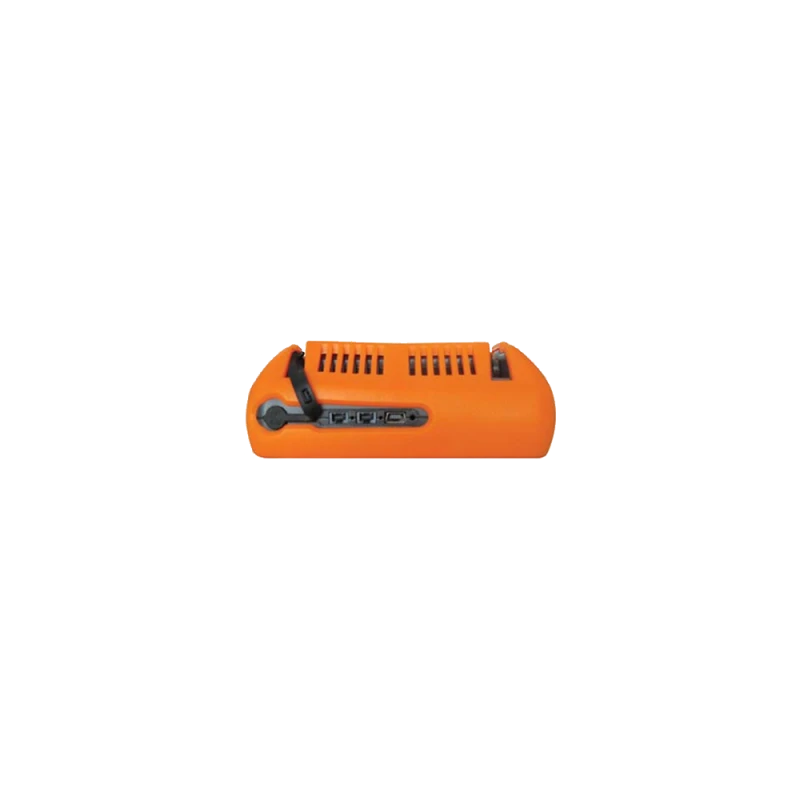

Interface mini-USB, mini-RS232

Multimeter Full Scale Reading 4000

LCD size 3.7"

Power Supply 100-240 V AC, 50/60 Hz

battery 7.4 V (6 hours' backup)

Dimensions 180 × 115 × 40 mm

Weight 645 g
