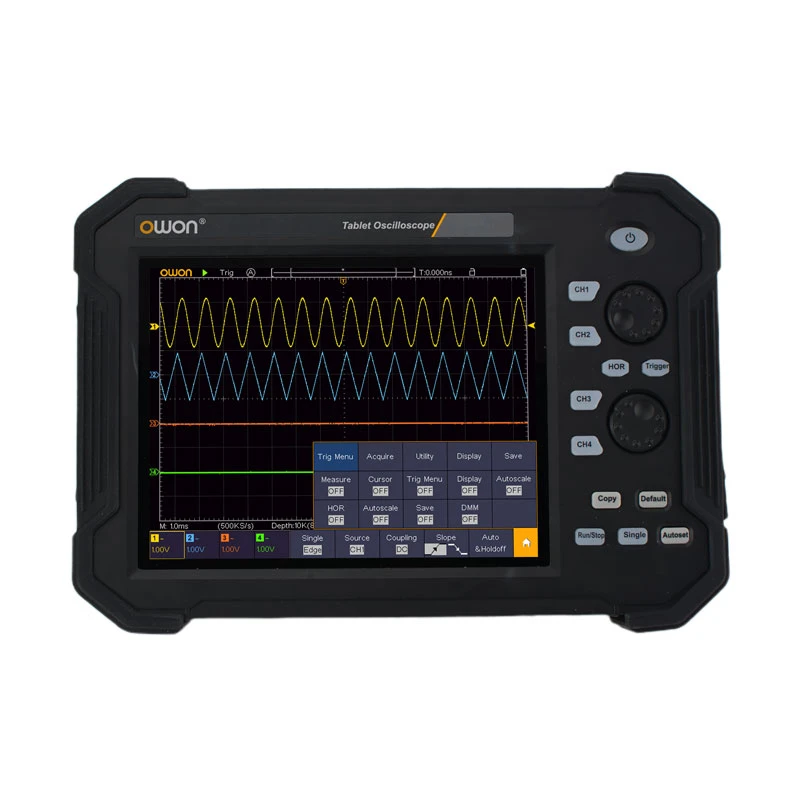

4-channel oscilloscope, 14bit, 100MHz, 1GS/s OWON TAO3104A
- 949.00 €
-
- Customer price 901.55 € -5%
- Log in and get at least a 5% discount
Tallinn, Peterburi tee 90F
Tallinn, Peterburi tee 90F
Tallinn, Pärnu mnt. 238
Tartu, Lääneringtee 39
Rakvere, Haljala tee 4
Pärnu, Papiniidu 8
Unleash Precision and Clarity with the OWON TAO3104A 4-Channel Oscilloscope
The OWON TAO3104A is a powerful and versatile 4-channel oscilloscope designed for engineers, technicians, and hobbyists who demand exceptional signal fidelity and comprehensive analysis capabilities. Featuring an impressive 14-bit resolution, this oscilloscope captures even the smallest signal details with remarkable clarity, allowing you to diagnose complex circuits and identify subtle anomalies that might be missed by lower-resolution instruments. Its intuitive interface and robust feature set empower you to tackle a wide range of measurement challenges with confidence.
Capture Every Nuance: Ideal for a Variety of Applications
The TAO3104A excels in applications requiring precise signal analysis, such as embedded systems development, power electronics testing, automotive diagnostics, and educational research. Its high resolution and bandwidth make it perfect for analyzing complex waveforms, debugging digital circuits, and characterizing analog signals. Whether you're troubleshooting a malfunctioning circuit, verifying design performance, or teaching the fundamentals of electronics, the TAO3104A provides the tools you need to succeed. The 4-channel capability allows for simultaneous observation of multiple signals, streamlining your workflow and accelerating your troubleshooting process.
Superior Performance, Exceptional Value
What sets the OWON TAO3104A apart is its unique combination of high-resolution performance, user-friendly design, and exceptional value. Unlike many oscilloscopes in its class, the TAO3104A delivers true 14-bit resolution, enabling you to see signal details that are simply invisible on lower-resolution instruments. This enhanced resolution, coupled with its intuitive interface and comprehensive feature set, makes the TAO3104A an indispensable tool for anyone who demands the highest level of accuracy and performance in their signal analysis.
Manufacturer: OWON
Product Type: Digital Oscilloscope
Bandwidth: 100 MHz
Channels: 4
Real-Time Sample Rate: 1 GSa/s
Equivalent Sample Rate: 50 GSa/s
Record Length: 40M points
Vertical Resolution (A/D): 8 bits
Vertical Sensitivity: 1 mV/div to 10 V/div
Timebase Range: 2 ns/div to 1000 s/div
Trigger Type: Edge, Pulse, Video, Slope, Alternate
Trigger Mode: Auto, Normal, Single
Cursor Measurement: Voltage, Time, Frequency
Automatic Measurement: Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Math Functions: +, -, *, /, FFT
FFT: Window: Hanning, Hamming, Blackman, Rectangle
Filter: Digital Filter
Waveform Storage: 1000 waveforms
Display: 8 inch TFT LCD, 800 x 600 pixels
Display Colors: 65535 colors
Input Coupling: DC, AC, GND
Input Impedance: 1 MΩ ± 2%, in parallel with 16 pF ± 10 pF
Max. Input Voltage: 400V (DC + AC, PK - PK, 1MΩ Input Impedance)
Probe Attenuation Factor: 1X, 10X, 100X, 1000X
Voltage Accuracy: DC Gain Accuracy: ±3%
DC Voltage Accuracy (Average): Average ≥ 16: ±(3% reading + 0.05 div)
Timebase Accuracy: ±50 ppm
Interface: USB Host, USB Device, LAN
Power Supply: 100V - 240V AC, 50/60 Hz
Power Consumption: < 15W
Fuse: 2A, T, 250V
Operating Temperature: 0°C to +50°C
Storage Temperature: -20°C to +60°C
Operating Humidity: ≤ 85% RH
Storage Humidity: ≤ 85% RH
Dimensions: 350mm x 180mm x 115mm
Weight: 2.6 kg (without package)
Safety Standards: EN61010-1:2010, EN61326-1:2013
EMC Standards: FCC Part 15 Class B, CISPR 11:2009+A1:2010
Included Accessories: Power Cord, USB Cable, Probes (4), Software CD, User Manual
Optional Accessories: Logic Analyzer Module, Arbitrary Waveform Generator Module
Sampling Mode: Normal, Peak Detect, Average
Roll Mode: Supported
XY Mode: Supported
Waveform Interpolation: Sin(x)/x
Input Protection: Yes
Help System: Built-in Help System
Language: Multiple Languages Supported
Update Rate: 50,000 wfms/s

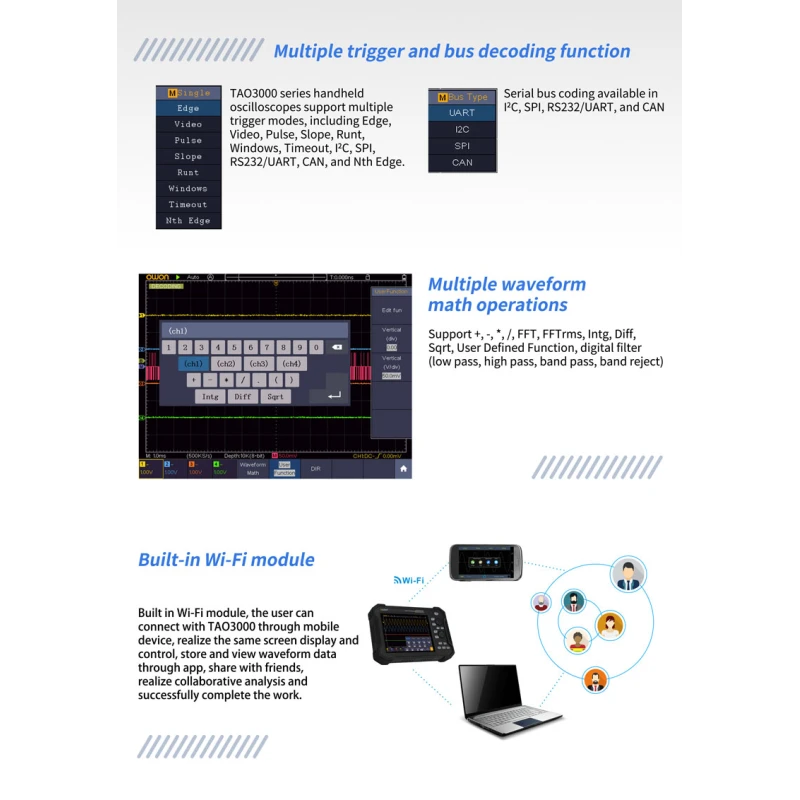

Serial Bus Triggering and Decoding: I2C, SPI, RS232, CAN (Optional)
Digital Voltmeter (DVM): 3-digit DVM
Frequency Counter: 6-digit Frequency Counter
Pass/Fail Testing: Supported
Auto Setup: Supported
Remote Control: Supported via PC Software
Calibration: Self-Calibration
