SKU:2C53T
Manufacturer:
FNIRSI
Image is for illustrative purposes only

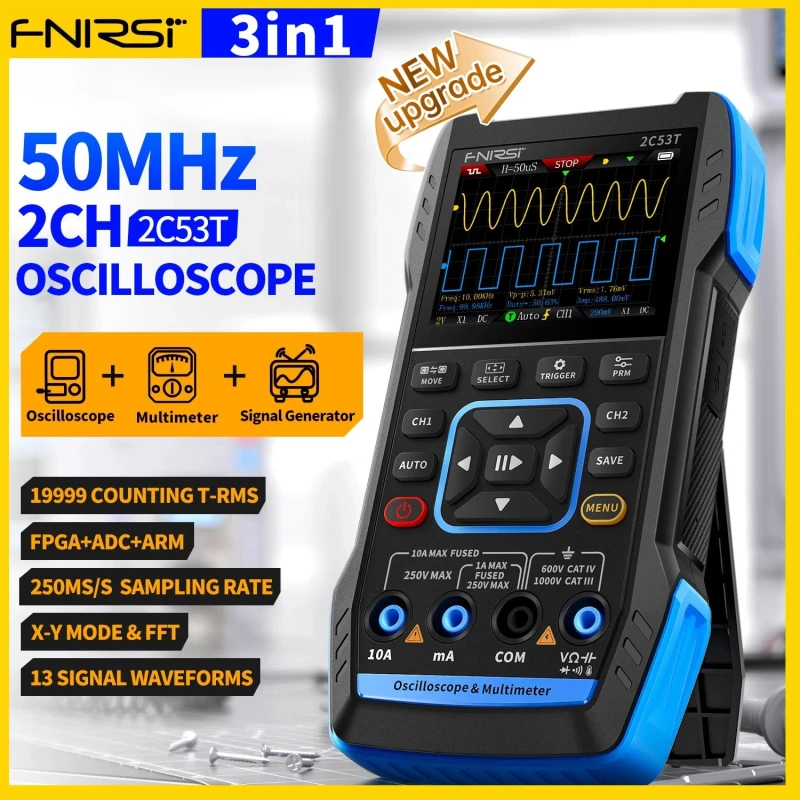

FNIRSI 2C53T is a 3-in-1 device that combines a dual-channel digital oscilloscope, a multimeter, and a signal generator. The device is built on an FPGA + ARM + ADC hardware architecture, ensuring reliable performance for maintenance, research, and educational applications.

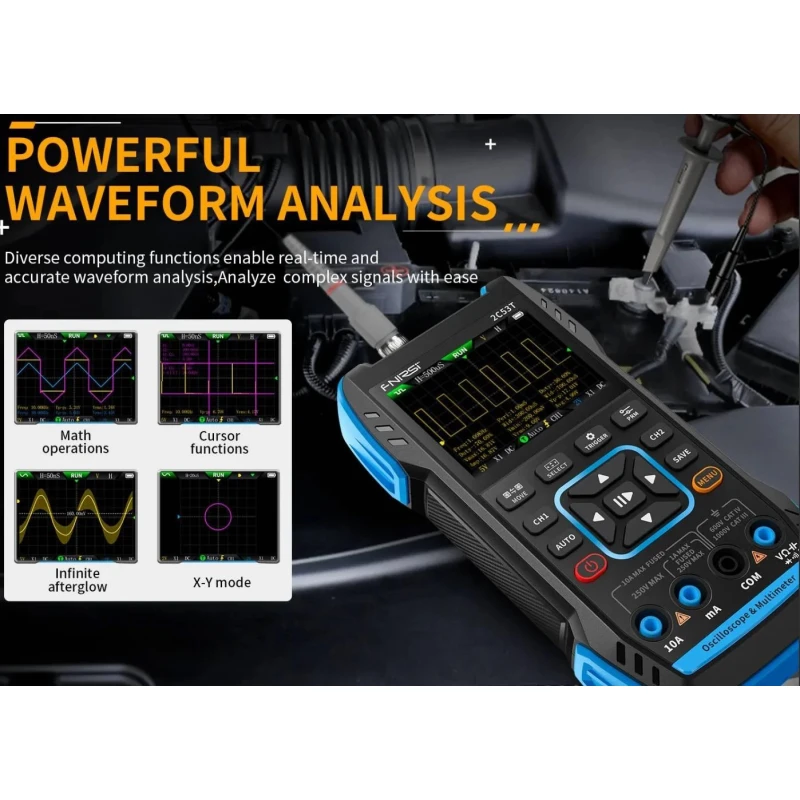

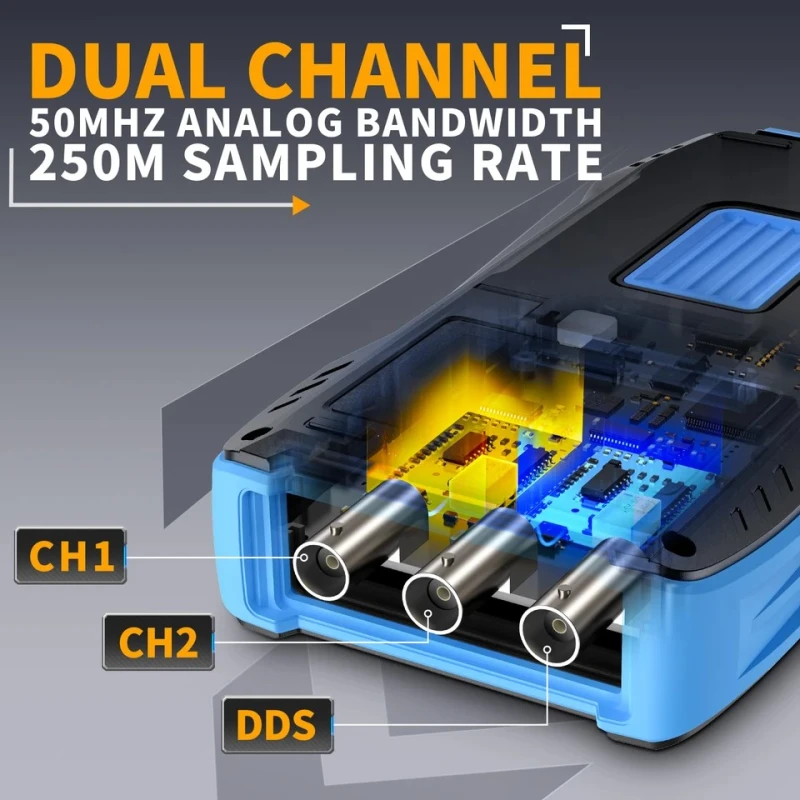

The oscilloscope features a 250MS/s sampling rate and a 50MHz analog bandwidth. It includes a high-voltage protection module that supports measurements up to ±400V peak voltage. Advanced functions such as mathematical operations, cursor measurements, persistence mode, and XY mode are integrated for detailed signal analysis.

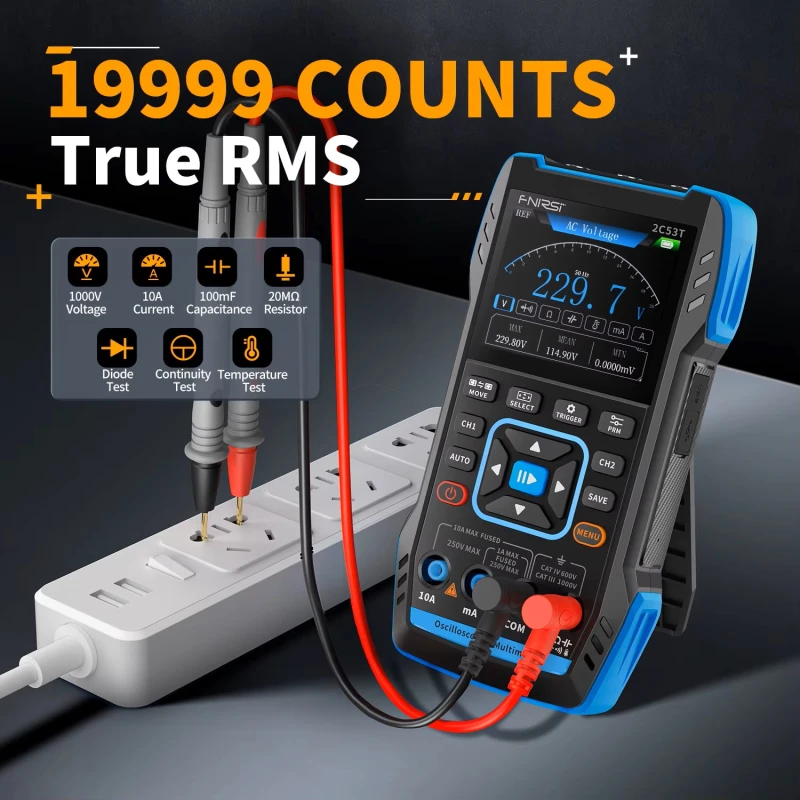

The integrated 4.5-digit multimeter provides up to 19999 counts with true RMS measurements. It supports AC/DC voltage and current, capacitance, resistance, diode, and continuity testing. The DDS signal generator can output 13 types of functional signals with a maximum frequency of 50KHz and a step size of 1Hz.
The device is equipped with a 2.8-inch HD LCD (320*240 resolution) and a built-in 3000mAh lithium battery, offering up to 6 hours of operation. It also supports waveform screenshot storage and data export for further analysis.
The oscilloscope features a 250MS/s sampling rate and a 50MHz analog bandwidth. It includes a high-voltage protection module that supports measurements up to ±400V peak voltage. Advanced functions such as mathematical operations, cursor measurements, persistence mode, and XY mode are integrated for detailed signal analysis.
The integrated 4.5-digit multimeter provides up to 19999 counts with true RMS measurements. It supports AC/DC voltage and current, capacitance, resistance, diode, and continuity testing. The DDS signal generator can output 13 types of functional signals with a maximum frequency of 50KHz and a step size of 1Hz.
The device is equipped with a 2.8-inch HD LCD (320*240 resolution) and a built-in 3000mAh lithium battery, offering up to 6 hours of operation. It also supports waveform screenshot storage and data export for further analysis.
Channels: Dual channel
Sampling rate: 250MS/s
Analog bandwidth: 50MHz (independent 50M per channel)
Storage depth: 1Kpts
Impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (x1)
Maximum measured voltage: ±400V
Multimeter DC voltage: 0-999.9V
Multimeter AC voltage: 0-750V
Multimeter DC/AC current: 0-9.999A
Multimeter resistance: 0-19.99MΩ
Multimeter capacitance: 0-99.99mF
Signal generator maximum output frequency: 50KHz
Display: 2.8-inch HD color screen
Resolution: 320*240
Charging specification: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Standby time: 6h (theoretical laboratory maximum)
In the box: 1x P6100 Oscilloscope probe
1x Set of test leads (2mm tip)
1x BNC to 2x Alligator clip cable
Charging cable
Travel case
Manual
Sampling rate: 250MS/s
Analog bandwidth: 50MHz (independent 50M per channel)
Storage depth: 1Kpts
Impedance: 1MΩ
Time base range: 10ns-20s
Vertical sensitivity: 10mV/div-10V/div (x1)
Maximum measured voltage: ±400V
Multimeter DC voltage: 0-999.9V
Multimeter AC voltage: 0-750V
Multimeter DC/AC current: 0-9.999A
Multimeter resistance: 0-19.99MΩ
Multimeter capacitance: 0-99.99mF
Signal generator maximum output frequency: 50KHz
Display: 2.8-inch HD color screen
Resolution: 320*240
Charging specification: TYPE-C (5V/1A)
Battery: 3000mAh lithium battery
Standby time: 6h (theoretical laboratory maximum)
In the box: 1x P6100 Oscilloscope probe
1x Set of test leads (2mm tip)
1x BNC to 2x Alligator clip cable
Charging cable
Travel case
Manual
-
