Mini Oscilloscope/Signal Generator, 1MHz, 5MS/s, 800Vpp
SKU:DSO-153
Manufacturer:FNIRSI
Image is for illustrative purposes only

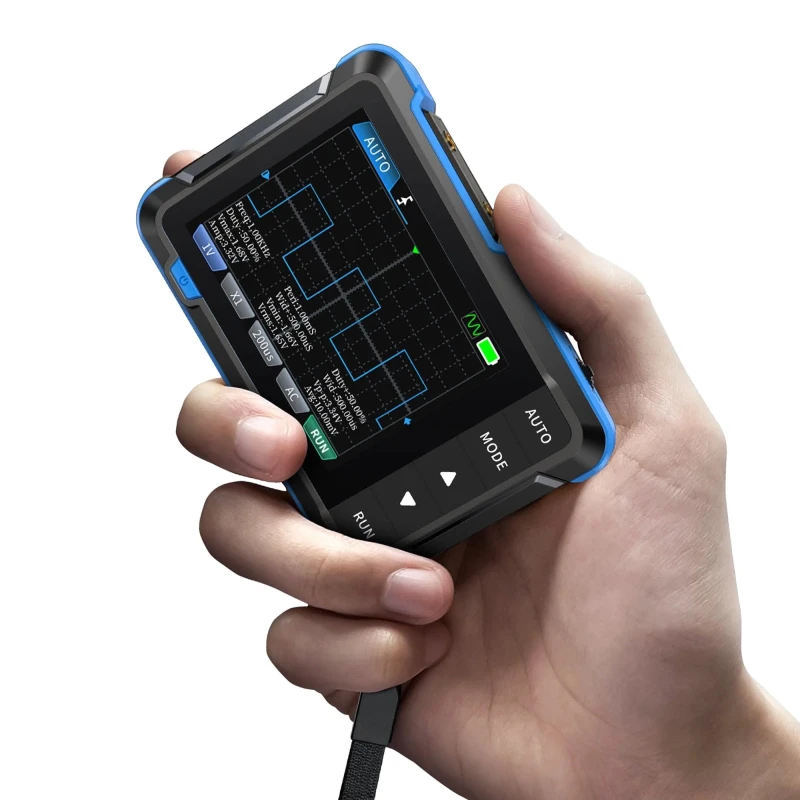

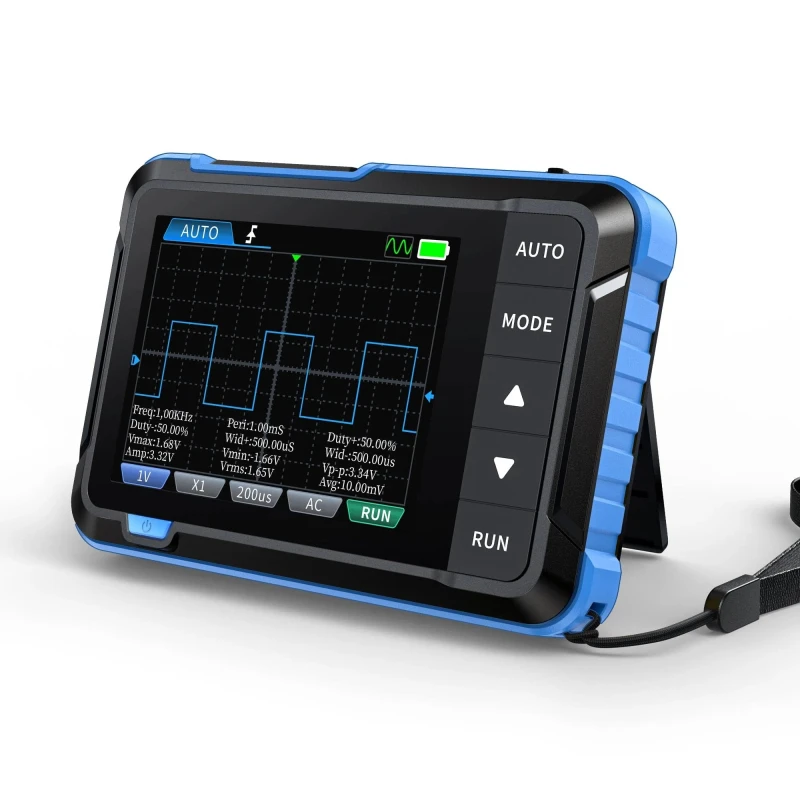

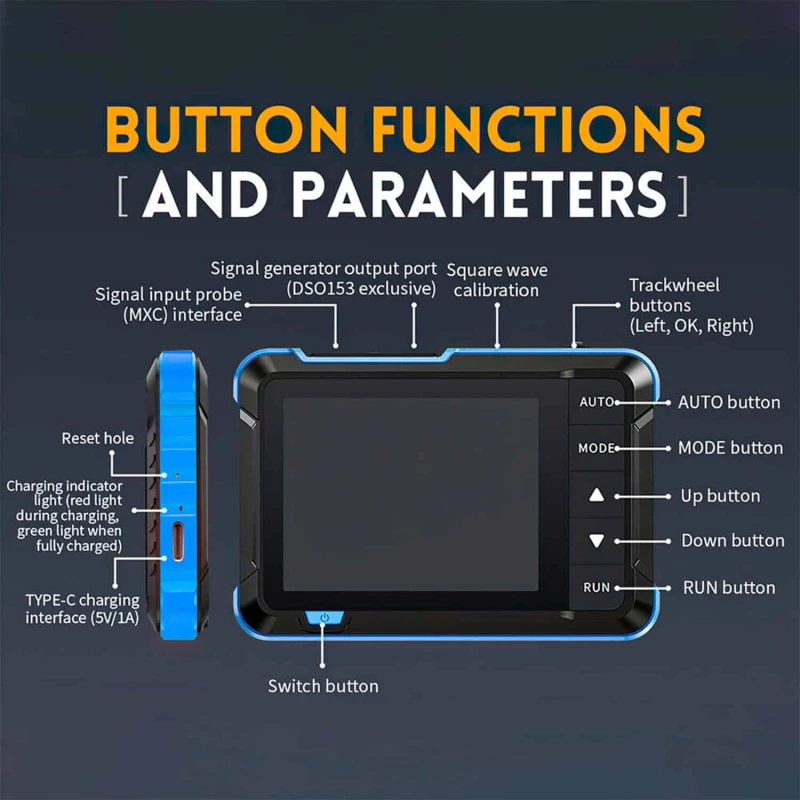

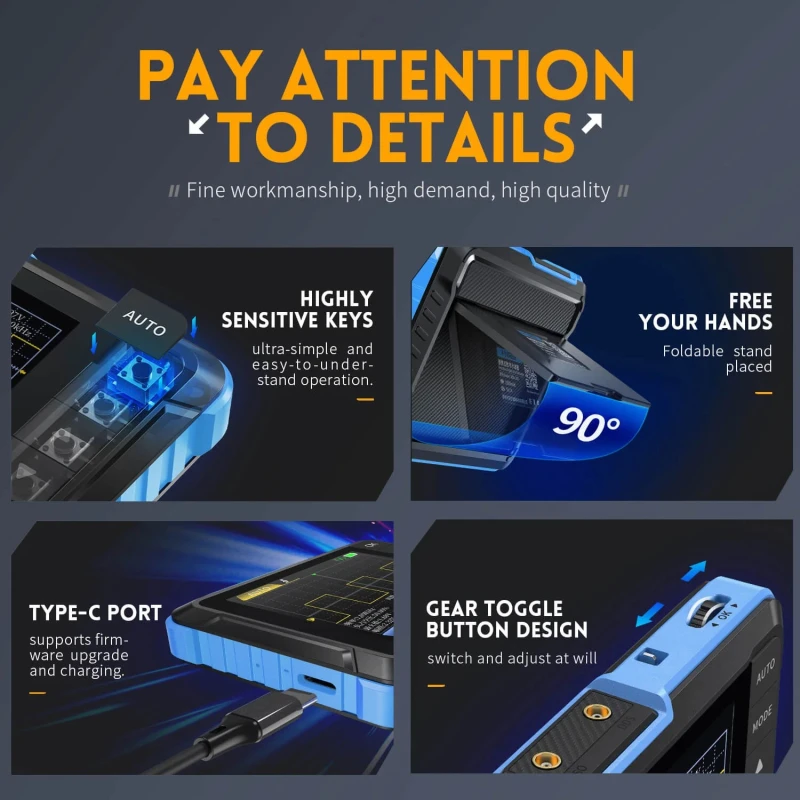

The FNIRSI DSO-153 is an ultra-compact and versatile device that combines a digital oscilloscope and a DDS signal generator into one handheld tool. Designed for hobbyists, students, and maintenance professionals, this 2-in-1 device is perfect for signal analysis in the field or in tight workspaces. It features a sharp 2.8-inch high-definition LCD screen that ensures all measurement data is clearly visible and easy to read.

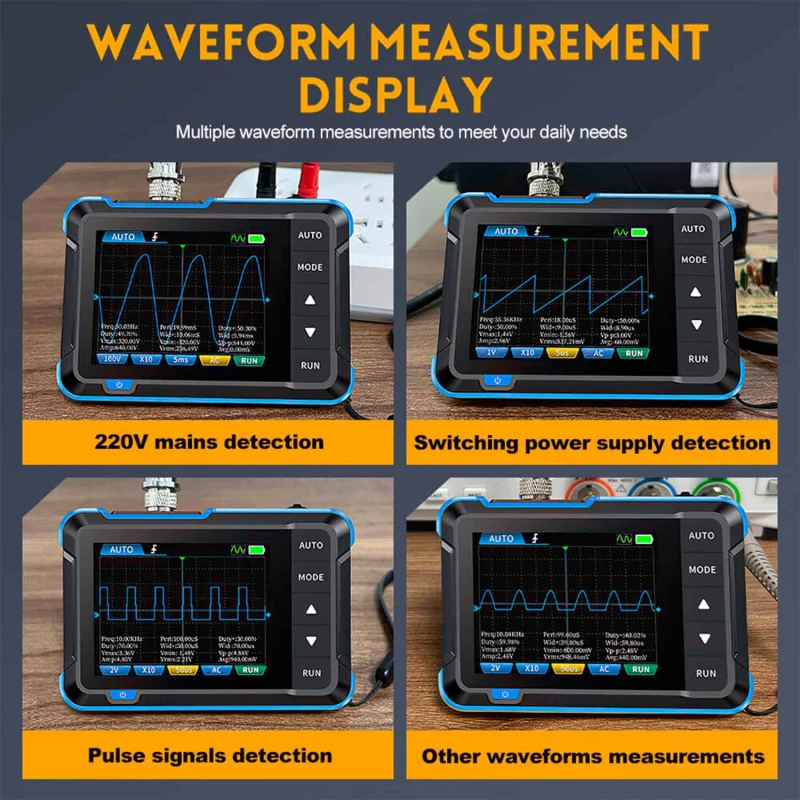

As an oscilloscope, it offers a 1MHz bandwidth and a 5MS/s sampling rate, capable of measuring voltages up to ±400V when using a X10 probe. The intelligent one-click AUTO function simplifies the process by automatically adjusting settings to display the waveform perfectly without manual debugging. It is suitable for both periodic analog signals and non-periodic digital signals, making it a flexible choice for various electronic tasks.
The integrated signal generator can output 14 different waveforms, including sine, square, and sawtooth waves with frequencies up to 10kHz. Powered by a built-in 1000mAh lithium battery, the device provides up to 4 hours of continuous use on a single charge and supports convenient Type-C charging.
As an oscilloscope, it offers a 1MHz bandwidth and a 5MS/s sampling rate, capable of measuring voltages up to ±400V when using a X10 probe. The intelligent one-click AUTO function simplifies the process by automatically adjusting settings to display the waveform perfectly without manual debugging. It is suitable for both periodic analog signals and non-periodic digital signals, making it a flexible choice for various electronic tasks.
The integrated signal generator can output 14 different waveforms, including sine, square, and sawtooth waves with frequencies up to 10kHz. Powered by a built-in 1000mAh lithium battery, the device provides up to 4 hours of continuous use on a single charge and supports convenient Type-C charging.
Brand: FNIRSI
Model: DSO-153
Display: 2.8 Inches / Resolution: 320*240
USB Charging: 5V/1A
Lithium Battery Capacity: 1000mAh
Battery Life: approx. 4 hours
Size: 99 x 68.3 x 19.5 mm
Weight: 100g
Oscilloscope Channels: 1
Sampling Rate: 5MS/s
Bandwidth: 1MHz
Vertical Sensitivity: 10mV/Div - 10V/Div (1-2-5 steps)
Time Base Range: 500ns/Div - 20s/Div (1-2-5 steps)
Voltage Range: X1: ±40V (80Vpp), X10: ±400V (800Vpp)
Trigger Mode: Auto / Normal / Single
Trigger Edge: Rising edge / Falling edge
Coupling: AC/DC
Signal Generator Frequency: 0-10KHz
Signal Generator Duty Cycle: 0-100% (for rectangular and sawtooth waves)
Signal Generator Amplitude: 0.1-3.3V
Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
In the box (Standard Package):

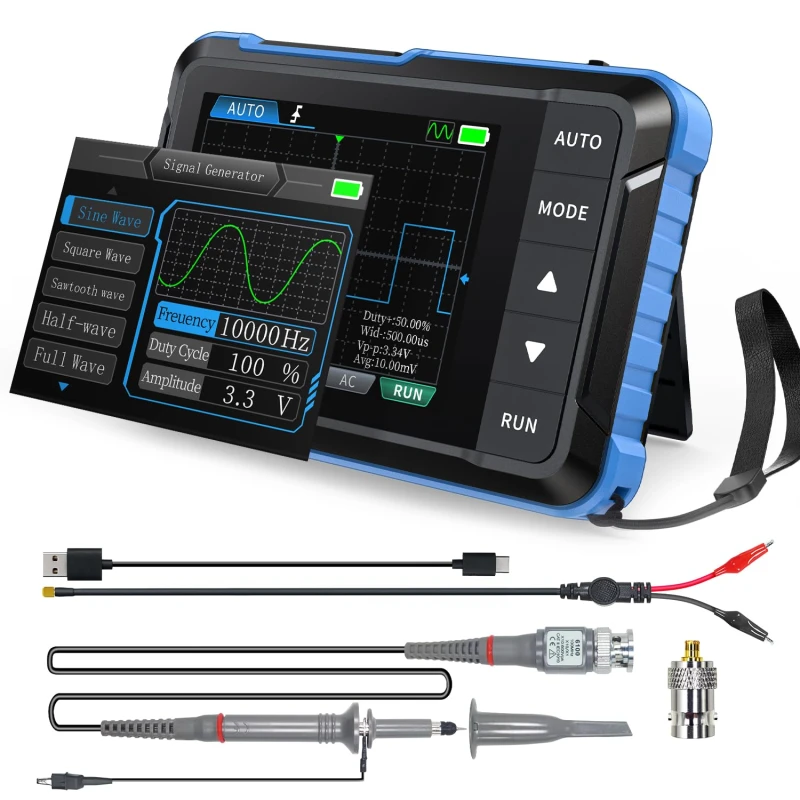

1. FNIRSI DSO-153 Oscilloscope Host x1
2. Alligator clip probe x1
3. Charging cable x1
4. Lanyard x1
5. User Manual x1
6. Packaging color box x1
In the box (Plus Package):
1. FNIRSI DSO-153 Oscilloscope Host x1
2. P6100 High Voltage Probe x1
3. Adapter x1
4. Alligator clip probe x1
5. Charging cable x1
6. Lanyard x1
7. User Manual x1
8. Packaging color box x1
Model: DSO-153
Display: 2.8 Inches / Resolution: 320*240
USB Charging: 5V/1A
Lithium Battery Capacity: 1000mAh
Battery Life: approx. 4 hours
Size: 99 x 68.3 x 19.5 mm
Weight: 100g
Oscilloscope Channels: 1
Sampling Rate: 5MS/s
Bandwidth: 1MHz
Vertical Sensitivity: 10mV/Div - 10V/Div (1-2-5 steps)
Time Base Range: 500ns/Div - 20s/Div (1-2-5 steps)
Voltage Range: X1: ±40V (80Vpp), X10: ±400V (800Vpp)
Trigger Mode: Auto / Normal / Single
Trigger Edge: Rising edge / Falling edge
Coupling: AC/DC
Signal Generator Frequency: 0-10KHz
Signal Generator Duty Cycle: 0-100% (for rectangular and sawtooth waves)
Signal Generator Amplitude: 0.1-3.3V
Waveforms: Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, noise wave, exponential rise, exponential drop, DC signal, multi tone, Sink pulse, Lorentz wave.
In the box (Standard Package):
1. FNIRSI DSO-153 Oscilloscope Host x1
2. Alligator clip probe x1
3. Charging cable x1
4. Lanyard x1
5. User Manual x1
6. Packaging color box x1
In the box (Plus Package):
1. FNIRSI DSO-153 Oscilloscope Host x1
2. P6100 High Voltage Probe x1
3. Adapter x1
4. Alligator clip probe x1
5. Charging cable x1
6. Lanyard x1
7. User Manual x1
8. Packaging color box x1
-
