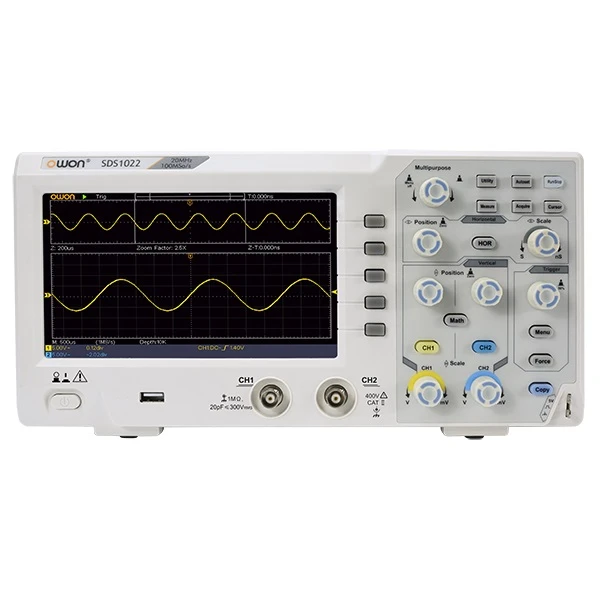

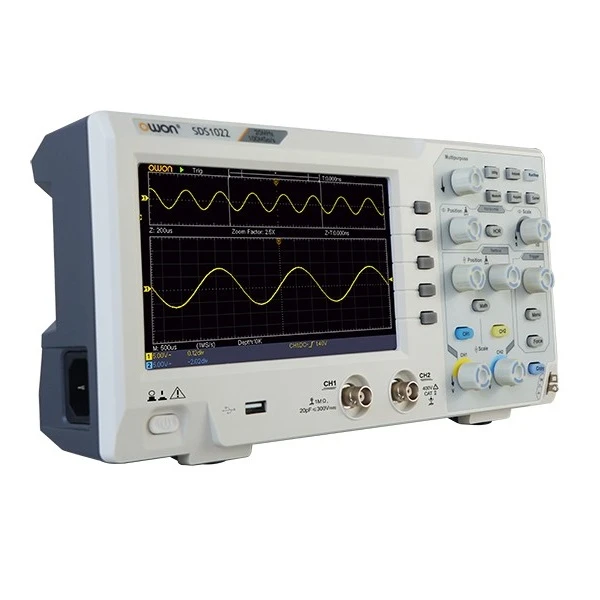

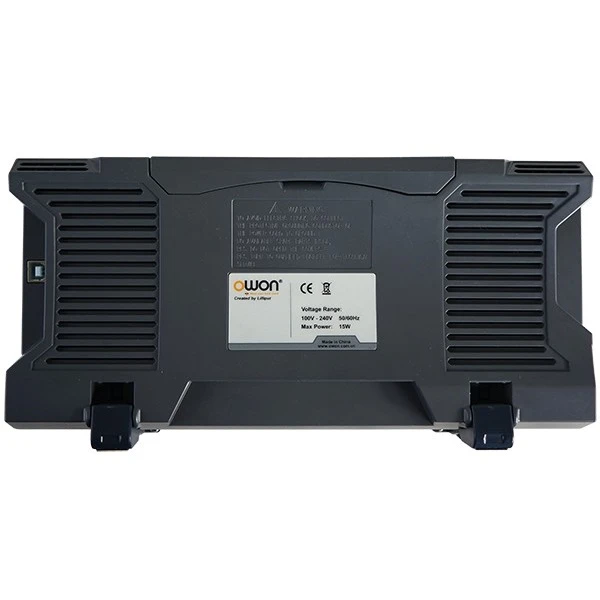

The OWON® SDS1022 oscilloscope is ideal for the budding electronics enthusiast who isn't ready for a bigger investment in a more expensive device. It's also suitable for professionals whose measurement needs fall within the oscilloscope's parameters. The device can measure up to 20 MHz, with vertical resolution comparable to more expensive oscilloscopes. The sampling rate of 100 MS/s is sufficient for working with frequencies up to 20 MHz. A significant feature is the clear and easily readable 7'' display with a resolution of 800x480 pixels.

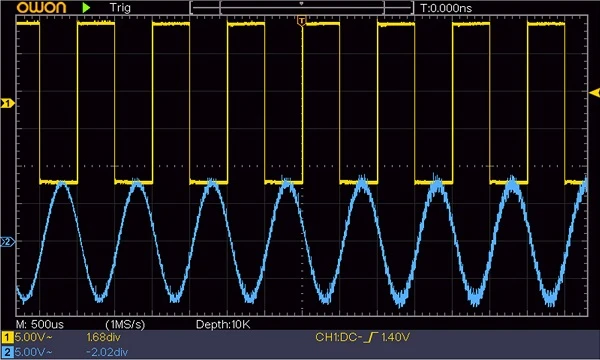

Functionality: The OWON® SDS1022 is very well-equipped with various options. Automatic setup allows the waveform to be displayed without any complex configuration, while still offering users the ability to perform fine-tuning as needed. Simultaneously monitoring and comparing two different signal sources is a great advantage, enabling faster achievement of desired results when measuring multiple interdependent signals.
Features: Automatic setup, waveform calculations, waveform zooming, FFT, various trigger settings, saving to a USB drive, USB connection to a computer, etc.
Specifications:
* Maximum measurable frequency up to 20MHz
* Sampling rate 100MS/s
* Vertical resolution 8 bits
Functionality: The OWON® SDS1022 is very well-equipped with various options. Automatic setup allows the waveform to be displayed without any complex configuration, while still offering users the ability to perform fine-tuning as needed. Simultaneously monitoring and comparing two different signal sources is a great advantage, enabling faster achievement of desired results when measuring multiple interdependent signals.
Features: Automatic setup, waveform calculations, waveform zooming, FFT, various trigger settings, saving to a USB drive, USB connection to a computer, etc.
Specifications:
* Maximum measurable frequency up to 20MHz
* Sampling rate 100MS/s
* Vertical resolution 8 bits
Bandwidth: 20 MHz
Horizontal Scale (s/div): 5 ns/div - 1000 s/div
Channel: 2
Vertical Sensitivity: 5 mV/div - 5 V/div (at input)
DC Gain Accuracy: 3%
Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
Input:
Input Impedance: 1 MΩ, 10 pF
Input Coupling: AC, DC, GND
Max Input Voltage: ± 400 V, CATI, CATII
Passive probes: х1; х10
Probe Attenuation Factor: х1; х10; х100; х1000
Trigger System:
Trigger Mode: Auto, Normal, Single
Trigger Type: Edge, Video
Edge Trigger Source: CH1, CH2
Video Trigger:
Sampling Type: real-time
Sample Rate: 100 MSa/s
Equivalent Sample Rate: no
Wavelength: 10K pts
Interpolation: sin(x)/x
Measurement and Mathematical Treatment System:

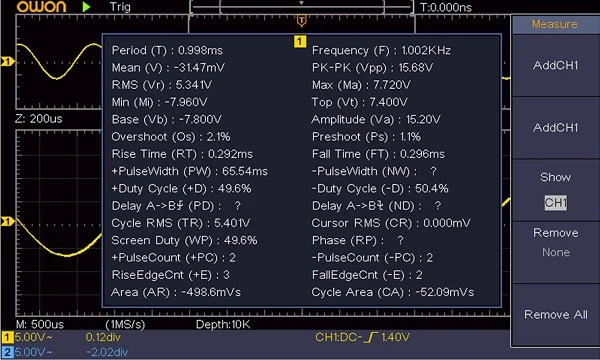

Automatic Measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area
Math Functions: Addition, Subtraction, Multiplication, Division, FFT
General Characteristics:
Display type: 7" color LCD
Display Resolution: 800 × 480
Power: 100-240 V, 45-440 Hz,
Horizontal Scale (s/div): 5 ns/div - 1000 s/div
Channel: 2
Vertical Sensitivity: 5 mV/div - 5 V/div (at input)
DC Gain Accuracy: 3%
Vertical Resolution (A/D): 8 bits (2 channels simultaneously)
Input:
Input Impedance: 1 MΩ, 10 pF
Input Coupling: AC, DC, GND
Max Input Voltage: ± 400 V, CATI, CATII
Passive probes: х1; х10
Probe Attenuation Factor: х1; х10; х100; х1000
Trigger System:
Trigger Mode: Auto, Normal, Single
Trigger Type: Edge, Video
Edge Trigger Source: CH1, CH2
Video Trigger:
Sampling Type: real-time
Sample Rate: 100 MSa/s
Equivalent Sample Rate: no
Wavelength: 10K pts
Interpolation: sin(x)/x
Measurement and Mathematical Treatment System:
Automatic Measurement: Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot, Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A→B, Delay A→B, area, cycle area
Math Functions: Addition, Subtraction, Multiplication, Division, FFT
General Characteristics:
Display type: 7" color LCD
Display Resolution: 800 × 480
Power: 100-240 V, 45-440 Hz,
-
