Universal laptop charger for the car in 11-32V, out 12-24V 90W
SKU:2LAPDCTIR1
Manufacturer:VoltPolska

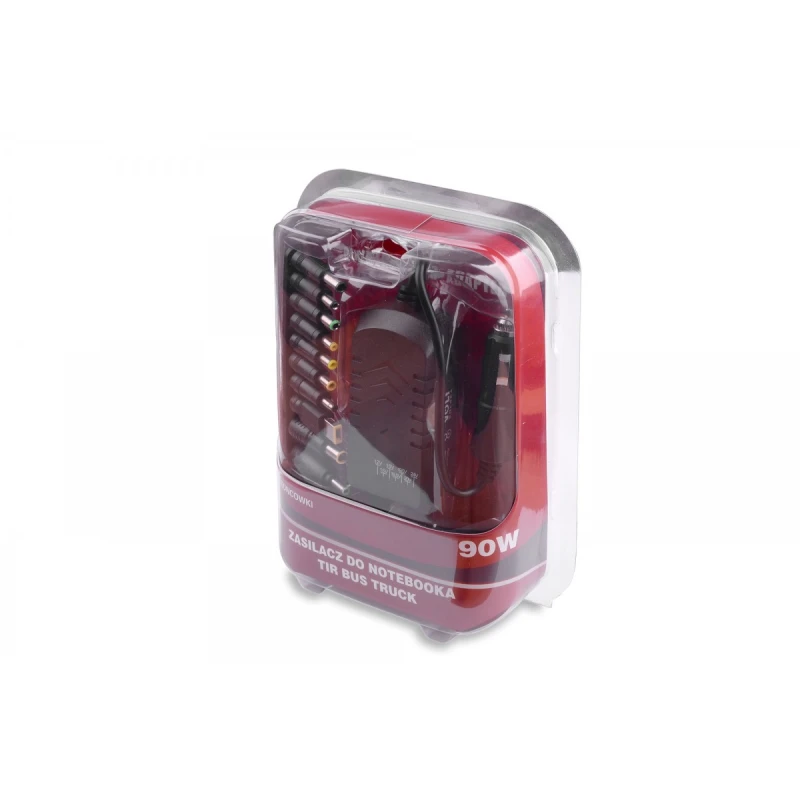

Image is for illustrative purposes only
The universal car adapter for laptop TIR 90W is powered from a voltage range of 11-32V. The output voltage is selected by a switch on the housing. The kit includes a plug that allows you to fix the switch at the selected value of output voltage.
Most important features:
- Electronics based on a modern and fast microprocessor
- The charger protects the battery and the laptop from overcharging, short circuits, overvoltage or overheating
- After charging the laptop battery, the power supply shuts down the charging process and goes into maintenance mode
Design:
- Ferrite filter on the notebook cable (against noise)
- USB connector on the case
- Sealed case with passive cooling
- Interchangeable notebook jack set
Most important features:
- Electronics based on a modern and fast microprocessor
- The charger protects the battery and the laptop from overcharging, short circuits, overvoltage or overheating
- After charging the laptop battery, the power supply shuts down the charging process and goes into maintenance mode
Design:
- Ferrite filter on the notebook cable (against noise)
- USB connector on the case
- Sealed case with passive cooling
- Interchangeable notebook jack set

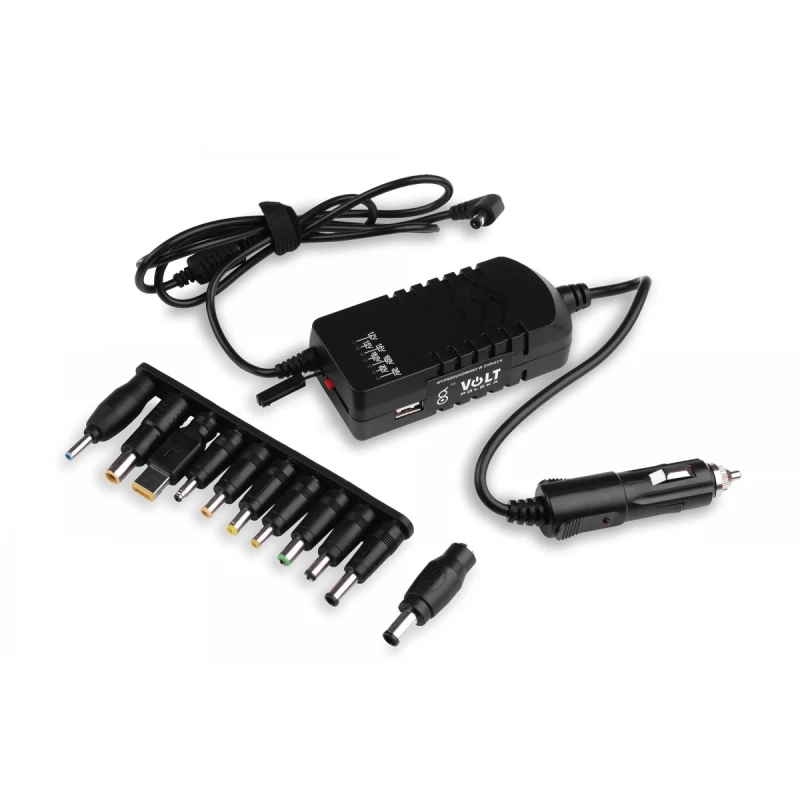

The kit includes 11 interchangeable nozzles to fit most laptops:
Type A: 6.5x4.4 mm - Fujitsu, Sony, Samsung
Type B: 5.5x2.5mm - Liteon, NEC, Toshiba
Type D: 6.3x3.0mm - Nec, Toshiba
E-type: 4.8x1.7mm - Compaq, HP, Delta, Asus, Nec
F-type: 5.5x0.2.5mm - Acer, Compaq, Delta, Fujitsu, HP, IBM, Liteon
G-type: 5.5x3.0 mm - Samsung
Dell: 7.4x5.0mm - Dell
L-type: IBM 20V 4.5A
P-Type: 4.8x1.7mm - Compaq, Asus
X-Type: HP 15V-24V, 3.75A-6A
Z-Type: Lenovo 15V-24V, 3.75A-6A
Total (instantaneous) power: 90W
Input voltage range: 11-32V
Output voltage: 12-24V
No-load current: 150mA
Included: Laptop adapters
Dimensions: 94x63x34 mm
Scale: 300g
Type A: 6.5x4.4 mm - Fujitsu, Sony, Samsung
Type B: 5.5x2.5mm - Liteon, NEC, Toshiba
Type D: 6.3x3.0mm - Nec, Toshiba
E-type: 4.8x1.7mm - Compaq, HP, Delta, Asus, Nec
F-type: 5.5x0.2.5mm - Acer, Compaq, Delta, Fujitsu, HP, IBM, Liteon
G-type: 5.5x3.0 mm - Samsung
Dell: 7.4x5.0mm - Dell
L-type: IBM 20V 4.5A
P-Type: 4.8x1.7mm - Compaq, Asus
X-Type: HP 15V-24V, 3.75A-6A
Z-Type: Lenovo 15V-24V, 3.75A-6A
Total (instantaneous) power: 90W
Input voltage range: 11-32V
Output voltage: 12-24V
No-load current: 150mA
Included: Laptop adapters
Dimensions: 94x63x34 mm
Scale: 300g
