SKU:1502-08
Manufacturer:
Lumberg
New
Image is for illustrative purposes only

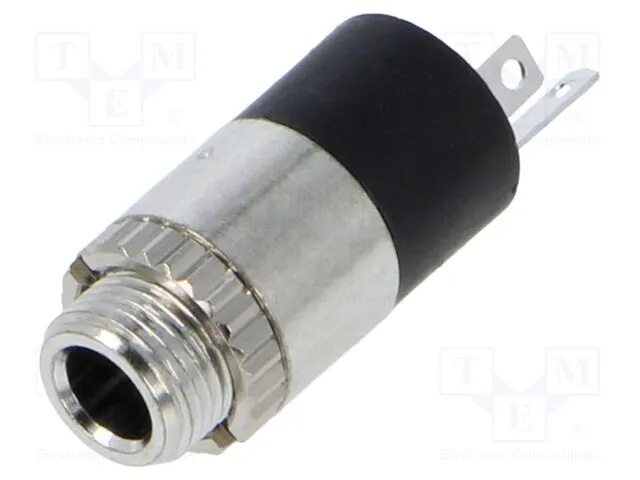

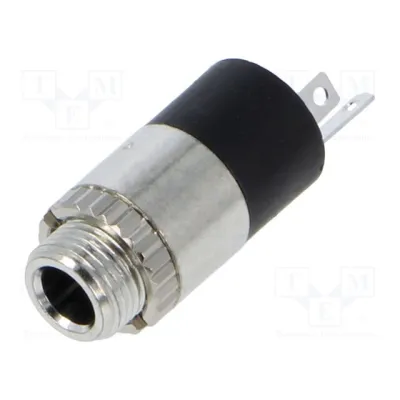

The Lumberg 1502 08 is a high-precision 3.5 mm stereo chassis socket designed for integration into sophisticated audio systems. This 3-pole connector adheres to the JIS C 6560 JC35J3A standard, ensuring universal compatibility and professional-grade performance.
Engineered for durability, the socket features silver-plated contacts and a robust nickel-plated brass housing, capable of withstanding up to 5000 mating cycles. It is optimized for back-side mounting on printed circuit boards (PCBs) and includes solder eyes for secure and stable electrical connections. Whether used in industrial equipment or high-end consumer electronics, this Lumberg socket provides reliable signal transmission in temperatures ranging from -20 °C to +70 °C.
Engineered for durability, the socket features silver-plated contacts and a robust nickel-plated brass housing, capable of withstanding up to 5000 mating cycles. It is optimized for back-side mounting on printed circuit boards (PCBs) and includes solder eyes for secure and stable electrical connections. Whether used in industrial equipment or high-end consumer electronics, this Lumberg socket provides reliable signal transmission in temperatures ranging from -20 °C to +70 °C.
Type: Jack chassis socket according to JIS C 6560 JC35J3A
Diameter: 3.5 mm
Number of poles: 3 (stereo)
Mounting: For printed circuit boards, back side mounting
Connection: Solder eyes
Temperature range: -20 °C / +70 °C
Insulating body: PBT, V-0 according to UL94
Contact: CuSn/CuZn, silver-plated/tin-plated
Housing: CuZn, nickel-plated
Knurled nut: CuZn, nickel-plated
Mating cycles: 5000
Insertion force: 3–30 N
Withdrawal force: 3–30 N
Tightening torque nut: ≤ 0.19 Nm
Contact resistance: ≤ 30 mΩ
Rated current: 1 A
Rated voltage: 34 V
Rated impulse voltage: 500 V/60 s
Insulation resistance: ≥ 100 MΩ
Associated counterparts: 1532 07, 1532 10, 1532 11, KLS 40, KLS 44, WKLS 40
Diameter: 3.5 mm
Number of poles: 3 (stereo)
Mounting: For printed circuit boards, back side mounting
Connection: Solder eyes
Temperature range: -20 °C / +70 °C
Insulating body: PBT, V-0 according to UL94
Contact: CuSn/CuZn, silver-plated/tin-plated
Housing: CuZn, nickel-plated
Knurled nut: CuZn, nickel-plated
Mating cycles: 5000
Insertion force: 3–30 N
Withdrawal force: 3–30 N
Tightening torque nut: ≤ 0.19 Nm
Contact resistance: ≤ 30 mΩ
Rated current: 1 A
Rated voltage: 34 V
Rated impulse voltage: 500 V/60 s
Insulation resistance: ≥ 100 MΩ
Associated counterparts: 1532 07, 1532 10, 1532 11, KLS 40, KLS 44, WKLS 40
