Solar panel controller for MPPT 120-350V 3000W boilers
- SKU: 3SR3000001
- 369.00 €
-
To submit Liisy payment by installment application add products to cart, choose Liisi payment by installment as the payment method and cofirm your order. After confirming the order Liisi application will appear. Calculations are approximate and may differ from conditions offered to you.
Orderable, delivery time 28.06.2024

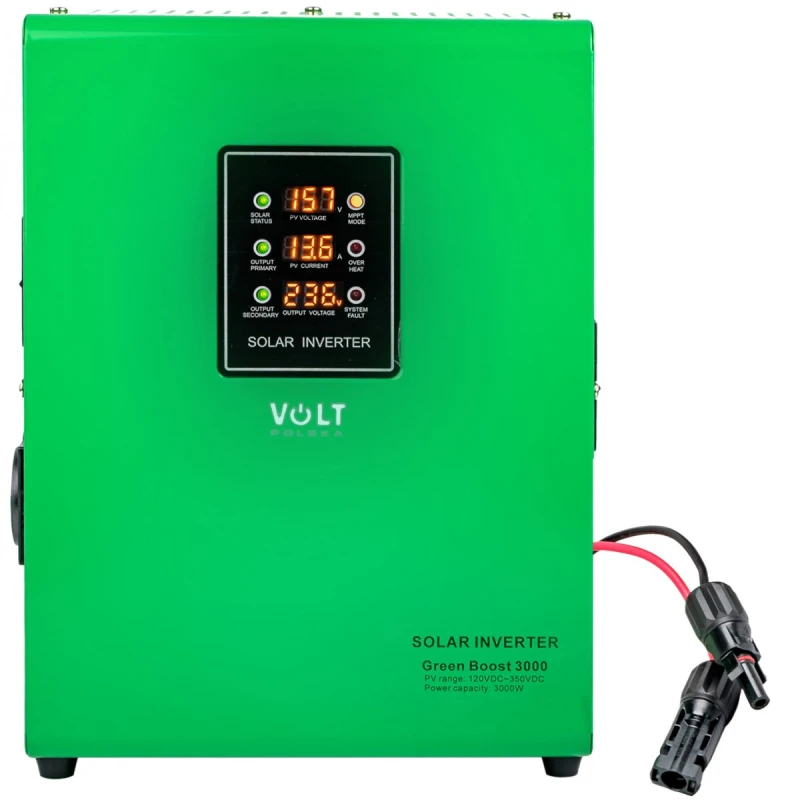

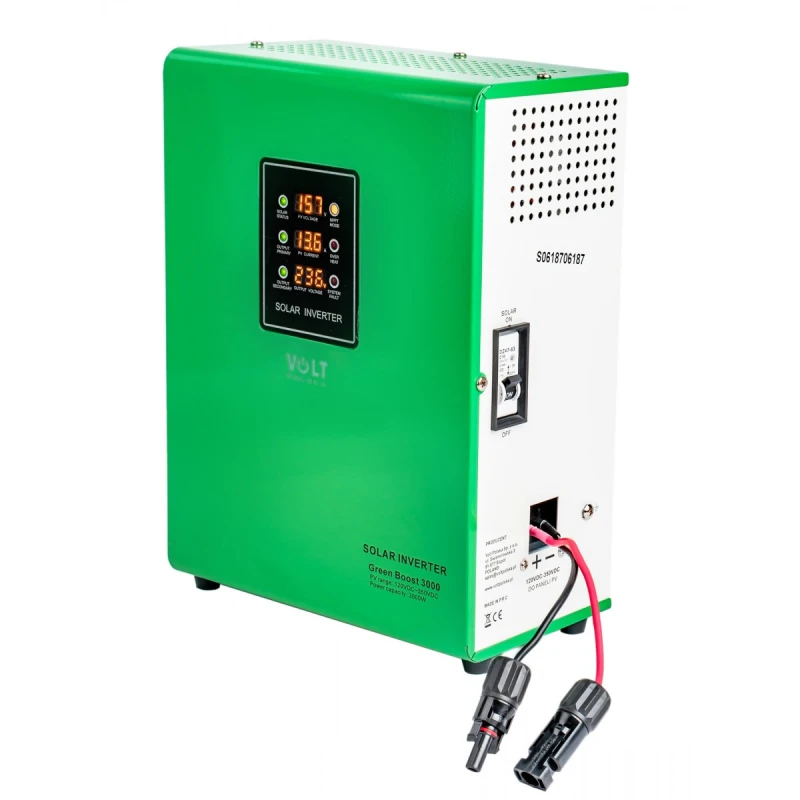

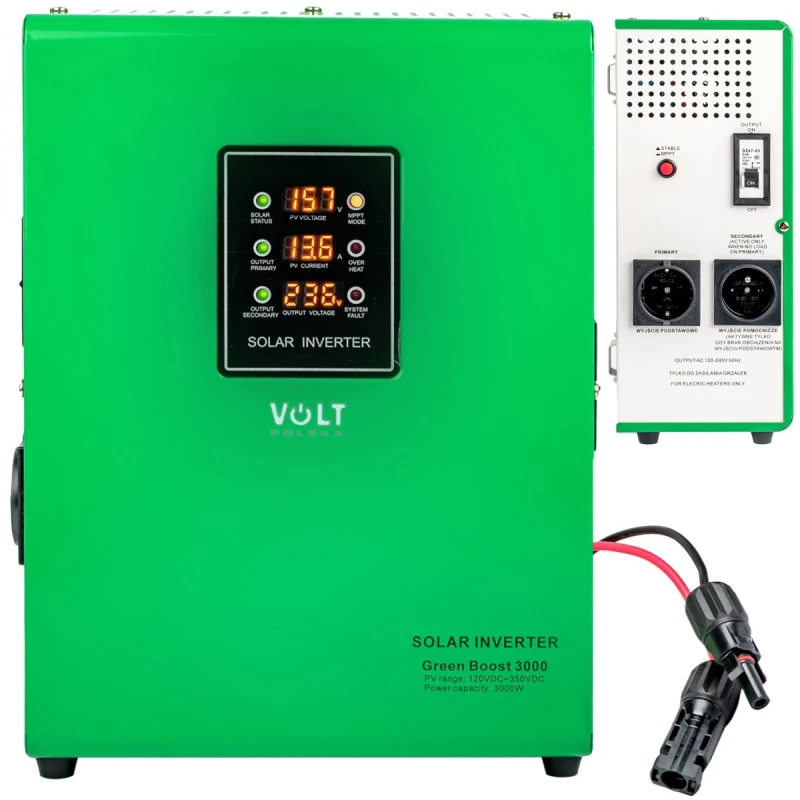

The solar converter GREEN BOOST MPPT-3000 boiler for water heating is used to power heating devices directly from solar panels.
The system is very simple and functional. A classic PV panel (250W - 400W) requires 4 to 9 connected in series and their total voltage is between 120V and 350V.
How does the GREEN BOOST MPPT 3000 converter work?
The direct current generated by the panels, which is not suitable for direct powering of heating devices, is converted into alternating current in the converter, which can be used to power heating devices.
What devices does the GREEN BOOST MPPT solar converter power?
Electric boilers
Radiators
Electric heaters
Electric mats
Floor heating
Maximum power: 3000W
Panel voltage range: 120VDC ~ 350VDC
Output voltage range: 120 - 245VAC/50Hz
Maximum current supplied to the device from the solar panels: 14A
Output voltage type: modified sine wave
Output voltage frequency: 50Hz
Power type (input): MC4 (female-male)
Input slot: 2 pcs
Overload/Short/Surge Protection: Yes
Overheating protection: 100°C
Operating temperature: 25°C ÷ 55°C
Efficiency:>94%
Cooling: active
Degree of protection: IP21
Dimensions: 311x232x140mm
Weight: 3.3 kg
| User manual ENG | 1.75MB | Download |
