SKU:LM-3048-WW
Manufacturer:
Lemlux
Image is for illustrative purposes only

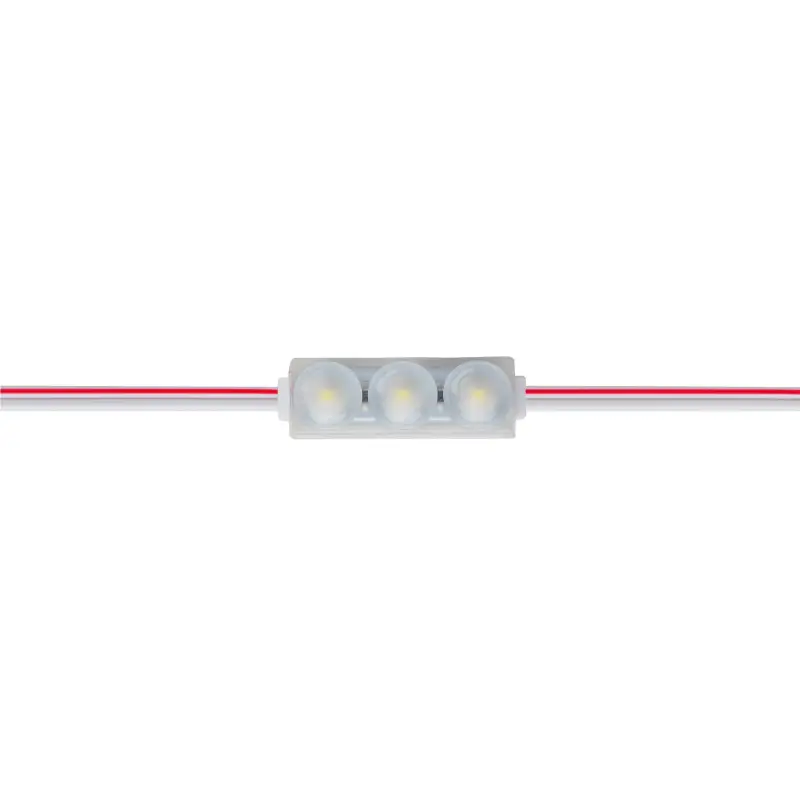

The LEMLUX LED module is a compact MINI series lighting solution designed for signage and advertising applications. The module operates at 12 V with a power consumption of 0.48 W, producing a 50 lm luminous flux. It features a 3000K warm white color temperature and a wide 170° beam angle to ensure uniform light distribution.
Built with an IP67 protection rating, this module is dust-tight and resistant to temporary immersion in water, making it suitable for both indoor and outdoor environments. The small dimensions of 30x10 mm allow for installation in narrow profiles and tight spaces.
Built with an IP67 protection rating, this module is dust-tight and resistant to temporary immersion in water, making it suitable for both indoor and outdoor environments. The small dimensions of 30x10 mm allow for installation in narrow profiles and tight spaces.
Brand: LEMLUX
Model: LM-3048-WW
Power: 0.48 W
Voltage: 12 V
Luminous Flux: 50 lm
Color Temperature: 3000K (warm white)
Beam Angle: 170°
Protection Class: IP67
Dimensions: 30 x 10 mm
Model: LM-3048-WW
Power: 0.48 W
Voltage: 12 V
Luminous Flux: 50 lm
Color Temperature: 3000K (warm white)
Beam Angle: 170°
Protection Class: IP67
Dimensions: 30 x 10 mm
