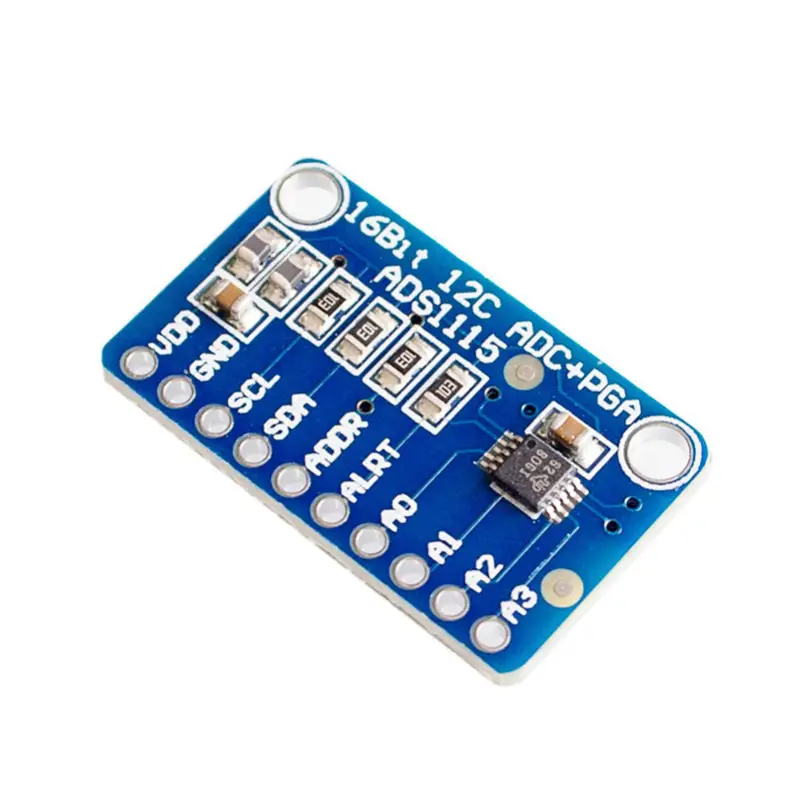

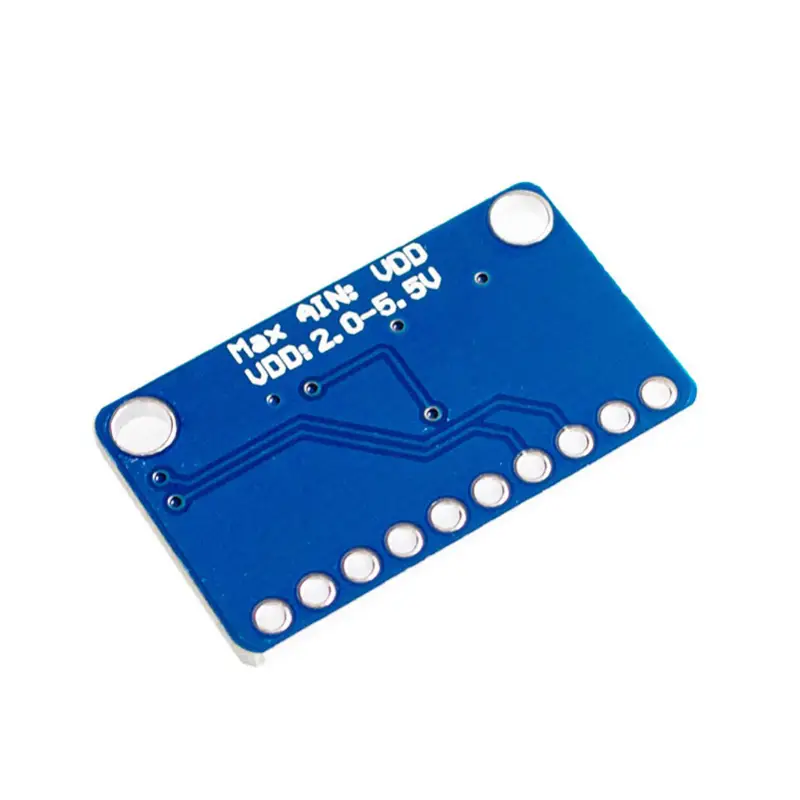

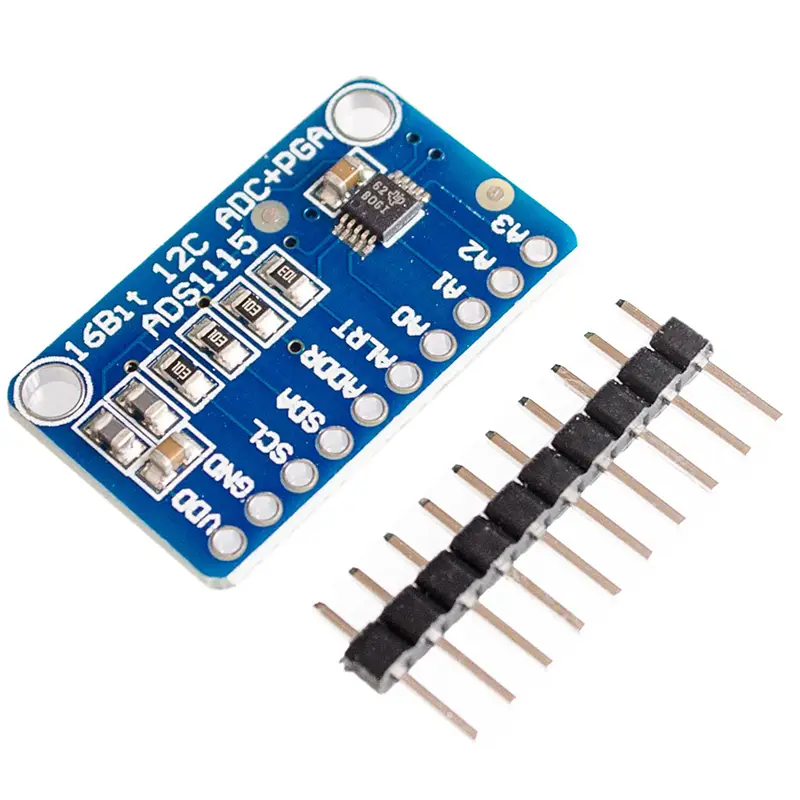

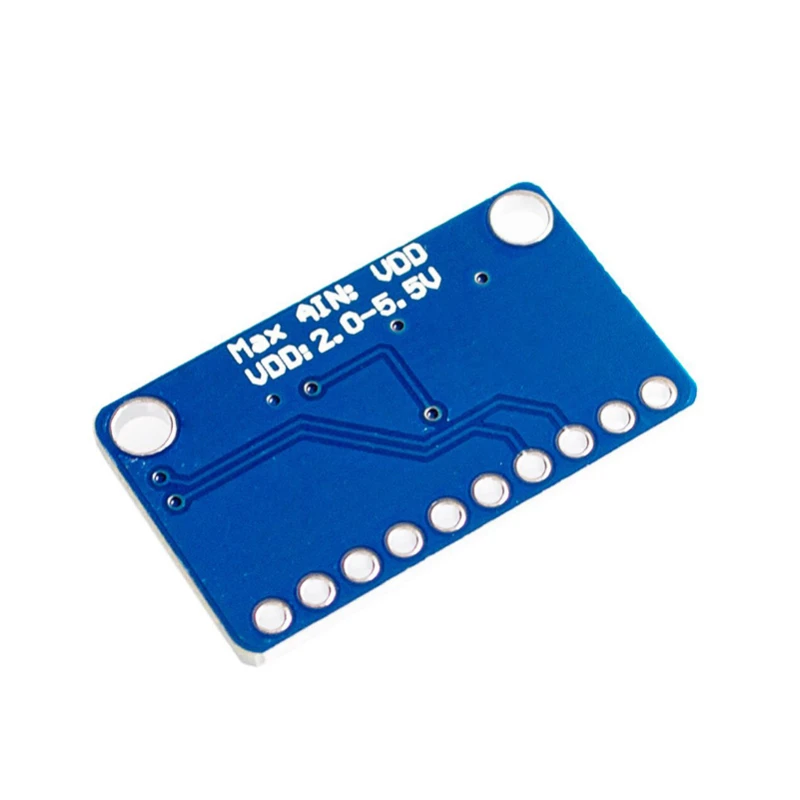

ADS1115 Module 16 Bit I2C ADC Development Board Pro Gain 4 Channel Amplifier Board–OKY3259-7
SKU:OKY3259-7
Manufacturer:Okystar
Image is for illustrative purposes only
This is a high-precision 16-bit analog-to-digital converter (ADC) module, offering a solution for microcontroller-based projects requiring accurate analog data acquisition. The module communicates via an I2C interface and can read data at a rate of up to 860 samples per second (SPS). It is versatile, supporting four single-ended input channels or two differential channels.
Key Features
An integrated programmable gain amplifier (PGA) allows for amplification of smaller signals up to 16 times, ensuring high-resolution measurement of both large and small signals. The module operates across a wide supply voltage range of 2.0V to 5.5V, making it compatible with most standard 3.3V and 5V processors. It features a built-in low-drift voltage reference and oscillator. A single-shot mode automatically powers down the device after a conversion, significantly reducing current consumption during idle periods.
Key Features
An integrated programmable gain amplifier (PGA) allows for amplification of smaller signals up to 16 times, ensuring high-resolution measurement of both large and small signals. The module operates across a wide supply voltage range of 2.0V to 5.5V, making it compatible with most standard 3.3V and 5V processors. It features a built-in low-drift voltage reference and oscillator. A single-shot mode automatically powers down the device after a conversion, significantly reducing current consumption during idle periods.
-
