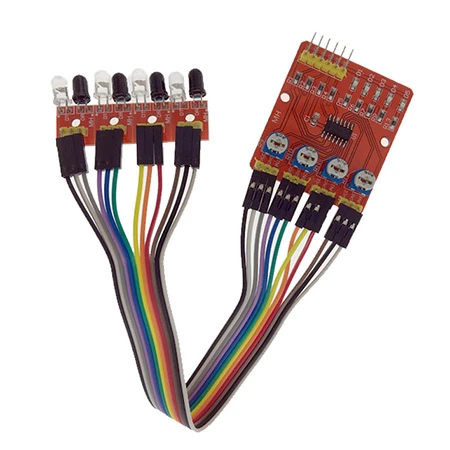

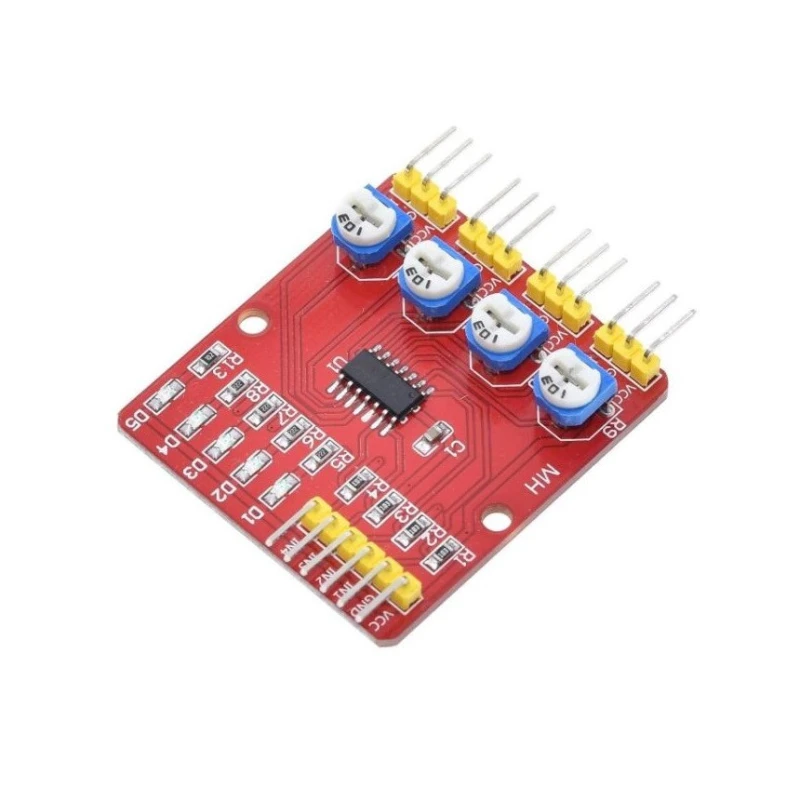

4-Channel Line Following Sensor 1mm...60cm 3.3/5V 6-pin TTL
SKU:OKY3518
Manufacturer:Okystar
Image is for illustrative purposes only

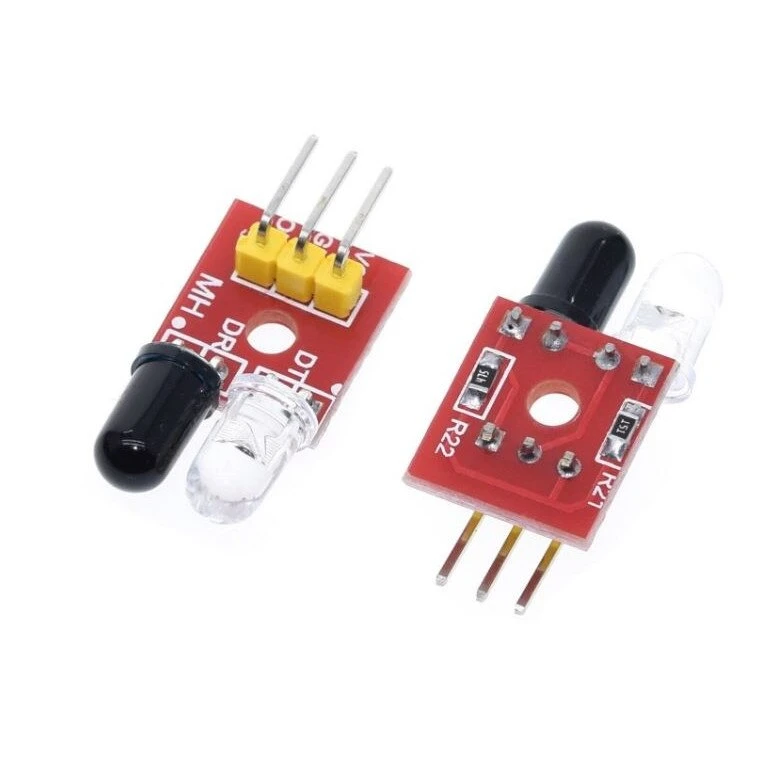

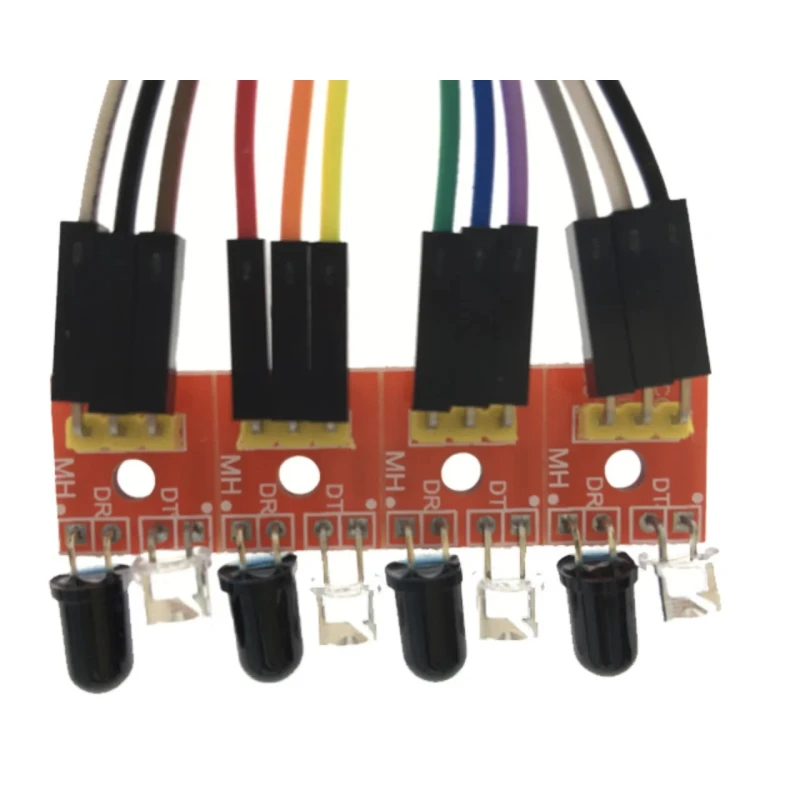

This module is designed for smart cars, robots, and automated machinery. It offers a versatile infrared detection system, utilizing an infrared transmitter, receiver, and other components as detectors.
Specifications
Product module: OKY3518
Operating voltage: DC 3.3V–5V
Operating current: A power supply providing more than 1A current is recommended.
Operating temperature: -10 °C to +50 °C
Mounting hole: M3 screws
Detection range: Adjustable from 1 mm to 60 cm. Performance is more stable when the object is closer to the sensor.
Dimensions: 42 mm × 38 mm × 12 mm (length × width × height)
Specifications
Product module: OKY3518
Operating voltage: DC 3.3V–5V
Operating current: A power supply providing more than 1A current is recommended.
Operating temperature: -10 °C to +50 °C
Mounting hole: M3 screws
Detection range: Adjustable from 1 mm to 60 cm. Performance is more stable when the object is closer to the sensor.
Dimensions: 42 mm × 38 mm × 12 mm (length × width × height)
-
