SKU:UT325F
Manufacturer:
Uni-T
New
Image is for illustrative purposes only

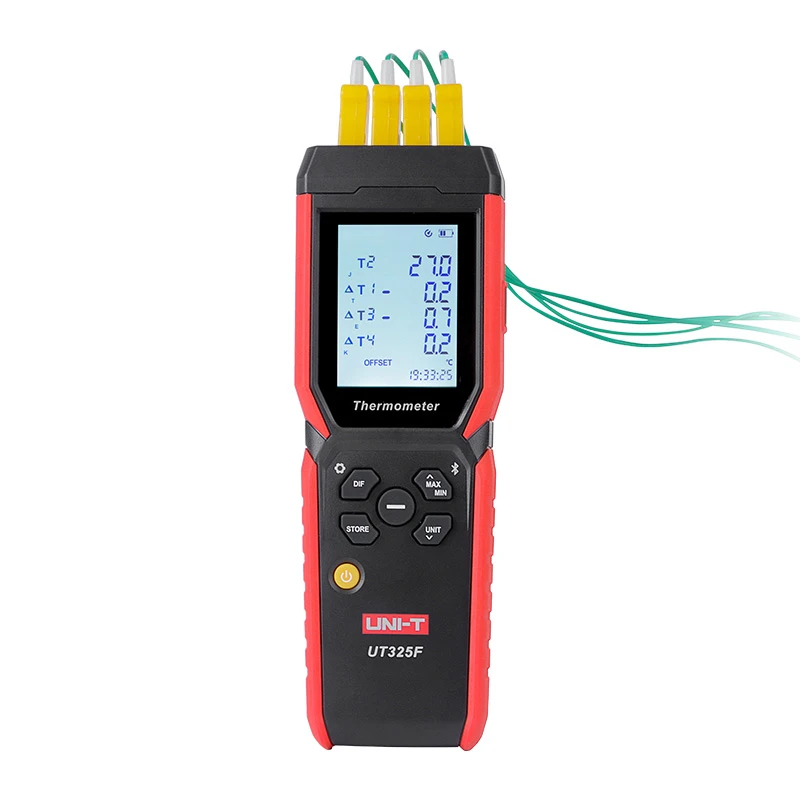

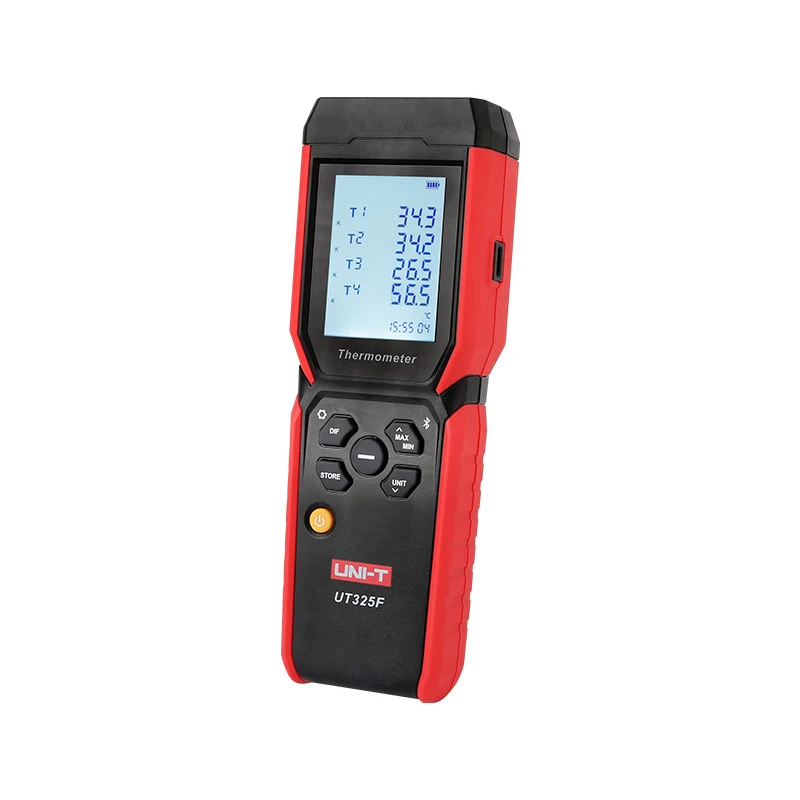

The UNI-T UT325F is a professional-grade 4-channel digital thermometer and data logger designed for high-precision temperature measurement using external thermocouples. It serves as a versatile tool for simultaneous monitoring and long-term data recording in demanding environments.
Key Features
- Supports seven thermocouple types (K, J, T, E, R, S, and N) to accommodate a wide range of temperature measurement requirements.
- Enables simultaneous monitoring of four independent channels, including the ability to display temperature differences between sensors.
- High-capacity internal memory stores up to 72,000 data groups for comprehensive logging and subsequent analysis.
- Integrated USB Type-C and Bluetooth connectivity allow for seamless data transfer to PCs or mobile devices via the iENV application.
- Durable construction features a rugged housing designed to withstand impacts and drops from up to 1 meter.
Applications
With its multi-channel precision and robust build, the UT325F is highly suitable for laboratory research, industrial thermal monitoring, metalworking processes, and structural temperature analysis in construction.
Key Features
- Supports seven thermocouple types (K, J, T, E, R, S, and N) to accommodate a wide range of temperature measurement requirements.
- Enables simultaneous monitoring of four independent channels, including the ability to display temperature differences between sensors.
- High-capacity internal memory stores up to 72,000 data groups for comprehensive logging and subsequent analysis.
- Integrated USB Type-C and Bluetooth connectivity allow for seamless data transfer to PCs or mobile devices via the iENV application.
- Durable construction features a rugged housing designed to withstand impacts and drops from up to 1 meter.
Applications
With its multi-channel precision and robust build, the UT325F is highly suitable for laboratory research, industrial thermal monitoring, metalworking processes, and structural temperature analysis in construction.
Accuracy: ±(0.2% + 0.5°C)
Data Logging: 72000 groups
Data Transmission: Type-C USB, Bluetooth
Dimensions: 178 x 63 x 38 mm
Display Resolution: 0.1°C/°F/K (<1000), 1.0°C/°F/K (≥1000)
Drop Proof: 1m
Functions: MIN/MAX/AVG, Data Hold, Temperature Difference, Offset value compensation
Measuring Range (Type E): -150.0°C ~ 1000°C
Measuring Range (Type J): -210.0°C ~ 1200°C
Measuring Range (Type K): -200.0°C ~ 1372°C
Measuring Range (Type N): -200.0°C ~ 1300°C
Measuring Range (Type R): 0°C ~ 1767°C
Measuring Range (Type S): 0°C ~ 1767°C
Measuring Range (Type T): -250.0°C
Data Logging: 72000 groups
Data Transmission: Type-C USB, Bluetooth
Dimensions: 178 x 63 x 38 mm
Display Resolution: 0.1°C/°F/K (<1000), 1.0°C/°F/K (≥1000)
Drop Proof: 1m
Functions: MIN/MAX/AVG, Data Hold, Temperature Difference, Offset value compensation
Measuring Range (Type E): -150.0°C ~ 1000°C
Measuring Range (Type J): -210.0°C ~ 1200°C
Measuring Range (Type K): -200.0°C ~ 1372°C
Measuring Range (Type N): -200.0°C ~ 1300°C
Measuring Range (Type R): 0°C ~ 1767°C
Measuring Range (Type S): 0°C ~ 1767°C
Measuring Range (Type T): -250.0°C
-
