4mm banana socket for panel 36A Green
SKU:PJP3230-I-V
New

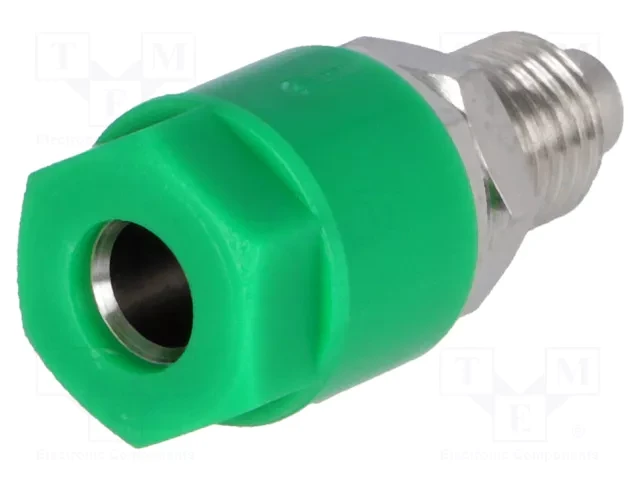

Image is for illustrative purposes only
This is an insulated 4mm banana socket from ELECTRO-PJP, designed for secure panel mounting. Its robust construction and insulation make it suitable for various electrical connection needs.
Key Features
- Insulated design for safe mounting on conductive panels.
- 4mm diameter banana socket.
- Rated for a maximum current of 36A.
- Supports operating voltages up to 30V AC or 60V DC.
- Features durable nickel-plated brass contacts.
- Panel mounts using a screw, requiring an Ø6.0 mm hole.
- Wire connection is made via solder.
Applications
Ideal for use in test and measurement equipment, and for building or repairing custom panels and enclosures where a reliable 4mm banana connection is needed.
Color: Green
Conductor Material: Nickel-plated brass
Connector Type: 4mm banana socket
Connector Variant: Insulated
Contact Plating: Nickel plated
Mounting: on panel, screw, soldered
Operating Temperature: -20°C to 80°C
Overall Length: 22 mm
Rated Current: 36A
Rated Voltage: 30V AC / 60V DC
Thread: M6
