5-in-1 Controller (Matter Over WiFi + 2.4GHz)
SKU:SM5-MIBOXER
Manufacturer:MiBoxer
The MiBoxer SM5 is a versatile 5-in-1 LED controller designed for comprehensive smart lighting integration. Certified with Matter Over WiFi, it provides seamless compatibility across major smart home ecosystems.
Key Features

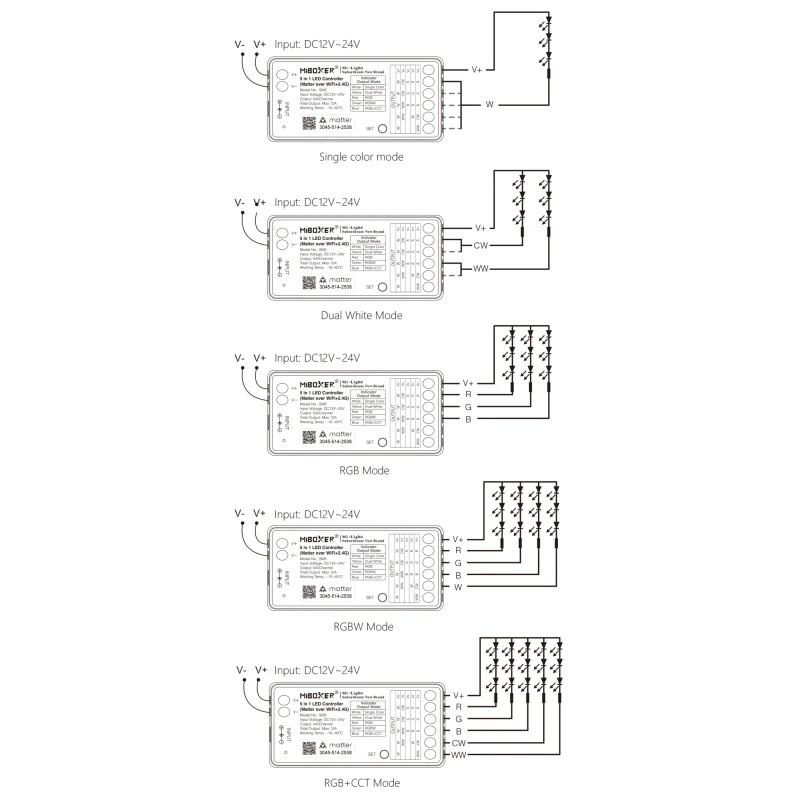

- 5-in-1 Universal Control: Supports Single Color, CCT (Tunable White), RGB, RGBW, and RGBCCT configurations.
- Matter Integration: Utilizes Matter Over WiFi protocol for wide compatibility and simple QR-code setup.

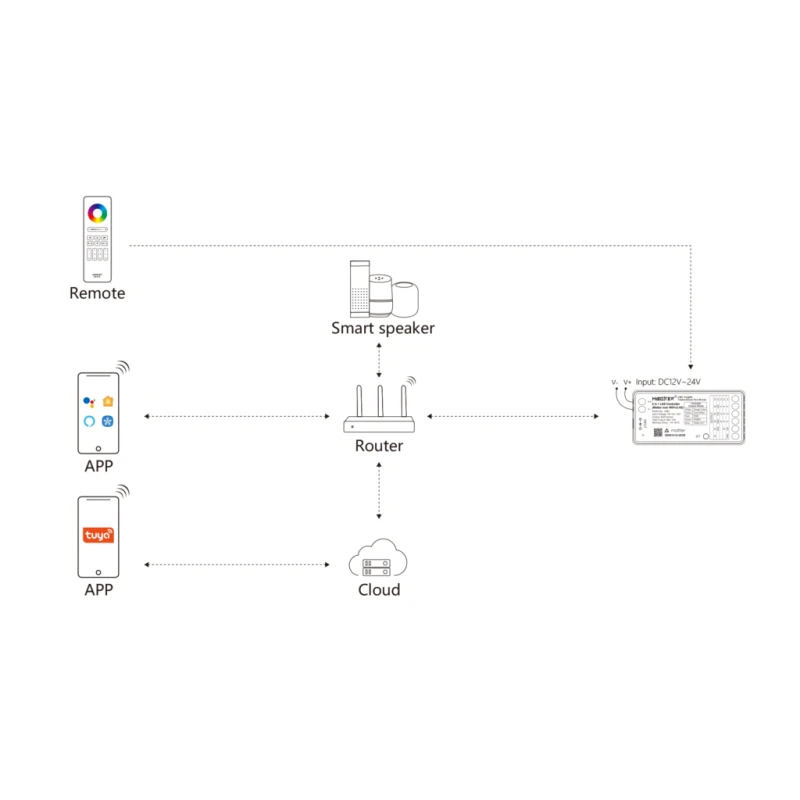

- Broad Ecosystem Support: Seamlessly integrates with Apple Home Kit, Amazon Alexa, Google Home, SmartThings, and Tuya Smart.
- Voice Control: Ready for use with Siri, Google Assistant, and Alexa.
- RF Remote Capability: Equipped with 2.4G RF communication, allowing pairing of up to 12 MiBoxer RF remote controls with a range up to 30 meters.
- Dynamic Modes: Includes 18 built-in dynamic lighting effects.
- Advanced Networking: Features automatic signal forwarding and synchronization to ensure consistent dynamic effects across multiple connected fixtures.
- DND Function: Supports "Do Not Disturb" mode.
Key Features
- 5-in-1 Universal Control: Supports Single Color, CCT (Tunable White), RGB, RGBW, and RGBCCT configurations.
- Matter Integration: Utilizes Matter Over WiFi protocol for wide compatibility and simple QR-code setup.
- Broad Ecosystem Support: Seamlessly integrates with Apple Home Kit, Amazon Alexa, Google Home, SmartThings, and Tuya Smart.
- Voice Control: Ready for use with Siri, Google Assistant, and Alexa.
- RF Remote Capability: Equipped with 2.4G RF communication, allowing pairing of up to 12 MiBoxer RF remote controls with a range up to 30 meters.
- Dynamic Modes: Includes 18 built-in dynamic lighting effects.
- Advanced Networking: Features automatic signal forwarding and synchronization to ensure consistent dynamic effects across multiple connected fixtures.
- DND Function: Supports "Do Not Disturb" mode.
Communication Protocol: WiFi + 2.4G RF
Control Distance (2.4G RF): 30m

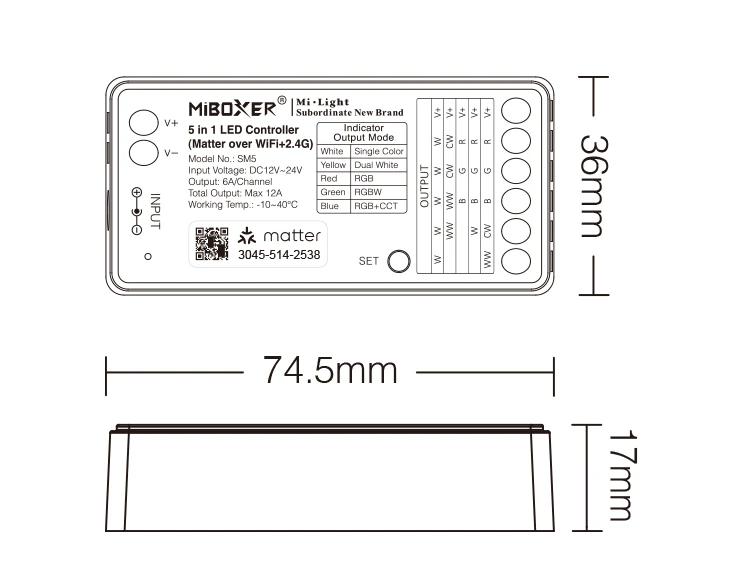

Dimensions: 74.5 x 36 x 17 mm
Input Voltage: DC12-24V
Output Current: 6A / Single channel
Total Output: Max 12A
Waterproof Rating: IP20
Wireless Protocol: IEEE 802.11b/g/n 2.4GHz
Working Temperature: -10~40°C
Control Distance (2.4G RF): 30m
Dimensions: 74.5 x 36 x 17 mm
Input Voltage: DC12-24V
Output Current: 6A / Single channel
Total Output: Max 12A
Waterproof Rating: IP20
Wireless Protocol: IEEE 802.11b/g/n 2.4GHz
Working Temperature: -10~40°C
