SKU:67270-GBY
Manufacturer:
Goobay
Image is for illustrative purposes only

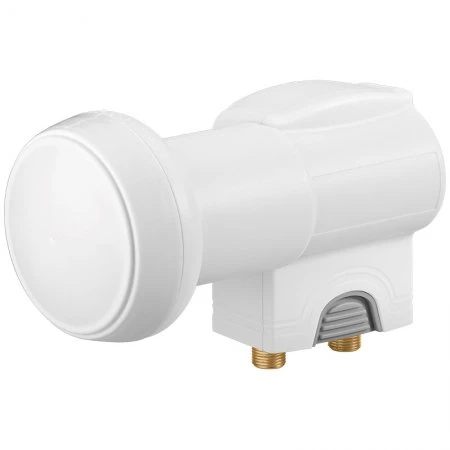

Digital SAT LNB (DVB-S2) is designed for 2 participants, supporting 8K, 4K, UHD, HDTV, and 3D signals. It serves as a reception system for connecting satellite systems to two independent receivers or TVs. This LNB is suitable for direct connection without the need for a multiswitch.
The unit features a fully encapsulated, weatherproof housing. Gold-plated F-connectors are protected by an additional pull-out wetness shield. A low 0.1 dB noise figure ensures higher signal strength and reception quality.
The unit features a fully encapsulated, weatherproof housing. Gold-plated F-connectors are protected by an additional pull-out wetness shield. A low 0.1 dB noise figure ensures higher signal strength and reception quality.
Output, type: F female
Max. subscriber: 2
Output, contact material: gold-plated
Number of outputs: 2
Noise figure: 0.1 dB
Input frequency low band: 10.70 - 11.70 GHz
Input frequency high band: 11.70 - 12.75 GHz
Output frequency low band: 950 - 1.950 MHz
Output frequency high band: 1.100 - 2.150 MHz
Signal amplification Legacy: 52 - 62 (typ. 57) dB
L.O. frequency Low: 9.75 GHz
L.O. frequency High: 10.6 GHz
Transmission modes: DVB-S, DVB-S2
Diameter Feedhorn: 40 mm
Color: grey, white
Markings: CE, WEEE
Max. subscriber: 2
Output, contact material: gold-plated
Number of outputs: 2
Noise figure: 0.1 dB
Input frequency low band: 10.70 - 11.70 GHz
Input frequency high band: 11.70 - 12.75 GHz
Output frequency low band: 950 - 1.950 MHz
Output frequency high band: 1.100 - 2.150 MHz
Signal amplification Legacy: 52 - 62 (typ. 57) dB
L.O. frequency Low: 9.75 GHz
L.O. frequency High: 10.6 GHz
Transmission modes: DVB-S, DVB-S2
Diameter Feedhorn: 40 mm
Color: grey, white
Markings: CE, WEEE
-
