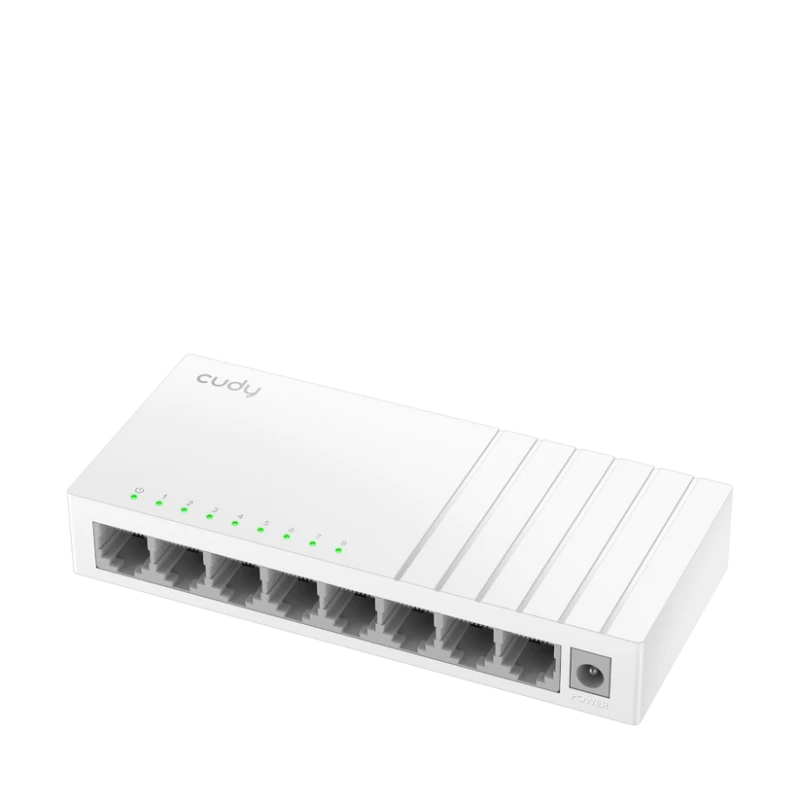

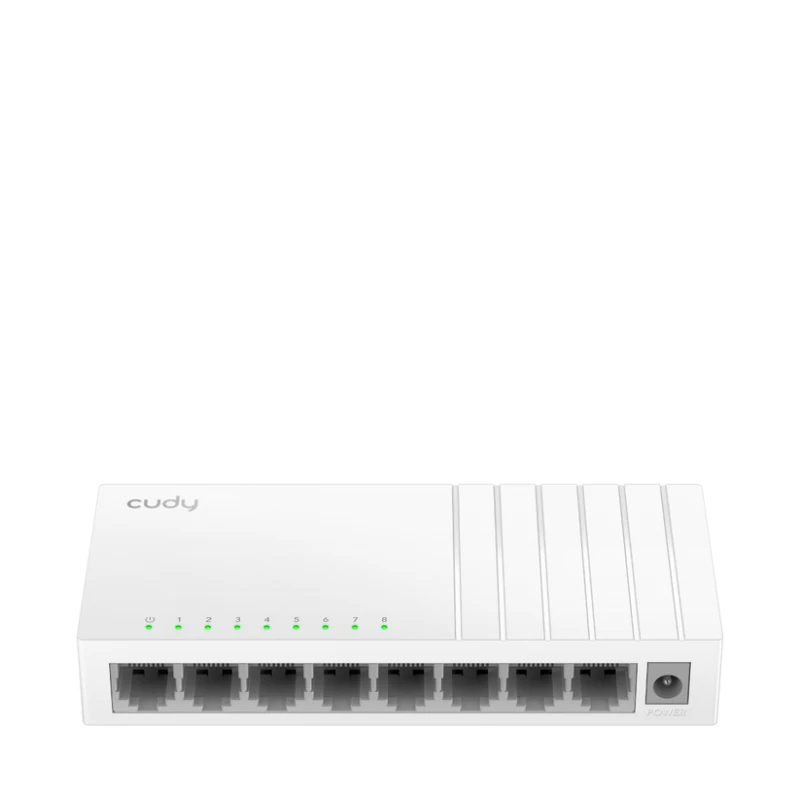

8-Port 10/100 Mbps Unmanaged Switch
SKU:CUDY-FS108D
This 8-port unmanaged Fast Ethernet switch (10/100 Mbps) is designed for reliable expansion of wired networks in home and small office environments. Its compact design ensures simple integration into existing setups.
Key Features
- 8-Port Fast Ethernet Connectivity: Supports 10/100 Mbps data transfer.
- Unmanaged Plug and Play: Requires zero configuration for immediate operation.
- Enhanced Network Stability: Utilizes a packet buffer to prevent data loss and ensure reliable transmission.
- Energy Efficient Operation: Features a low maximum power consumption of 1 W (0.25 W in standby mode).
- Flexible Installation: Compact form factor allows placement inside cable ducts or telecom boxes.
- Wall Mount Ready: Includes two mounting holes on the base for secure wall installation.
Applications
Ideal for expanding existing wired networks in residential or small office settings where stable 10/100 Mbps connectivity is required.
Key Features
- 8-Port Fast Ethernet Connectivity: Supports 10/100 Mbps data transfer.
- Unmanaged Plug and Play: Requires zero configuration for immediate operation.
- Enhanced Network Stability: Utilizes a packet buffer to prevent data loss and ensure reliable transmission.
- Energy Efficient Operation: Features a low maximum power consumption of 1 W (0.25 W in standby mode).
- Flexible Installation: Compact form factor allows placement inside cable ducts or telecom boxes.
- Wall Mount Ready: Includes two mounting holes on the base for secure wall installation.
Applications
Ideal for expanding existing wired networks in residential or small office settings where stable 10/100 Mbps connectivity is required.
Model: FS108D 3.0
Ports: 8 x 10/100 Mbps RJ45 with auto-negotiation
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching Capacity: 1.6 Gbps
Packet Forwarding Rate: 1.1904 Mpps
Transmission Method: Store-and-Forward
MAC Address Table: 512 entries
Packet Buffer: 448 Kbit
Input Power: DC 5V⎓0.55A
Power Consumption: Max. 1W, Standby 0.25W
Dimensions (L×W×H): 86.5×53×23 mm
Mounting: Desktop, Wall-mount
Features: Auto-MDI/MDIX, Plug and Play, Fanless
Ports: 8 x 10/100 Mbps RJ45 with auto-negotiation
Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching Capacity: 1.6 Gbps
Packet Forwarding Rate: 1.1904 Mpps
Transmission Method: Store-and-Forward
MAC Address Table: 512 entries
Packet Buffer: 448 Kbit
Input Power: DC 5V⎓0.55A
Power Consumption: Max. 1W, Standby 0.25W
Dimensions (L×W×H): 86.5×53×23 mm
Mounting: Desktop, Wall-mount
Features: Auto-MDI/MDIX, Plug and Play, Fanless
