Arduino Leonardo

  • SKU: A000057
  • Arduino

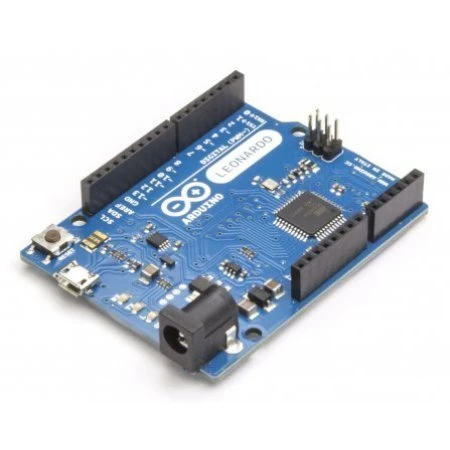

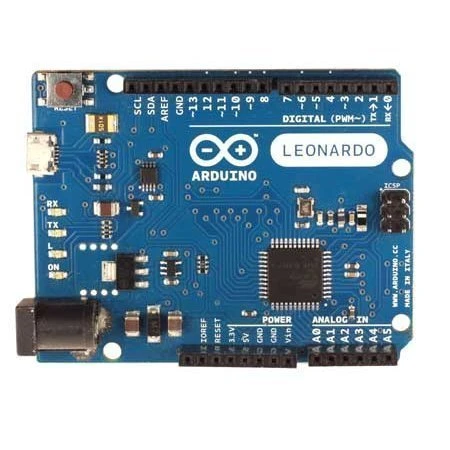

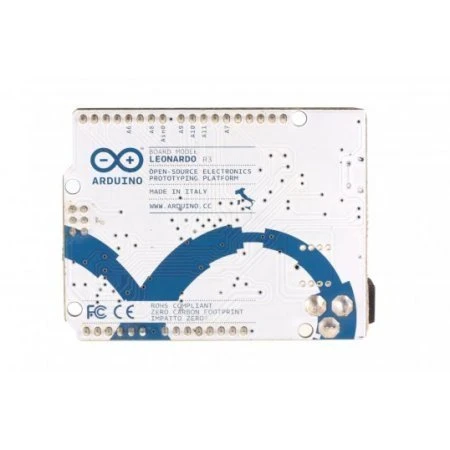

The Arduino Leonardo is built on the ATmega32u4 microcontroller (see datasheet). It has 20 digital inputs/outputs (seven of which can be used as PWM and 12 as analog inputs), a 16MHz crystal, a microUSB connector for filling sketches and power, a 5V power connector, an ICSP connector, a Reset button. Leonardo is different from previous boards in that it has only one microcontroller, which includes a software converter USB, which allows you to connect to a computer not only as a virtual COM port, but also as a mouse or keyboard.

Microcontroller:ATmega32u4
Clock Speed:16 MHz
Flash Memory:32 KB
Digital I/O Pins:20
Analog Input Pins:12
Operating Voltage:5V
Input Voltage (recommended):7-12V
Input Voltage (limit):6-20V
PWM Digital I/O Pins:7
DC Current per I/O Pin:40 mA
DC Current for 3.3V Pin:50 mA
Flash Memory for Bootloader:4 KB
SRAM:2.5 KB
EEPROM:

1 KB


Guide to the Arduino Leonardo and Micro Download
DatasheetDownload
