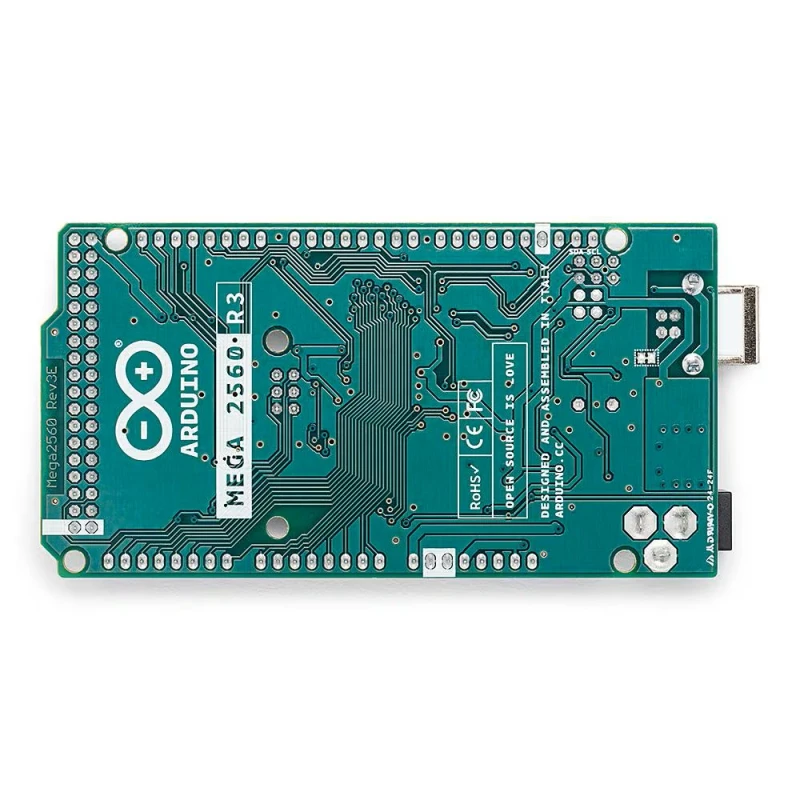

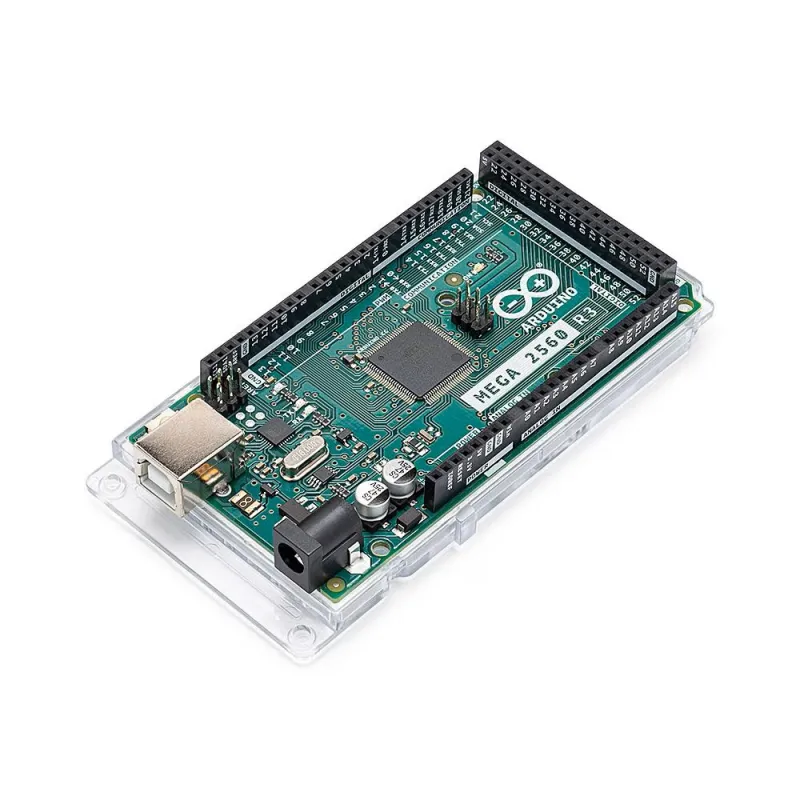

Arduino Mega2560 Rev3
SKU:A000067
Manufacturer:Arduino
Image is for illustrative purposes only

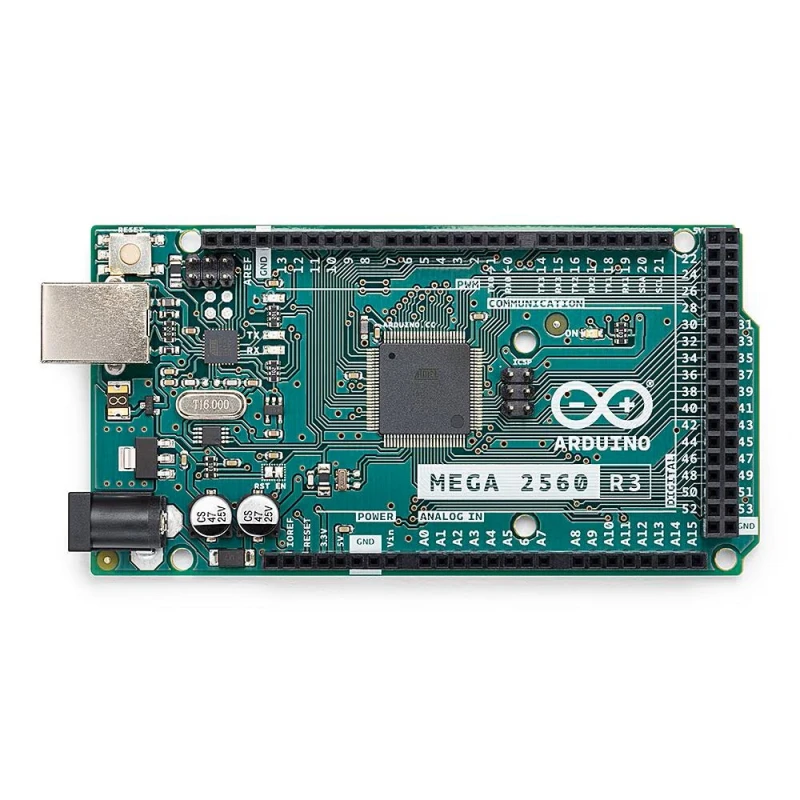

The Arduino Mega 2560 Rev3 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila. The Mega 2560 is an update to the Arduino Mega, which it replaces.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila. The Mega 2560 is an update to the Arduino Mega, which it replaces.
Microcontroller: ATmega2560
Clock Speed: 16 MHz
Flash Memory: 256 KB
Digital I/O Pins: 54
Analog Input Pins: 16
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20V
PWM Digital I/O Pins: 14
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory for Bootloader: 8 KB
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
Flash Memory: 256 KB
Digital I/O Pins: 54
Analog Input Pins: 16
Operating Voltage: 5V
Input Voltage (recommended): 7-12V
Input Voltage (limit): 6-20V
PWM Digital I/O Pins: 14
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory for Bootloader: 8 KB
SRAM: 8 KB
EEPROM: 4 KB
-
