Fan 172x151x51mm 230VAC ball
SKU:A2175HBT-T
Manufacturer:Sunon

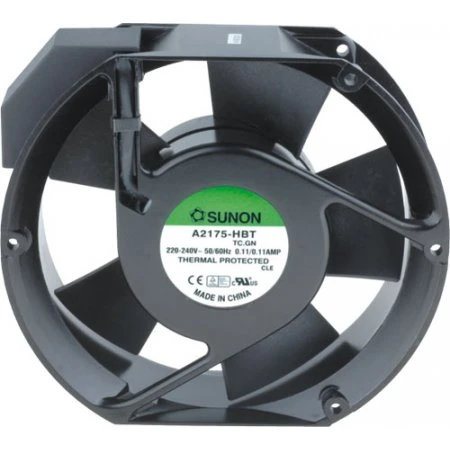

Image is for illustrative purposes only
The Sunon AC axial fan is a high-performance cooling solution engineered for the demanding thermoregulation needs of industrial equipment and technical systems. Built for longevity and endurance, this unit features premium ball bearings that ensure reliable, continuous operation even in challenging environments.
The construction consists of a robust aluminum enclosure and a high-quality thermoplastic impeller, meeting strict UL94V-0 flammability standards. Operating on a standard 230V AC supply, it delivers exceptional airflow efficiency, making it an ideal choice for projects where effective heat management and high durability are paramount.
The construction consists of a robust aluminum enclosure and a high-quality thermoplastic impeller, meeting strict UL94V-0 flammability standards. Operating on a standard 230V AC supply, it delivers exceptional airflow efficiency, making it an ideal choice for projects where effective heat management and high durability are paramount.
Manufacturer: SUNON
Type of fan: AC
Kind of fan: axial
Fan dimensions: 171x151x51mm
Power consumption: 43W
Current rating: 0.25A
Fan efficiency: 302m3/h (±10%)
Noise level: 52dBA
Kind of bearing: ball
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Frequency: 50Hz
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: connectors
Leads dimensions: 2.8x0.3mm
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Fan motor: shaded-pole
Static pressure: 9.65mm H2O
Supply voltage: 230V AC
Gross weight: 950.4 g
Type of fan: AC
Kind of fan: axial
Fan dimensions: 171x151x51mm
Power consumption: 43W
Current rating: 0.25A
Fan efficiency: 302m3/h (±10%)
Noise level: 52dBA
Kind of bearing: ball
Rotational rate/speed: 2600rpm
Current and power consumption tolerance: ±15%
Frequency: 50Hz
Min. insulation resistance: 500MΩ
Impeller material: thermoplastic
Enclosure material: aluminium
Leads: connectors
Leads dimensions: 2.8x0.3mm
Operating temperature: -10...70°C
Flammability rating: UL94V-0
Fan motor: shaded-pole
Static pressure: 9.65mm H2O
Supply voltage: 230V AC
Gross weight: 950.4 g
