SKU:QA001
Manufacturer:
Acebott
New
Image is for illustrative purposes only

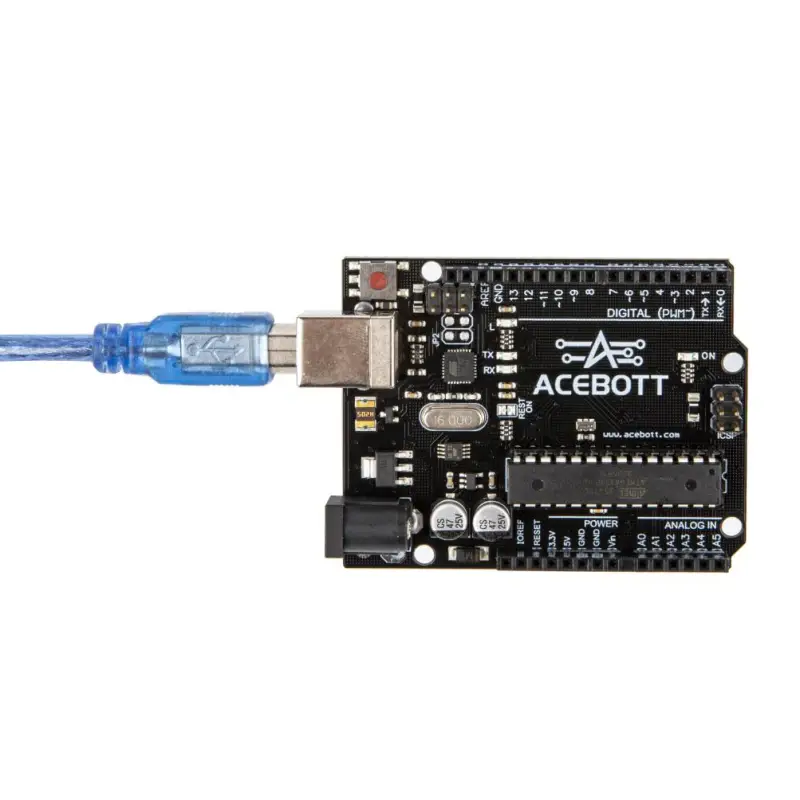

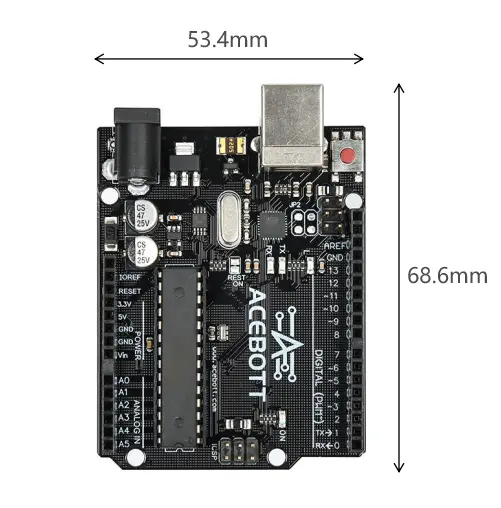

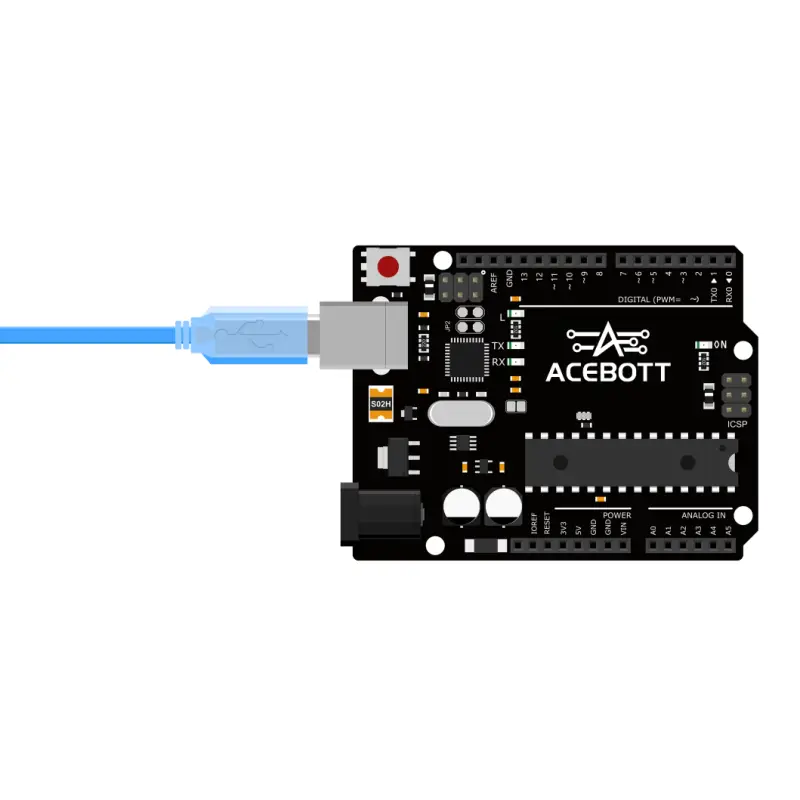

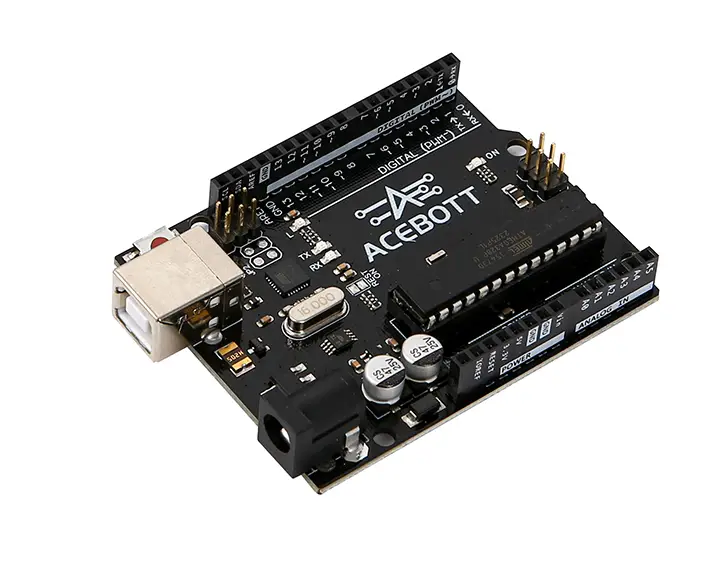

Acebott QA001 UNO R3 is an ATmega328P development board for electronics and prototyping projects. It uses an ATmega16U2 USB interface, provides 14 digital I/O pins including 6 PWM outputs, and has 6 analog inputs. The UNO R3 layout includes SDA, SCL and IOREF pins and accepts standard UNO R3 form-factor shields. A 1 m USB cable is included.
Microcontroller: ATmega328P
USB interface chip: ATmega16U2
Operating voltage: 5 V
Recommended input voltage: 7-12 V
Input voltage limits: 6-20 V
Digital I/O pins: 14, including 6 PWM outputs
Analog inputs: 6
Maximum current per I/O pin: 40 mA
Maximum 3.3 V output current: 50 mA
Flash memory: 32 KB, of which 0.25 KB is used by the bootloader
SRAM: 2 KB
EEPROM: 1 KB
Clock speed: 16 MHz
In the box: 1 m USB cable
USB interface chip: ATmega16U2
Operating voltage: 5 V
Recommended input voltage: 7-12 V
Input voltage limits: 6-20 V
Digital I/O pins: 14, including 6 PWM outputs
Analog inputs: 6
Maximum current per I/O pin: 40 mA
Maximum 3.3 V output current: 50 mA
Flash memory: 32 KB, of which 0.25 KB is used by the bootloader
SRAM: 2 KB
EEPROM: 1 KB
Clock speed: 16 MHz
In the box: 1 m USB cable
-
