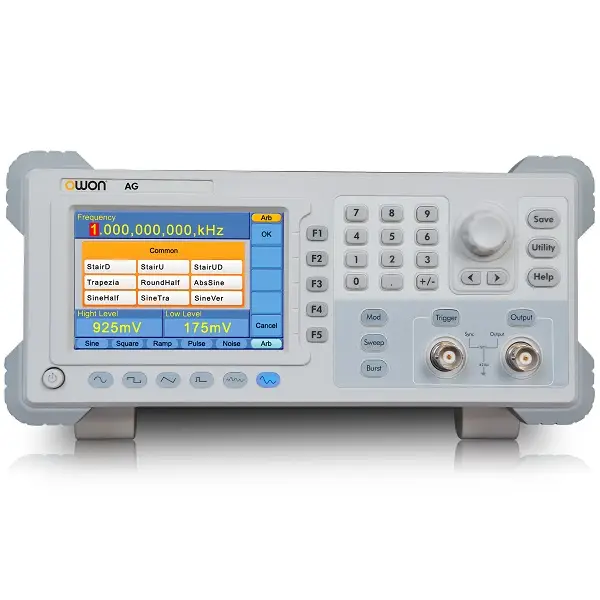

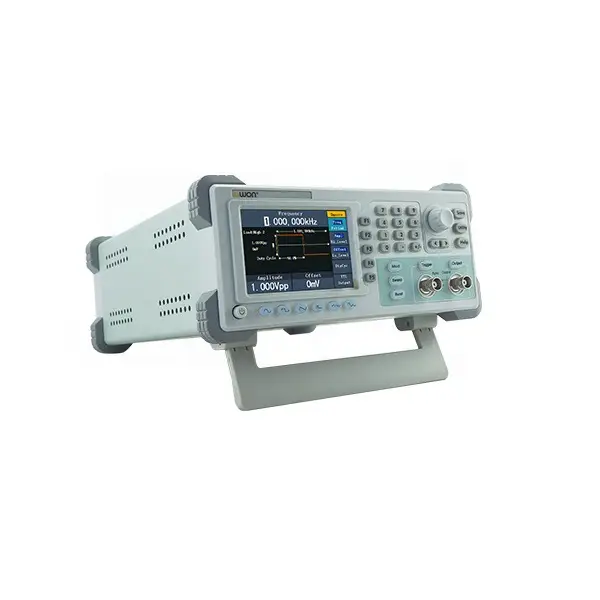

Signal Generator 1ch 1uHz-5MHz LCD AM FM PM FSK SWE

SKU:AG051
Manufacturer:OWON
Signal Generator 1ch 1uHz-5MHz LCD AM FM PM FSK SWE
Image is for illustrative purposes only
Advanced DDS technology: upto 10MHz frequency output
Sample rate: 125MS/s
Frequency resolution: 1μHz
Vertical Resolution: 14 bits
Arb waveform length: 8K

Comprehensive Waveform Output: 5 basic waveforms, and 45 built-in arbitrary waveforms

Comprehensive Modulation Functions: AM, FM, PM, FSK, Sweep, and Burst

SCPI, and LabVIEW supported

LCD Height: 4''
LCD Resolution: 480 x 320 pixels

could work with OWON SDS Series DSO smoothly

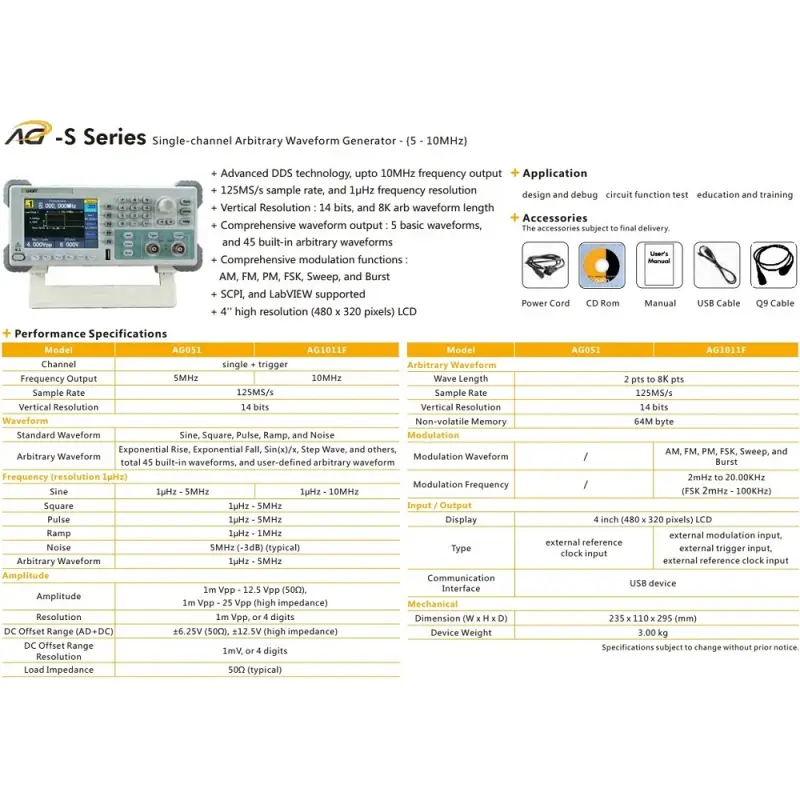

Channel: single + trigger
Frequency Output: 5MHz 10MHz
Sample Rate: 125MS/s
Vertical Resolution: 14 bits
Standard Waveform: Sine, Square, Pulse, Ramp, and Noise
Arbitrary Waveform: Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 45 built-in waveforms, and user-defined arbitrary waveform
Sine: 1μHz - 5MHz 1μHz - 10MHz
Square: 1μHz - 5MHz
Pulse: 1μHz - 5MHz
Ramp: 1μHz - 1MHz
Noise: 5MHz (-3dB) (typical)
Arb: 1μHz - 5MHz
Amplitude: 1m Vpp - 12.5 Vpp (50Ω), 1m Vpp - 25 Vpp (high impedance)
Resolution: 1m Vpp, or 4 digits
DC Offset Range (AD+DC): ±6.25V (50Ω), ±12.5V (high impedance)
DC Offset Range Resolution: 1mV, or 4 digits
Load Impedance: 50Ω (typical)
Wave Length: 2 pts to 8K pts
Sample Rate: 125MS/s
Vertical Resolution: 14 bits
Non-volatile Memory: 64M bytes
Modulation Waveform: / AM, FM, PM, FSK, Sweep, and Burst / AM, FM, PM, FSK, Sweep, and Burst
Modulation Frequency: / 2mHz to 20.00KHz  (FSK 2mHz - 100KHz) / 2mHz to 20.00KHz  (FSK 2mHz - 100KHz)
Input Impedance: 50 kΩ Output Impedance: <2 Ω
Max Input Voltage: 2.2Vpp Gain: X 10
Max Output Voltage: 22 Vpp Offset: <7%
Output Slew Rate: 10V/us Bandwidth (at full power): DC 100kHz
Max Output Power: 10 W
Display: 4 inch (480 x 320 pixels) LCD

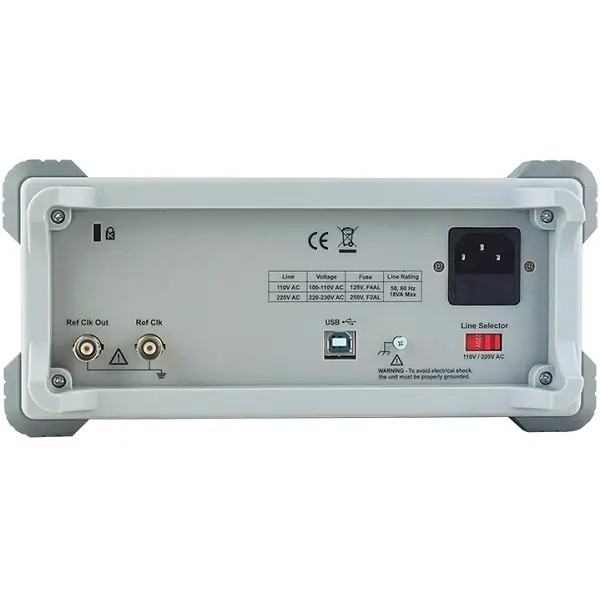

Type: external reference clock input external modulation input,
Type: external trigger input,
Type: and externa
