SKU:AJAX-5288
Manufacturer:
Ajax Systems Inc
Image is for illustrative purposes only

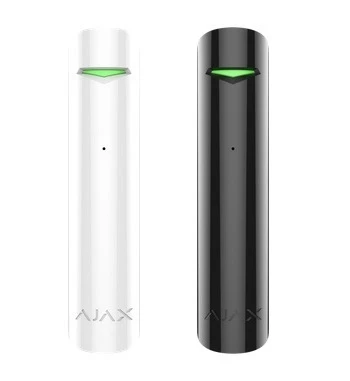

Ajax GlassProtect - World's smallest glass break detector.
Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage.
Operating range from the hub up to 2000 meters in the open area or through multiple floors of a building/business center.
Glass break detection distance - up to 9 meters.
Can be connected to an external opening detector.
Can be connected to a third-party security system using Ajax integration modules uartBridge and ocBridge / ocBridge Plus.
Authentication to prevent forgery.
Tamper-protected casing.
Detector checks at intervals starting from 12 seconds.
Protection against jamming.
Communication channel encryption.
The detector maintains a two-way connection with the hub for testing and configuration.
Energy saving by adjusting signal transmission power according to the distance from the hub.
Battery life is up to 7 years with minimal polling.
3 levels of detector sensitivity.
Installation with SmartBracket mount without dismantling the casing.
Signal quality and detection zone are tested remotely.
Connection to Ajax Hub control panel with a QR code in one click.
Link to product page http://ajax.ee/products/glassprotect
Small wireless detector that notifies of glass being broken by intruders. It is installed at a distance of 9 m from the window and filters events that cause false alarms about breakage.
Operating range from the hub up to 2000 meters in the open area or through multiple floors of a building/business center.
Glass break detection distance - up to 9 meters.
Can be connected to an external opening detector.
Can be connected to a third-party security system using Ajax integration modules uartBridge and ocBridge / ocBridge Plus.
Authentication to prevent forgery.
Tamper-protected casing.
Detector checks at intervals starting from 12 seconds.
Protection against jamming.
Communication channel encryption.
The detector maintains a two-way connection with the hub for testing and configuration.
Energy saving by adjusting signal transmission power according to the distance from the hub.
Battery life is up to 7 years with minimal polling.
3 levels of detector sensitivity.
Installation with SmartBracket mount without dismantling the casing.
Signal quality and detection zone are tested remotely.
Connection to Ajax Hub control panel with a QR code in one click.
Link to product page http://ajax.ee/products/glassprotect
Product type: Wireless glass break detector
Color: White
Installation method: Indoors
Compatibility: Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
Detection type: Wireless
Sensing element: Electret microphone
Break detection distance: Up to 9 m
Alarm signal delivery time: 0.15 s
Sensitivity: Adjustable, 3 levels
Detection angle: 180°
Power supply: Battery: CR123A battery, 3 V
Battery life: Up to 7 years
Jeweller radio technology: Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices: Yes
Dimensions: 20 x 20 x 90 mm
Connection type: Wireless
Sensitive element: Electret microphone
Trigger threshold: Up to 9 m
Horizontal detection angle: 180°
Vertical detection angle: 180°
Connector for wired sensors: Yes
Communication protocol: Jeweller (868.0−868.6 MHz)
Radio signal power: 20 mW
Tamper protection: Yes
Installation type: Surface mounting
Power element type: CR123A
Power: 3 V
Power element life: Up to 7 years
Operating temperature range: from 0°C to +50°C
Permissible humidity: up to 90%.
INCLUDED: AJAX Break detector; External terminal; CR123A battery; Mounting kit; Instructions.
Color: White
Installation method: Indoors
Compatibility: Operates with Hub, Hub Plus, Hub 2, ReX, ocBridge Plus, uartBridge
Detection type: Wireless
Sensing element: Electret microphone
Break detection distance: Up to 9 m
Alarm signal delivery time: 0.15 s
Sensitivity: Adjustable, 3 levels
Detection angle: 180°
Power supply: Battery: CR123A battery, 3 V
Battery life: Up to 7 years
Jeweller radio technology: Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices: Yes
Dimensions: 20 x 20 x 90 mm
Connection type: Wireless
Sensitive element: Electret microphone
Trigger threshold: Up to 9 m
Horizontal detection angle: 180°
Vertical detection angle: 180°
Connector for wired sensors: Yes
Communication protocol: Jeweller (868.0−868.6 MHz)
Radio signal power: 20 mW
Tamper protection: Yes
Installation type: Surface mounting
Power element type: CR123A
Power: 3 V
Power element life: Up to 7 years
Operating temperature range: from 0°C to +50°C
Permissible humidity: up to 90%.
INCLUDED: AJAX Break detector; External terminal; CR123A battery; Mounting kit; Instructions.
-
