Ajax DoorProtect Black

SKU:AJAX-7062
Manufacturer:Ajax Systems Inc
Ajax DoorProtect Black
Image is for illustrative purposes only

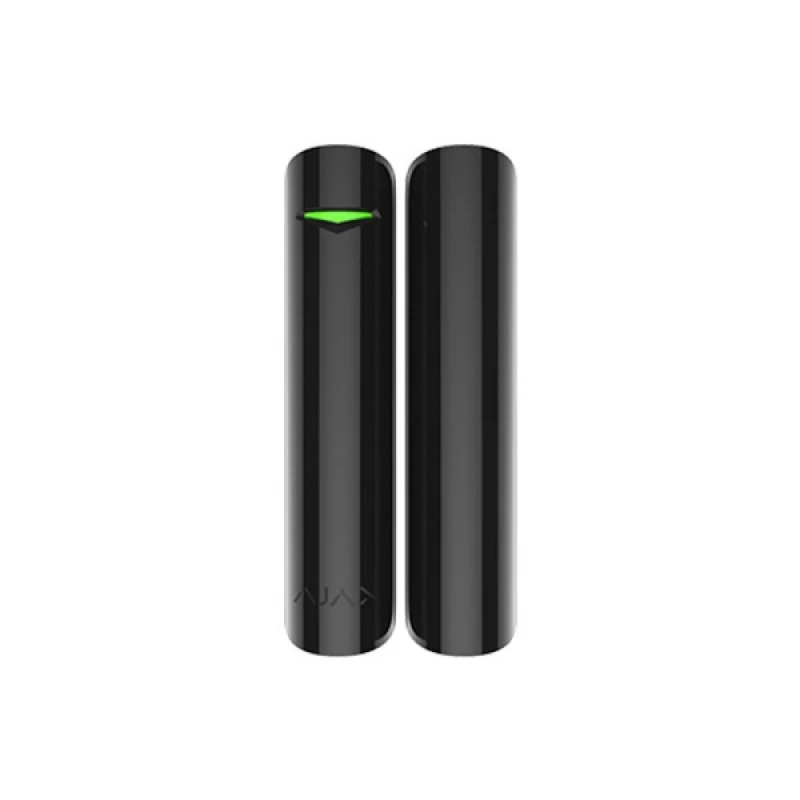

AJAX Wireless Door Sensor Black
The AJAX DoorProtect wireless opening detector notifies of the first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house. The wireless connection allows the detectors to monitor multiple floors of a building simultaneously.

Extensive capabilities
* Operating range up to 2000 meters in an open area or through multiple floors of a building/business center
* Can be connected to an external opening detector
* Integrates with third-party security systems via uartBridge and ocBridge / ocBridge Plus modules

Protection against interruptions and sabotage
* Authentication to prevent forgery
* Tamper-resistant housing
* Sensor checks at intervals starting from 12 seconds

Protection against jamming
* Communication channel encryption

Trouble-free operation
* The high-end British element does not stick and can withstand more than 1 million openings
* The detector maintains two-way communication with the control panel for testing and tuning
* Energy saving by adjusting signal transmission power according to distance from the control panel
* Battery life of up to 7 years with one battery for minimal pings

Easy professional installation
* Installation with SmartBracket mountings without disassembling the housing
* A powerful magnet allows installation with an offset of up to 2 cm from the main module
* Signal quality and detection zone are tested remotely
* Connection to Ajax Hub with QR code in one click

A masterpiece of engineering
* Miniature dimensions and a powerful magnet allow AJAX DoorProtect sensors to protect all types of windows and doors
Product: AJAX Wireless DoorProtect Black
Type of detector: Wireless
Installation method: Surface mount
Activation threshold: Small magnet — 1 cm, Big magnet — 2 cm
Usage possibilities: Indoors
Connector for wired detectors: Available
Protection against unauthorized opening of the housing: Tamper
Radio signal power: 20 mW
Protocol to the hub: Jeweller (868 or 915 MHz depending on the country)
Maximum distance between detector and hub: 2000 m (open space)
Battery: CR123A type battery
Power supply: 3 V
Battery life: Up to 7 years
Operating temperature: From 0° C to + 50° C
Humidity: Up to 80%
Dimensions: 20x90 mm (0.78x3.54 in)
Included: -Opening detector -CR123A battery (pre-installed) -2 magnets -Terminal -Mounting kit -User manual
Ajax DoorProtect_EE.PDF553.9KB
Download
