SKU:AJAX-11790.01.BL1
Manufacturer:
Ajax Systems Inc
New
Image is for illustrative purposes only

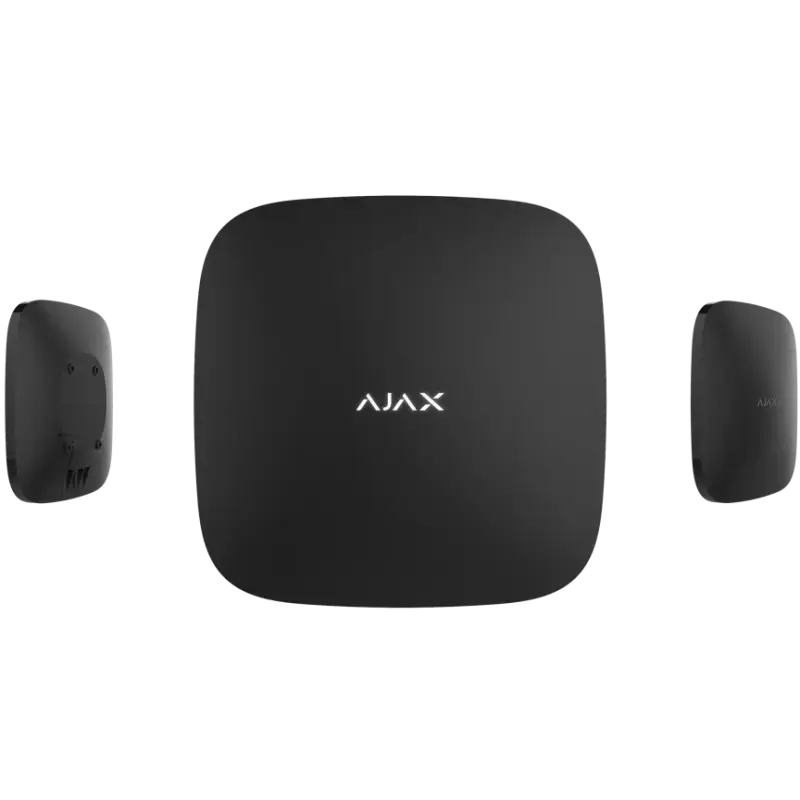

Hub 2 Plus Jeweller is a central control panel of the Ajax security system that ensures reliable alarm transmission through four independent communication channels: Ethernet, Wi-Fi, and two SIM cards supporting high-speed LTE networks. The device provides seamless switching between channels in seconds, guaranteeing constant connection with the monitoring station and users. It supports MotionCam detectors for photo verification of alarms, delivering the first image in just 9 seconds even when using cellular data.
The hub is powered by OS Malevich, a real-time operating system that is immune to viruses and protected against cyberattacks. This advanced hardware features a processor 4.5 times faster than Hub 2 and 8 times more flash memory, allowing it to manage complex systems with up to 200 devices, 100 cameras, and 64 automation scenarios.
The system uses Jeweller and Wings radio protocols for secure, two-way communication up to 2,000 meters. Security management is performed via mobile and desktop apps, where users can configure settings, create schedules, and monitor events. In case of power failure, the built-in backup battery maintains system protection for up to 15 hours.
The hub is powered by OS Malevich, a real-time operating system that is immune to viruses and protected against cyberattacks. This advanced hardware features a processor 4.5 times faster than Hub 2 and 8 times more flash memory, allowing it to manage complex systems with up to 200 devices, 100 cameras, and 64 automation scenarios.
The system uses Jeweller and Wings radio protocols for secure, two-way communication up to 2,000 meters. Security management is performed via mobile and desktop apps, where users can configure settings, create schedules, and monitor events. In case of power failure, the built-in backup battery maintains system protection for up to 15 hours.
Communication channels: Ethernet, Wi-Fi, 2x SIM (LTE/3G/2G)
Maximum number of devices: 200
Maximum number of users: 200
Maximum number of security groups: 25
Maximum number of scenarios: 64
Video surveillance support: up to 100 cameras or DVRs
Radio signal range: up to 2,000 m (open area)
Maximum radio network coverage: up to 35 km² (with 5 ReX)
Communication protocols: Jeweller (events), Wings (photos)
Photo delivery time: 9 seconds
Device polling interval: 12–300 s
Connection loss detection: 60 seconds
Operating system: OS Malevich
Power supply: 110–240 V AC
Backup battery: Li-Ion 3 A·h, up to 15 hours of battery life
Operating temperature: -10°C to +40°C
Dimensions: 163 × 163 × 36 mm
Weight: 351 g
What's included: Hub 2 Plus Jeweller control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
User manual
Maximum number of devices: 200
Maximum number of users: 200
Maximum number of security groups: 25
Maximum number of scenarios: 64
Video surveillance support: up to 100 cameras or DVRs
Radio signal range: up to 2,000 m (open area)
Maximum radio network coverage: up to 35 km² (with 5 ReX)
Communication protocols: Jeweller (events), Wings (photos)
Photo delivery time: 9 seconds
Device polling interval: 12–300 s
Connection loss detection: 60 seconds
Operating system: OS Malevich
Power supply: 110–240 V AC
Backup battery: Li-Ion 3 A·h, up to 15 hours of battery life
Operating temperature: -10°C to +40°C
Dimensions: 163 × 163 × 36 mm
Weight: 351 g
What's included: Hub 2 Plus Jeweller control panel
SmartBracket mounting panel
Power cable
Ethernet cable
Installation kit
User manual
