SKU:AJAX-MOTION OUTDOOR
Manufacturer:
Ajax Systems Inc
Image is for illustrative purposes only

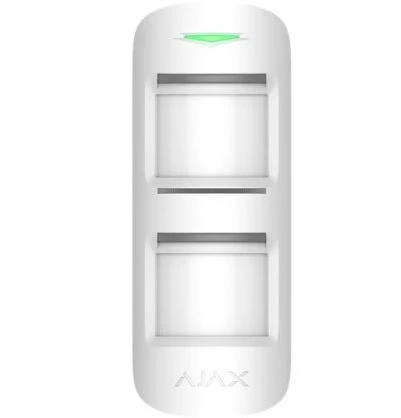

Enhance your property's security with our reliable wireless outdoor motion detector, designed for superior performance and intelligent false alarm protection. This robust device is built to withstand harsh outdoor conditions, ensuring dependable operation in all weather.
Key Features
- Intelligent False Alarm Protection: Minimizes unwanted alerts, providing accurate motion detection.
- Weather Resistant: Designed to operate effectively in low temperatures and is protected against dust and splashes.
- Tamper Resistance: Features authentication to prevent forgery, jamming detection with communication channels encryption, and a tampering alarm.
- Pet Immunity: Ignores pets with a height of up to 80 cm, reducing false alarms caused by animal movement.
- Long-Lasting Battery: Operates for up to 5 years without battery replacement, offering long-term convenience.
Motion Detection
- Detects movement at a distance of up to 3–15 meters, providing comprehensive coverage of your property.
Classification: Electro-optical radio channel security detector
Type of detector: Wireless
Installation method: Outdoors/indoors
Compatibility: Operates only with Hub, Hub Plus, Hub 2 and ReX
Sensing element: Two PIR sensors
Alarm signal delivery time: 0.15 s
Motion detection: distance
Adjustable, up to 3—15 m: Detection angles
Horizontal — 90°: Sensitivity
Adjustable, 3 levels: Recommended
installation height: 0.8—1.3 m
Pet immunity: Weight — not relevant Height — up to 80 cm
Power supply: Power supply: 2 x CR123A battery Power supply voltage: 3 V
Battery life — up to 5 years: Mains supply: DC 12 V±20%
Communication range with central unit: up to 1,200 m in an open space
Two-way communication between devices: Operating frequencies — 868.0−868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption: based on AES algorithm
Detector polling period: 12−300 s
Temperature sensor: Available
Operating temperature range: -25°С to +60°С
Permissible humidity: Up to 95%
Anti-sabotage: Grade 3 anti-masking Protection against fraud
Jamming detection: Tamper-resistant
Remote set up and testing: +
Dimensions: 184x70x65 mm
Weight: 318 g
