SW80D Active Subwoofer 160W
SKU:TR100.434OS
Manufacturer:Audizio
New
The Audizio SW80D is a powerful active subwoofer designed to deliver deep, immersive bass for enhanced audio systems. It features a high-performance 160W Class D amplifier and an 8-inch (20 cm) long-throw driver.
Key Features
- Integrated 160W Class D amplifier for efficient power delivery.

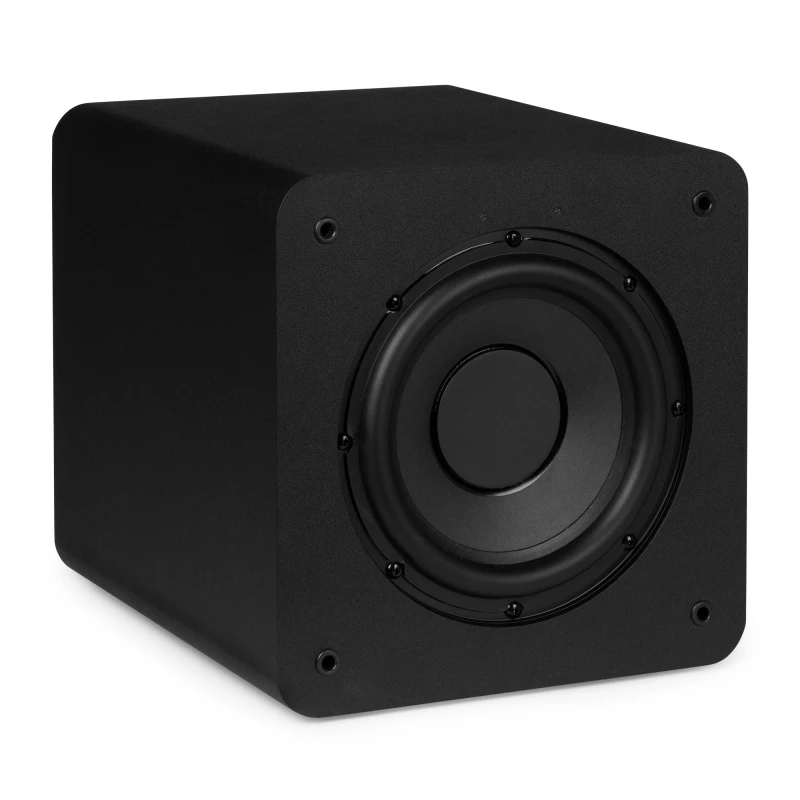

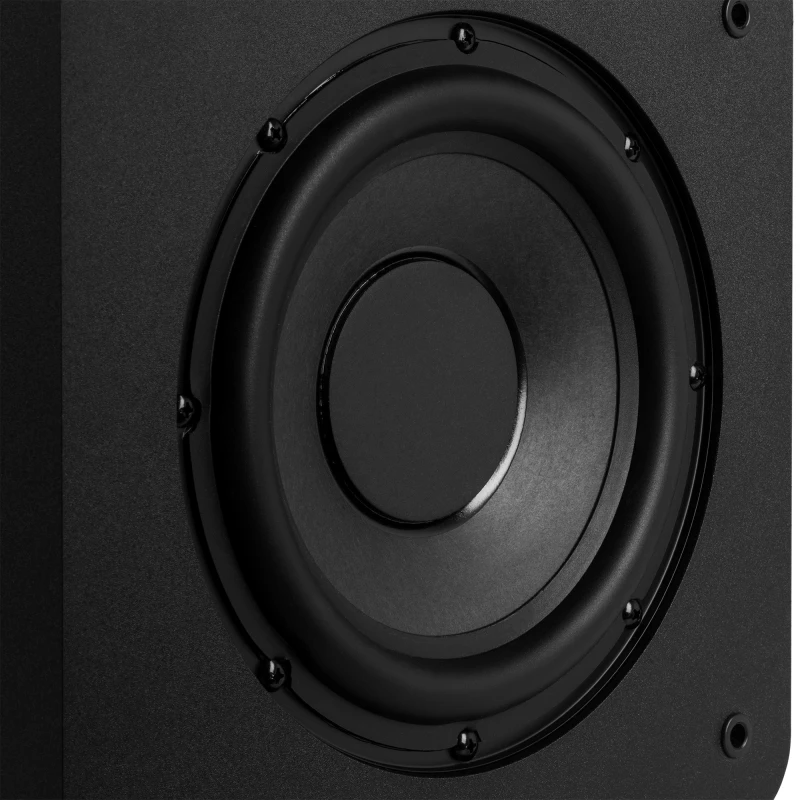

- High-performance 8-inch (20 cm) cast long-throw low-frequency driver.

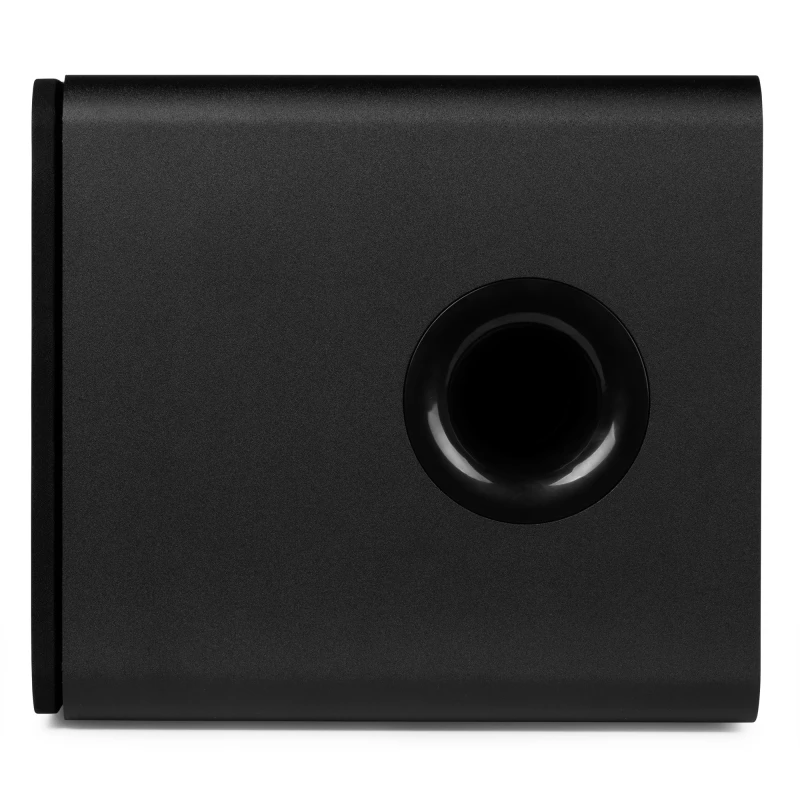

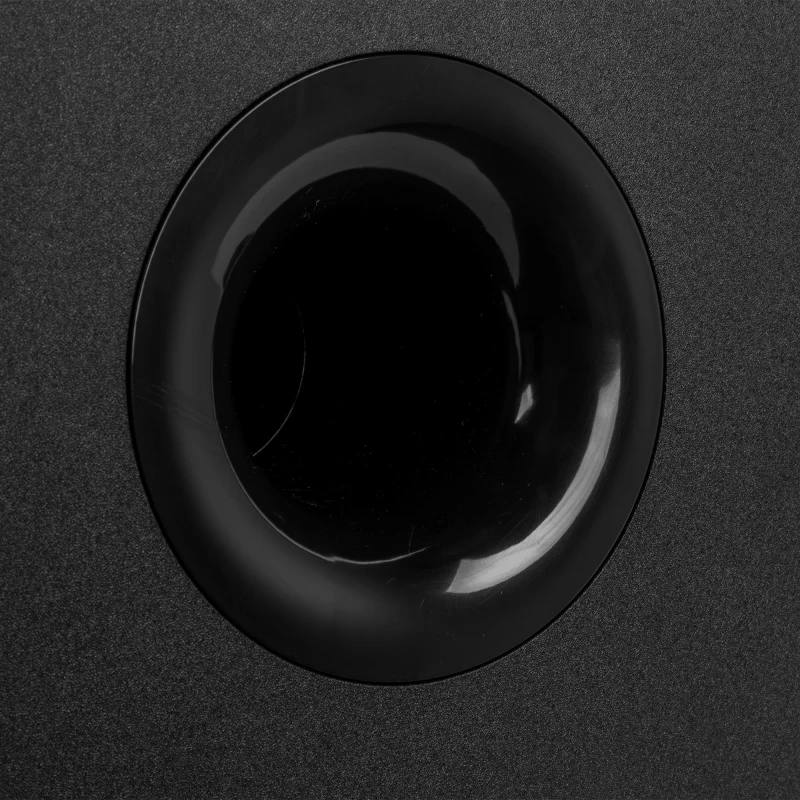

- Low-resonance Bass Reflex enclosure with a front-firing driver configuration.

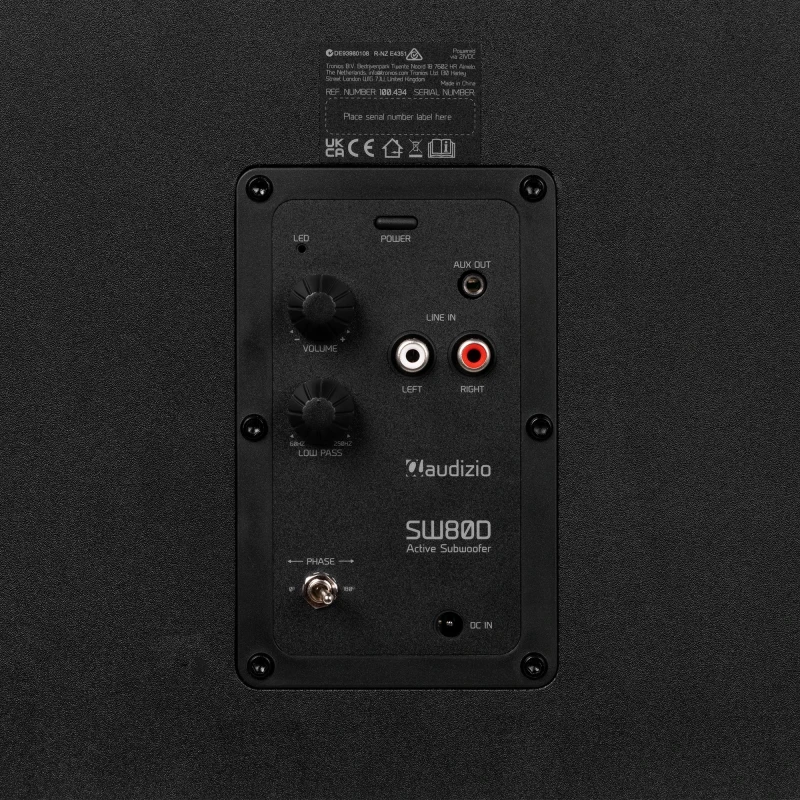

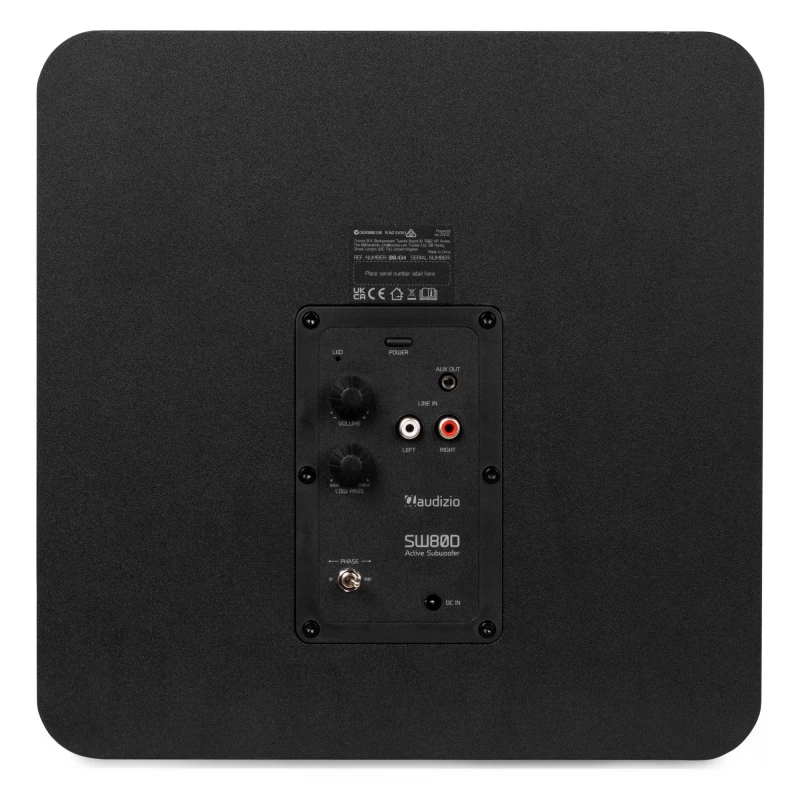

- Adjustable crossover frequency (60 – 250 Hz) for balanced system integration.
- Selectable phase control (0° or 180°) for optimal sound alignment.

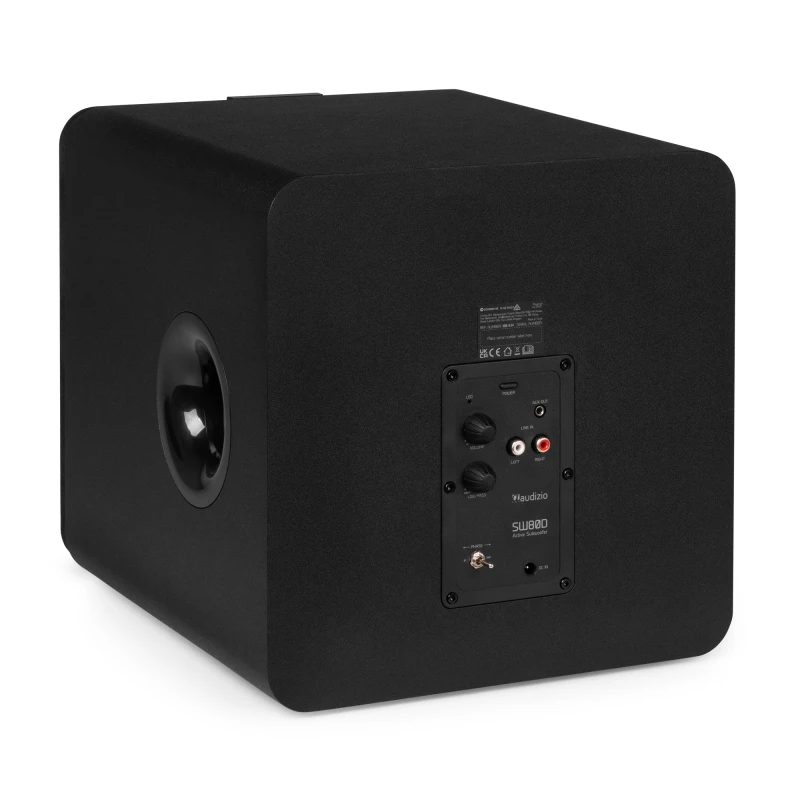

- Stereo RCA input for simple connection to receivers or amplifiers.
- Dedicated volume adjustment control.
- Elegant black laminated finish with silicone damping feet for vibration isolation and clean bass reproduction.

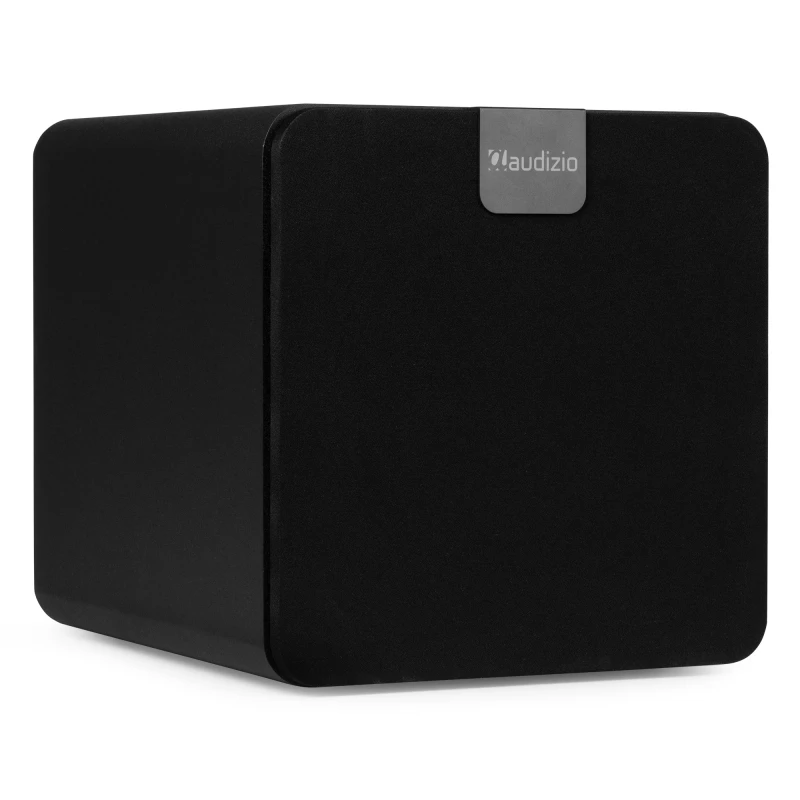

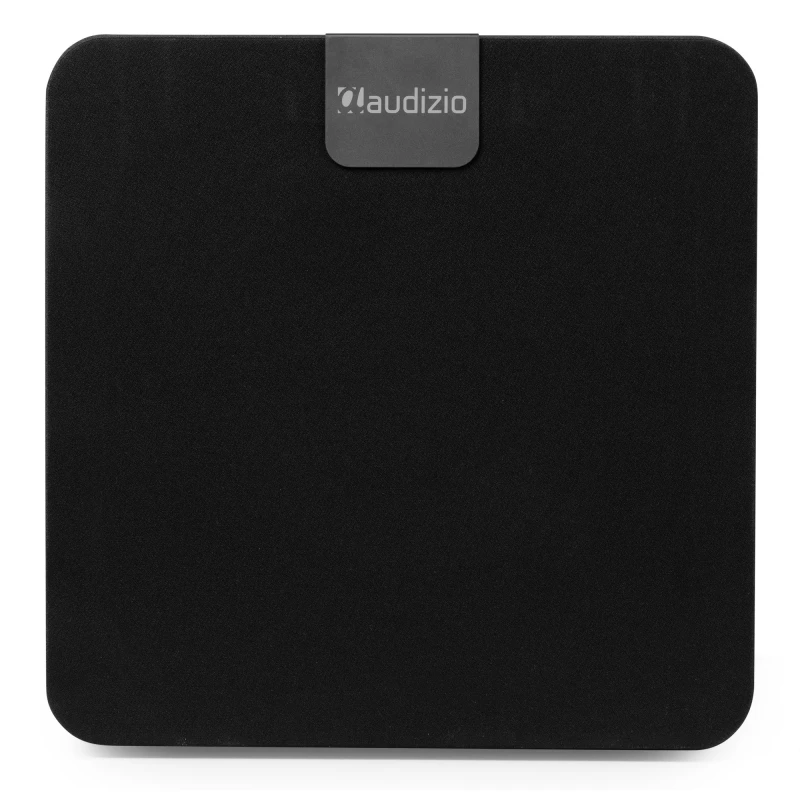

- Includes a removable front grille.
Applications
This subwoofer is perfectly suited for both music enthusiasts and home theater setups requiring precise and powerful low-frequency sound reproduction.
Key Features
- Integrated 160W Class D amplifier for efficient power delivery.
- High-performance 8-inch (20 cm) cast long-throw low-frequency driver.
- Low-resonance Bass Reflex enclosure with a front-firing driver configuration.
- Adjustable crossover frequency (60 – 250 Hz) for balanced system integration.
- Selectable phase control (0° or 180°) for optimal sound alignment.
- Stereo RCA input for simple connection to receivers or amplifiers.
- Dedicated volume adjustment control.
- Elegant black laminated finish with silicone damping feet for vibration isolation and clean bass reproduction.
- Includes a removable front grille.
Applications
This subwoofer is perfectly suited for both music enthusiasts and home theater setups requiring precise and powerful low-frequency sound reproduction.
Amount of subwoofers: 1
Crossover frequency: Adjustable (60 ~ 250Hz)
Diameter subwoofer: 8"
Dimensions (L x W x H): 314 x 280 x 284 mm
Frequency response: 60Hz - 250Hz
Impedance: 4 Ohm
Input connections: RCA
Output connections: 3.5mm Jack
Output power (Max): 160W
Output power (RMS): 80W
Phase control: Selectable (0° or 180°)

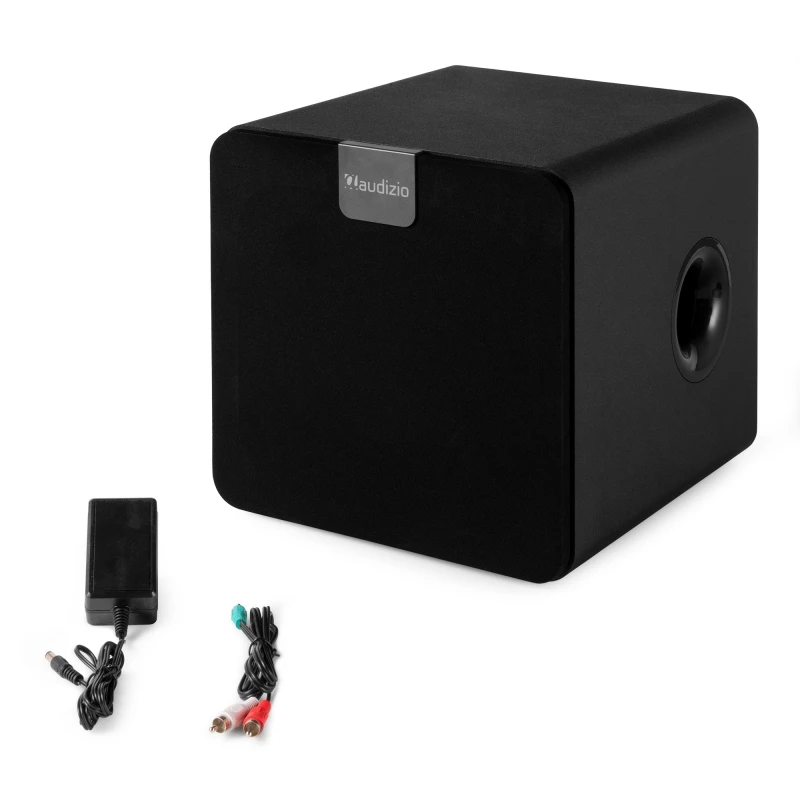

Power supply: 100-240VAC 50/60Hz (24V adapter)
SPL @ 1W/1m: 88dB
Weight: 5.65 kg
Crossover frequency: Adjustable (60 ~ 250Hz)
Diameter subwoofer: 8"
Dimensions (L x W x H): 314 x 280 x 284 mm
Frequency response: 60Hz - 250Hz
Impedance: 4 Ohm
Input connections: RCA
Output connections: 3.5mm Jack
Output power (Max): 160W
Output power (RMS): 80W
Phase control: Selectable (0° or 180°)
Power supply: 100-240VAC 50/60Hz (24V adapter)
SPL @ 1W/1m: 88dB
Weight: 5.65 kg
-
