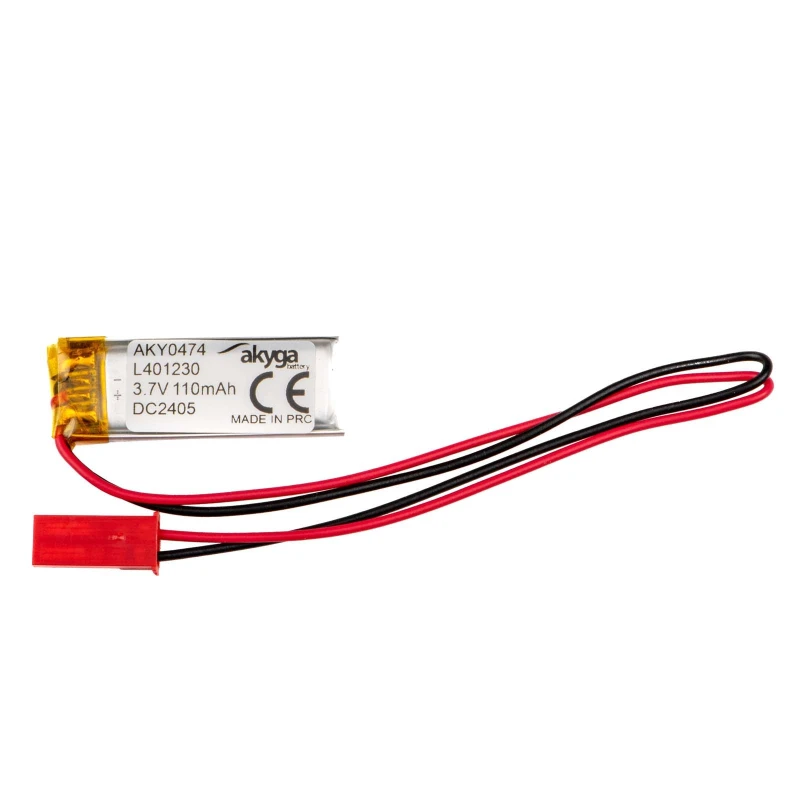

Li-Po Battery 3.7V 110mAh 4x12x30mm wires JST SYP-02T connector
SKU:AKY-LP401230
Manufacturer:Akyga
The Akyga AKY-LP401230 is a compact and lightweight 3.7V Lithium-polymer battery designed as a power source for various portable electronic devices.
Key Features
- Lithium-Polymer (Li-Po) technology
- Nominal Voltage: 3.7V
- Capacity: 110mAh
- Compact Dimensions: 4x12x30mm
- Equipped with wires and a JST SYP-02T-1 connector (2.54mm pitch, 2 contacts)
- Includes integrated PCB protection for safe operation
Applications
Suitable for use in portable electronic devices requiring a small and light power source.
Key Features
- Lithium-Polymer (Li-Po) technology
- Nominal Voltage: 3.7V
- Capacity: 110mAh
- Compact Dimensions: 4x12x30mm
- Equipped with wires and a JST SYP-02T-1 connector (2.54mm pitch, 2 contacts)
- Includes integrated PCB protection for safe operation
Applications
Suitable for use in portable electronic devices requiring a small and light power source.
Connector Type: JST SYP-02T-1 (2.54mm, 2 pins)
Cycle Life: 500 cycles (to 80% capacity)
Dimensions (max): 4mm x 12mm x 30.5mm
Discharge Cut-off Voltage: 3.0V
Features: PCB protection
Full Charge Voltage: 4.2V
Maximum Charge Current: 1C
Maximum Discharge Current: 1C
Nominal Capacity: 110mAh
Nominal Voltage: 3.7V
Operating Temperature (Charge): 0°C to +45°C
Operating Temperature (Discharge): -20°C to 60°C
Self-discharge: > 90% residual capacity (after 30 days)
Storage Temperature: -20°C to +45°C
Weight: 4g
Cycle Life: 500 cycles (to 80% capacity)
Dimensions (max): 4mm x 12mm x 30.5mm
Discharge Cut-off Voltage: 3.0V
Features: PCB protection
Full Charge Voltage: 4.2V
Maximum Charge Current: 1C
Maximum Discharge Current: 1C
Nominal Capacity: 110mAh
Nominal Voltage: 3.7V
Operating Temperature (Charge): 0°C to +45°C
Operating Temperature (Discharge): -20°C to 60°C
Self-discharge: > 90% residual capacity (after 30 days)
Storage Temperature: -20°C to +45°C
Weight: 4g
