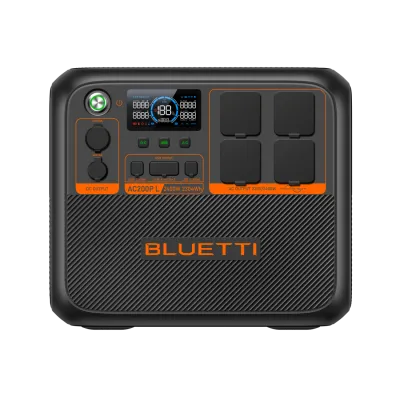

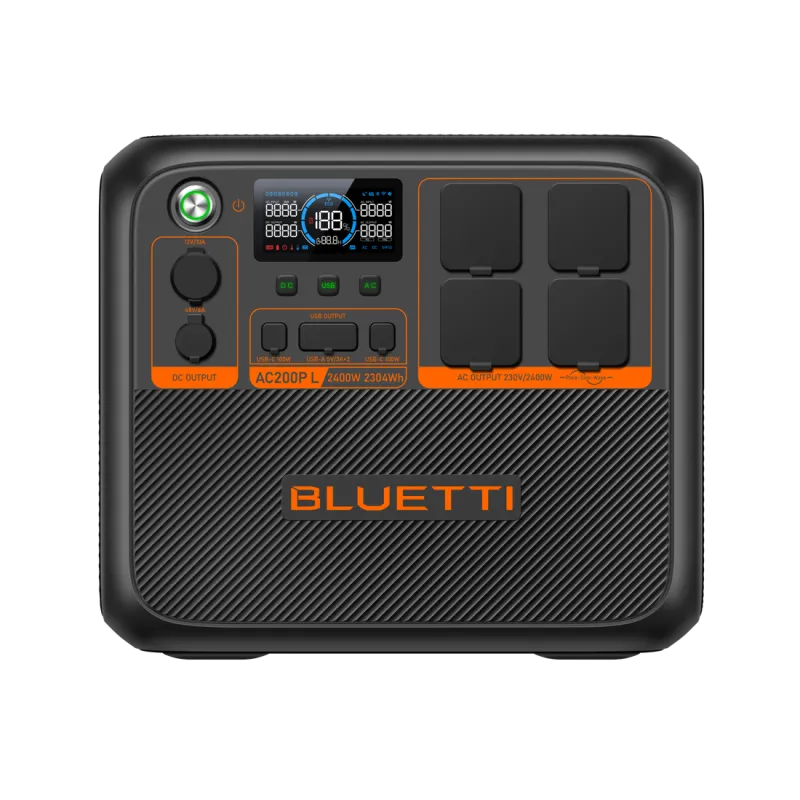

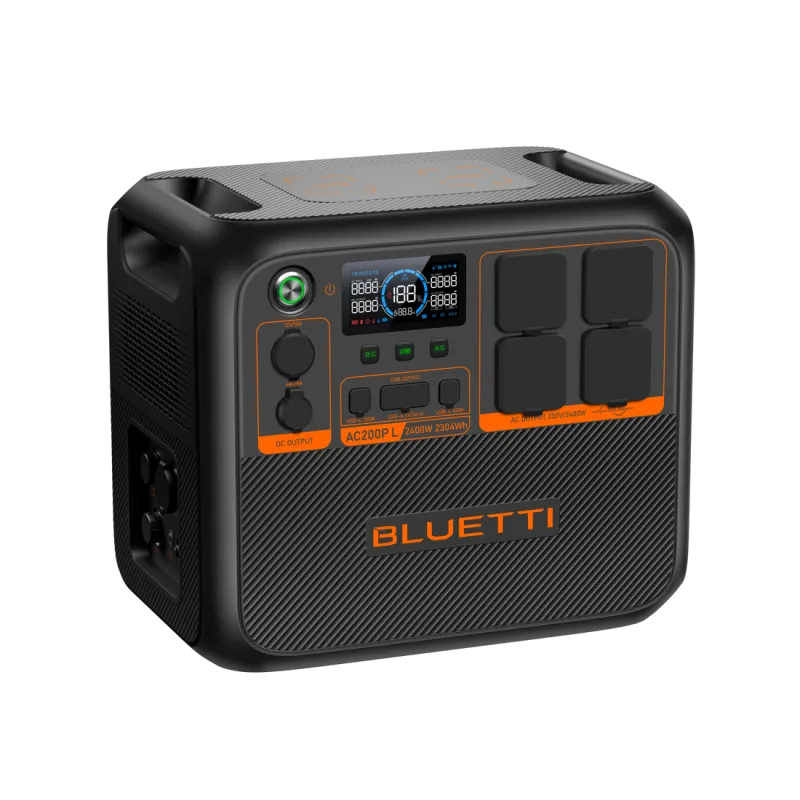

BLUETTI AC200PL Expandable Power Station
SKU:AC200PL
Image is for illustrative purposes only

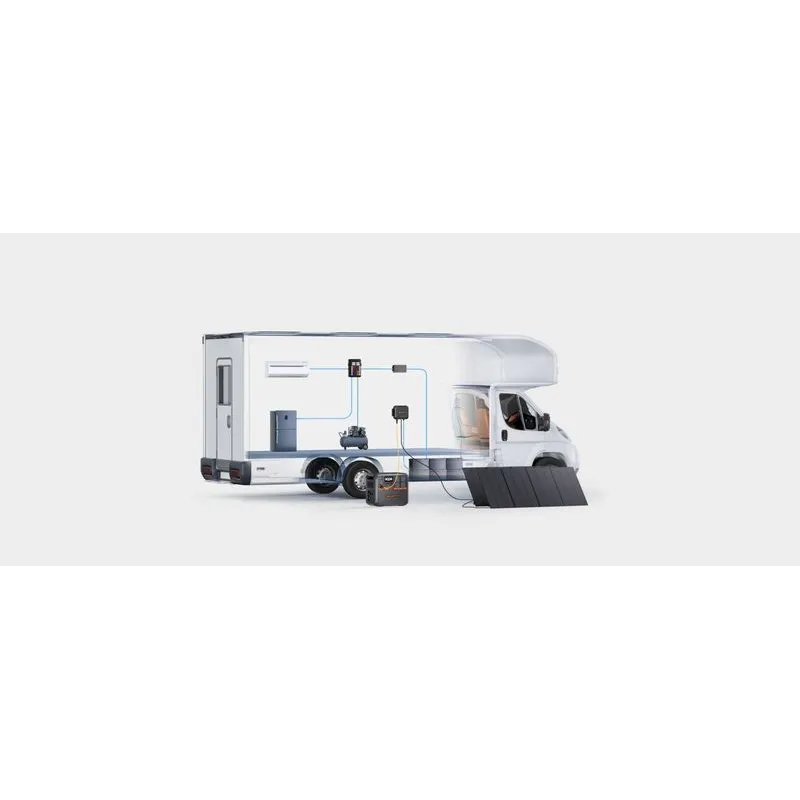

The BLUETTI AC200PL is an expandable portable power station, ideal for RVs, home backup, and off-grid living.
Key Features
- Durable LiFePO4 Battery: Integrated 2304 Wh capacity, offering over 3000 cycles to 80% for long-term reliability.
- Powerful AC Output: Delivers 2400 W continuous AC output, with a Power Lifting mode (app controlled) boosting to 3600 W for heating appliances.
- Rapid Recharging: Achieves 80% in 1 hour, or fully in approximately 1.5 hours with 2400 W turbocharging. Supports up to 1200 W solar input for a full charge in ~2.5 hours.
- Versatile Connectivity: Features four 230V AC outlets, two 100W USB-C, two 18W USB-A, a 12V/10A car outlet, a 48V/8A RV outlet, and two 15W wireless charging pads.
- Expandable Capacity: Boosts up to an impressive 8448 Wh by connecting BLUETTI B210P, B230, or B300 expansion batteries.
- Smart & Safe Operation: Equipped with an MPPT controller, BMS, pass-through charging, and intelligent app control via Bluetooth/Wi-Fi.
Specifications
- Weight: Approximately 28.8 kg
- Dimensions: 420 mm × 280 mm × 366.5 mm
Key Features
- Durable LiFePO4 Battery: Integrated 2304 Wh capacity, offering over 3000 cycles to 80% for long-term reliability.
- Powerful AC Output: Delivers 2400 W continuous AC output, with a Power Lifting mode (app controlled) boosting to 3600 W for heating appliances.
- Rapid Recharging: Achieves 80% in 1 hour, or fully in approximately 1.5 hours with 2400 W turbocharging. Supports up to 1200 W solar input for a full charge in ~2.5 hours.
- Versatile Connectivity: Features four 230V AC outlets, two 100W USB-C, two 18W USB-A, a 12V/10A car outlet, a 48V/8A RV outlet, and two 15W wireless charging pads.
- Expandable Capacity: Boosts up to an impressive 8448 Wh by connecting BLUETTI B210P, B230, or B300 expansion batteries.
- Smart & Safe Operation: Equipped with an MPPT controller, BMS, pass-through charging, and intelligent app control via Bluetooth/Wi-Fi.
Specifications
- Weight: Approximately 28.8 kg
- Dimensions: 420 mm × 280 mm × 366.5 mm
12V DC Outlet: 1 × 12V/10A (Car outlet, regulated)
48V DC Outlet: 1 × 48V/8A (RV Outlet)
AC Charging Cable (Turbo Charging) - 80% Charge: ≈1 Hour
AC Charging Cable (Turbo Charging) - Full Charge: ≈1.5 Hours
AC Outlets: 4 × 230V/10.5A, 2400W In Total
AC Power Input (Turbo Mode): 2400W Max
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Capacity: 2304Wh (45Ah)
Car Input: 12/24V from Cigarette Lighter Port
Charging Temperature: 0°C-40°C / 32°F-104°F
Dimensions (L × W × D): 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in
Discharging Temperature: -20°C-40°C / -4°F-104°F
Expandable Capacity: Up to 8448Wh (with B210P, B230, or B300 expansion batteries)
Inverter Type: Pure Sine Wave
Life Cycles: 3,000+ Cycles to 80% Original Capacity
Max Input: 2400W
Pass-through Charging: Yes
Solar Input: 1200W Max, 12V-145VDC, 15A
Solar Panel(s) (1200W) - Charge Time: ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Storage Temperature: -20°C-40°C / -4°F-104°F
Surge Power: 2500W (3600W with Power Lifting Mode)
USB-A Port: 2 × 18W (Each Port)
USB-C Port: 2 × 100W Max
Warranty: 5 Years
Weight: About 28.8kg / 63.5lbs
Wireless Charging Ports: 2 × 15W
48V DC Outlet: 1 × 48V/8A (RV Outlet)
AC Charging Cable (Turbo Charging) - 80% Charge: ≈1 Hour
AC Charging Cable (Turbo Charging) - Full Charge: ≈1.5 Hours
AC Outlets: 4 × 230V/10.5A, 2400W In Total
AC Power Input (Turbo Mode): 2400W Max
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Capacity: 2304Wh (45Ah)
Car Input: 12/24V from Cigarette Lighter Port
Charging Temperature: 0°C-40°C / 32°F-104°F
Dimensions (L × W × D): 420mm × 280mm × 366.5mm / 16.5in × 11in × 14.4in
Discharging Temperature: -20°C-40°C / -4°F-104°F
Expandable Capacity: Up to 8448Wh (with B210P, B230, or B300 expansion batteries)
Inverter Type: Pure Sine Wave
Life Cycles: 3,000+ Cycles to 80% Original Capacity
Max Input: 2400W
Pass-through Charging: Yes
Solar Input: 1200W Max, 12V-145VDC, 15A
Solar Panel(s) (1200W) - Charge Time: ≈2.5 Hours (With prime sunshine, ideal orientation and low temperature)
Storage Temperature: -20°C-40°C / -4°F-104°F
Surge Power: 2500W (3600W with Power Lifting Mode)
USB-A Port: 2 × 18W (Each Port)
USB-C Port: 2 × 100W Max
Warranty: 5 Years
Weight: About 28.8kg / 63.5lbs
Wireless Charging Ports: 2 × 15W
