SKU:DJ-D15E

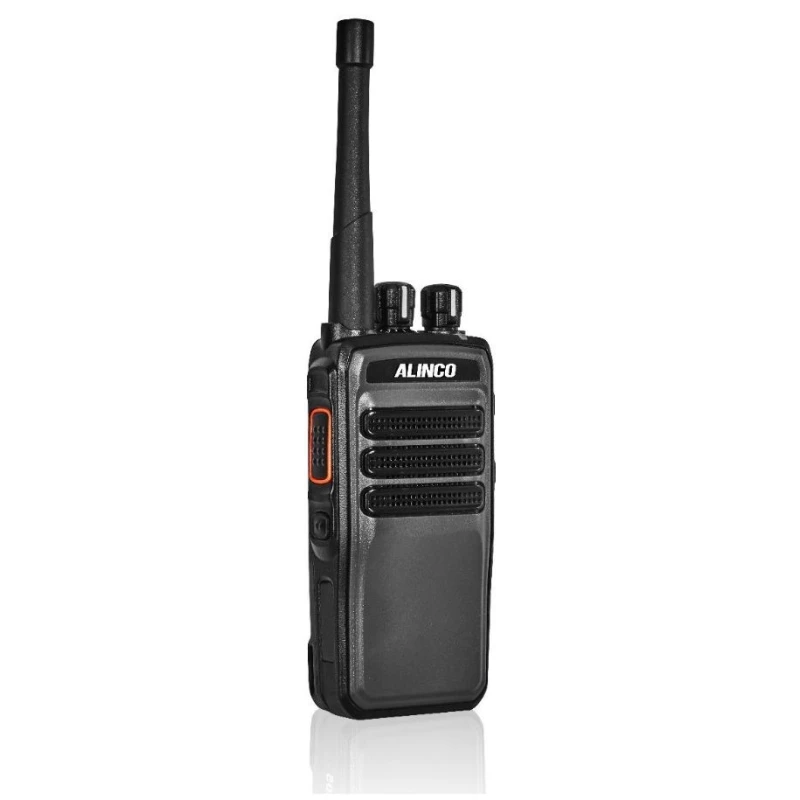

Image is for illustrative purposes only
Until December 31, 2025, a free headset (EM-2027/I2) is included.
Pre-programmed hunting channels.
A robust and reliable radio that meets user demands. The Alinco DJ-D15 is from a series of durable DMR handheld transceivers packed with features that make it an ideal choice for the professional user. The radio boasts a high-quality design, rugged construction, outstanding audio clarity, and receiver specifications ensure the best possible performance and maximum communication range.
Pre-programmed hunting channels.
A robust and reliable radio that meets user demands. The Alinco DJ-D15 is from a series of durable DMR handheld transceivers packed with features that make it an ideal choice for the professional user. The radio boasts a high-quality design, rugged construction, outstanding audio clarity, and receiver specifications ensure the best possible performance and maximum communication range.
Dust and splash resistance: IP54
Frequency range: 136-174 MHz
Number of channels: 256
Zones: 16
Channel spacing: analog: 12.5 kHz / digital: 12.5 kHz
Operating voltage: 7.5 V DC ±20%
Suitable operating temperature: -30°C to +60°C
Frequency stability: ± 1.5 ppm
Antenna impedance: 50 Ω
Approximate dimensions: (width x length x height) with battery / without antenna: 54.0 x 116.0 x 31.0 mm
Weight with battery and antenna: 275 g
Transmitter:
Output power: 5 W
Radiation: less than 1 GHz: -36dBm / more than 1 GHz: -30dBm
FM noise (analog): 25 kHz: 45 dB / 12.5 kHz: 40 dB
Audio codec: AMBE-2™
Receiver:
Sensitivity (analog / 12 dB SINAD): 0.25 μV
Sensitivity (digital / BER): 0.25 μV (5%)
Intermodulation: -65 dB
Receiver spurious: 70 dB
Audio distortion: Typically less than 3%
Audio output: 100 mW / 16 Ω
Frequency range: 136-174 MHz
Number of channels: 256
Zones: 16
Channel spacing: analog: 12.5 kHz / digital: 12.5 kHz
Operating voltage: 7.5 V DC ±20%
Suitable operating temperature: -30°C to +60°C
Frequency stability: ± 1.5 ppm
Antenna impedance: 50 Ω
Approximate dimensions: (width x length x height) with battery / without antenna: 54.0 x 116.0 x 31.0 mm
Weight with battery and antenna: 275 g
Transmitter:
Output power: 5 W
Radiation: less than 1 GHz: -36dBm / more than 1 GHz: -30dBm
FM noise (analog): 25 kHz: 45 dB / 12.5 kHz: 40 dB
Audio codec: AMBE-2™
Receiver:
Sensitivity (analog / 12 dB SINAD): 0.25 μV
Sensitivity (digital / BER): 0.25 μV (5%)
Intermodulation: -65 dB
Receiver spurious: 70 dB
Audio distortion: Typically less than 3%
Audio output: 100 mW / 16 Ω
-
