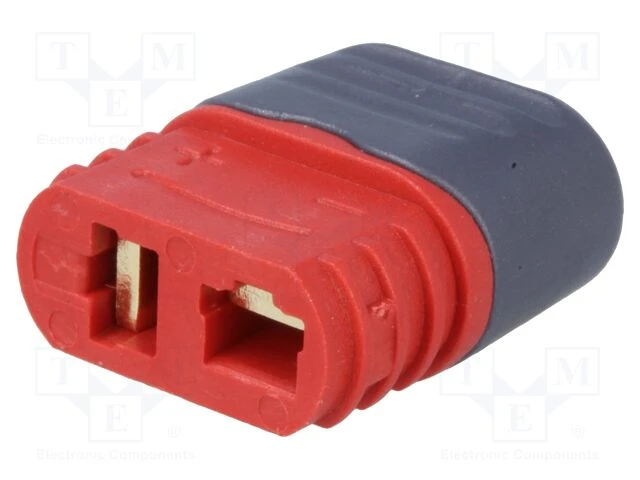

AM1015 power socket T-plug to cable 25A 500V

The AMASS AM1015SE-F is a high-quality female DC power connector, designed for cable mounting and soldered electrical connections, making it ideal for high-current applications. This reliable connector ensures a secure and efficient power transfer.

General Information
The AM1015SE-F is a member of the AM-1015 series of connectors from AMASS. It is also known as a T-plug or Deans-style connector. This connector is RoHS compliant, ensuring it meets environmental standards.

Key Features and Components
- High Current Capacity: Supports continuous current up to 25A and pulse current up to 50A.

- Durable Construction: Made with gold-plated brass contacts for low resistance and reliable connections, ensuring minimal power loss.

- Wide Operating Temperature: Functions effectively in temperatures ranging from -20°C to 120°C.

- Robust Design: Features a polyamide body with UL94V-0 flammability rating for enhanced safety and durability.

- Mechanical Endurance: Capable of withstanding up to 1000 connection/disconnection cycles.

- Easy to Solder: Designed for cable mounting with soldering, making it easy to create secure and lasting connections.

Technical Specifications
- Recommended Wire Size: 12AWG

- Soldering Temperature: 480°C for 4 seconds

Pros
- Battery Connections: Ideal for connecting batteries in RC hobbies (cars, boats, airplanes, helicopters) and electric bicycles.

- Power Supplies: Suitable for high-current connections in battery chargers, universal meters, and laboratory power supplies.

- Motorcycle and E-bike Controllers: Can be used as a controller connector for electric motorcycles and connection terminals in electric bicycles.

- Secure Connection: Ensures a secure and durable contact with low resistance, enhancing efficiency and reducing heat.
