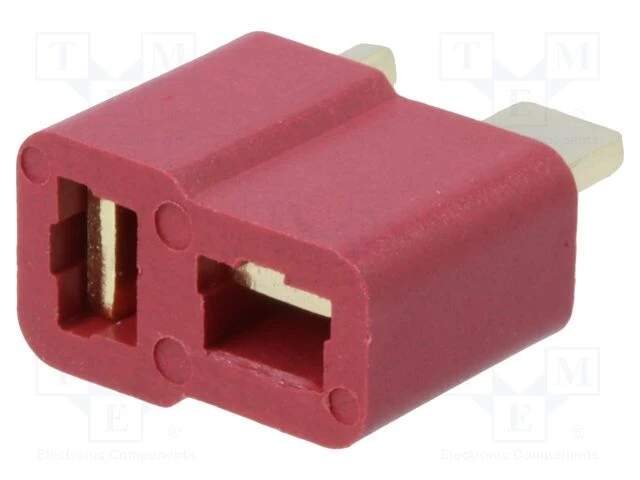

AM1015 power socket T-plug to board 25A 500V

The AM1015-F female DC power plug from AMASS offers a secure and reliable high-current connection for a variety of applications. It's an excellent choice for battery chargers, universal meters, laboratory power supplies, battery packs, electric motorcycles, and electric bicycles.

General Information
This connector is designed with enough space for alligator clips to fit, making it easy to connect to a charger. It eliminates the possibility of wrong polarity connections, ensuring safe operation. It is also suitable for Lipo Battery Motor connections. The recommended wire size is 12AWG (2.5mm²).

Key Features and Components
- High-Quality Connection: Ensures a secure and durable contact.

- Low Resistance: Features very low contact resistance (0.45mΩ) for efficient power transfer.

- High Current Capacity: Supports a continuous current of 25A and a pulse current of 50A.

- Rated Voltage: Designed for DC 500V applications.

- Durable Construction: Made with gold-plated brass contacts and a polyamide (PA66) body.

- Wide Operating Temperature: Functions reliably in temperatures ranging from -20°C to 120°C.

- Flame Retardant: UL94V-0 flammability rating ensures safety.

- Long Lifespan: Capable of 1000 connections/disconnections.

- Easy to Solder: Designed for easy cable mounting via soldering.

Technical Specifications
The AM1015-F is designed for DC 500V applications.

Pros
- Ideal for connecting batteries to power receivers in RC planes, drones, and other applications.

- Suitable for use in laboratory power supplies and high-current devices.

- Can be used as a controller connector for electric motorcycles and as a connection terminal in electric bicycles.

- A popular choice for hobbyists due to its reliability and ease of use.
